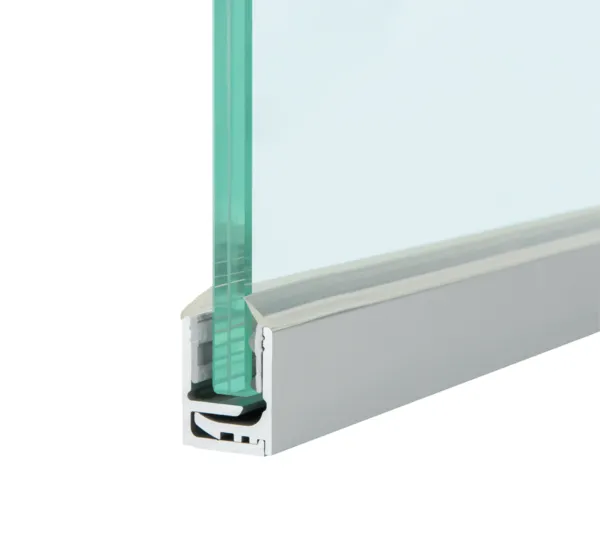

Frame profile in two parts

Product number: BO5201753
Freight forwarding

Description

With our one- and two-part frame profiles, fast and cost-effective installation is guaranteed. Thanks to a two-part construction with different latching positions and sealing variants, glass panes from 8 to 21.52 mm thick can be installed.

The two-part frame profile, already pre-drilled, can be mounted on the floor or wall. For mounting on the ceiling, we recommend the one-piece frame profiles, which prevent the panes from tilting and makes mounting safe and easy. Due to the use of high-quality plug-in seals, sealing with silicone is not necessary. With the matching cover caps, you create a high-quality finish to your room divider.

For plug-in seals matching the glass thickness, please refer to the installation instructions

Your Advantages

  • Simple clamp mounting
  • No glass processing required
  • Pre-drilled profiles
  • Three positions to accommodate glass thicknesses from 8 to 21.52 mm

Technical details

Colour
Stainless steel colour
Colour standard
C31
Glass thickness
8 - 21.52 mm
Glass thickness LSG
8.76 - 21.52 mm
Glass thickness TSG
8 - 12 mm
Height
30 mm
Length
5,000 mm
Material
Aluminium
Material thickness
2.5 mm
Model
Two-piece
Surface
Anodised
Surface treatment
E4 ground and brushed
Show all Show less

Downloads

pdf
Instructions
Wandanschluss-Klemmprofil - Clamp on frame profile - Instruction Manual

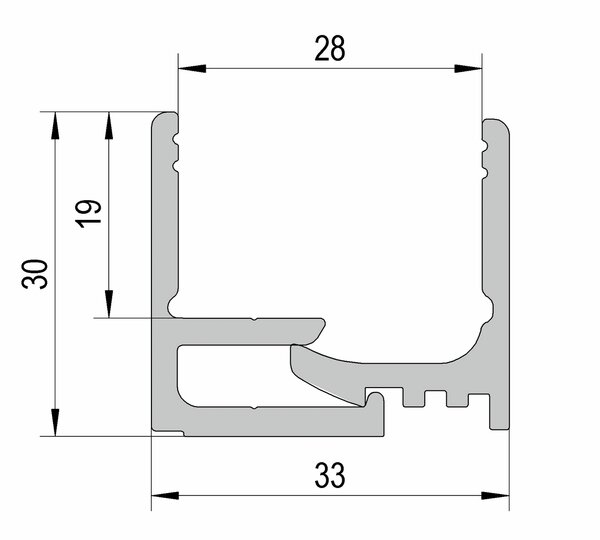

Drawings

jpg
jpg
jpg
jpg
pdf
BO-5201713N-5201714N-5201715N_00-C_Collection-Sealing_pdf.pdf
For more drawings please log in:

Discover more

Skip product gallery

Similar products

Frame profile in two parts
+ 5 Variations
Frame profile in two parts
Art. no.: BO5201751
  • Colour scheme: Stainless steel colour C31 anodised E4 ground and brushed
  • Glass thickness: 8 - 21.52 mm
  • Length: 3,000 mm
  • Model: Two-piece
Skip product gallery

This might also interest you

Glazing block transparent
+ 8 Variations
Glazing block transparent
Art. no.: BO5121002
  • Material thickness: 2 mm
  • Package contents: 100 Pieces
Frame profile one-piece
+ 8 Variations
Frame profile one-piece
Art. no.: BO5201641
  • Colour scheme: Stainless steel colour C31 anodised E4 ground and brushed
  • Glass thickness: 8 - 10.76 mm
  • Length: 5,000 mm
  • Model: One-piece
Frame profile one-piece
+ 8 Variations
Frame profile one-piece
Art. no.: BO5201643
  • Colour scheme: Stainless steel colour C31 anodised E4 ground and brushed
  • Glass thickness: 12 - 13.52 mm
  • Length: 5,000 mm
  • Model: One-piece
Plug-in seal
+ 2 Variations
Plug-in seal
Art. no.: BO5201713N
  • Glass thickness: 8 - 21.52 mm
  • Length: 5,000 mm
  • Material thickness: 3 mm
Plug-in seal
+ 2 Variations
Plug-in seal
Art. no.: BO5201714N
  • Glass thickness: 8 - 21.52 mm
  • Length: 5,000 mm
  • Material thickness: 4 mm
Plug-in seal
+ 2 Variations
Plug-in seal
Art. no.: BO5201715N
  • Glass thickness: 8 - 21.52 mm
  • Length: 5,000 mm
  • Material thickness: 5 mm
End caps frame profile
+ 3 Variations

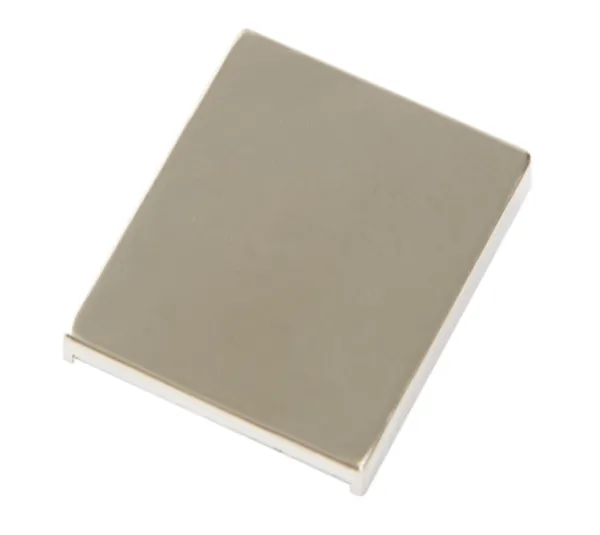

End caps frame profile
Art. no.: BO5201757
  • Colour: Stainless steel colour
  • For ratchet: 1
End caps frame profile
+ 3 Variations

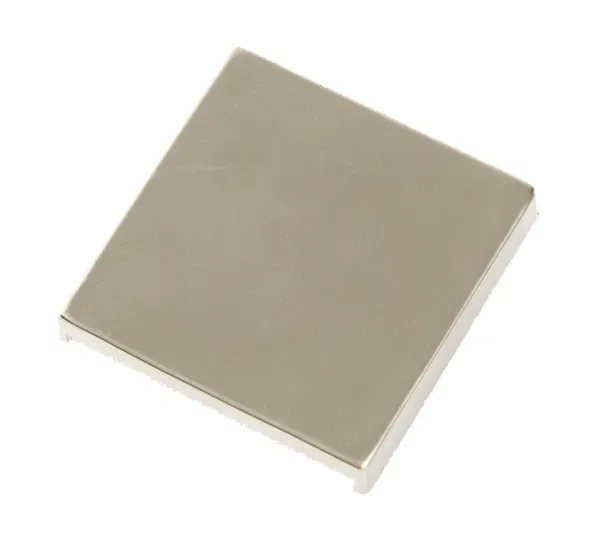

End caps frame profile
