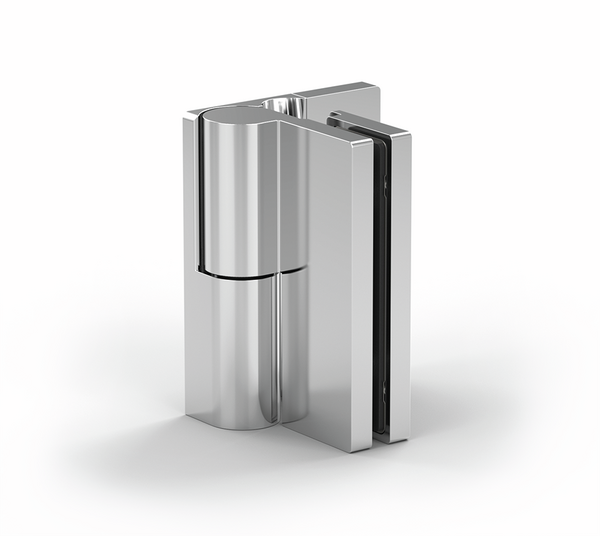

The Arta glass-wall 90° shower door hinge has a load-bearing capacity of 40 kg. Doors up to 1 x 2 m can be realised. The hinge has a lifting and lowering function and is designed for right-angled corner showers and recess showers.
The zero position can be adjusted using a screw located on the underside of the hinge. The raising/lowering function, with 5 mm lifting height, enables the shower door to close independently. Due to the lowering of the door when closing, a better seal can be achieved due to increased sealing pressure. The shower door hinge is ideal for barrier-free, level-access bathrooms. You can find suitable measurement sheets for your installation situation here.
About the product series Arta:
The Arta series impresses with its clear design and many features, such as the integrated raise/lower mechanism and the infinitely variable zero position adjustment. The extensive product range consists of many variants and is therefore suitable for a wide range of installations. Robust materials inside the hinge guarantee a long service life.
