Barcelona angle connector , glass-glass 90°

Product number: BO5219061

Description

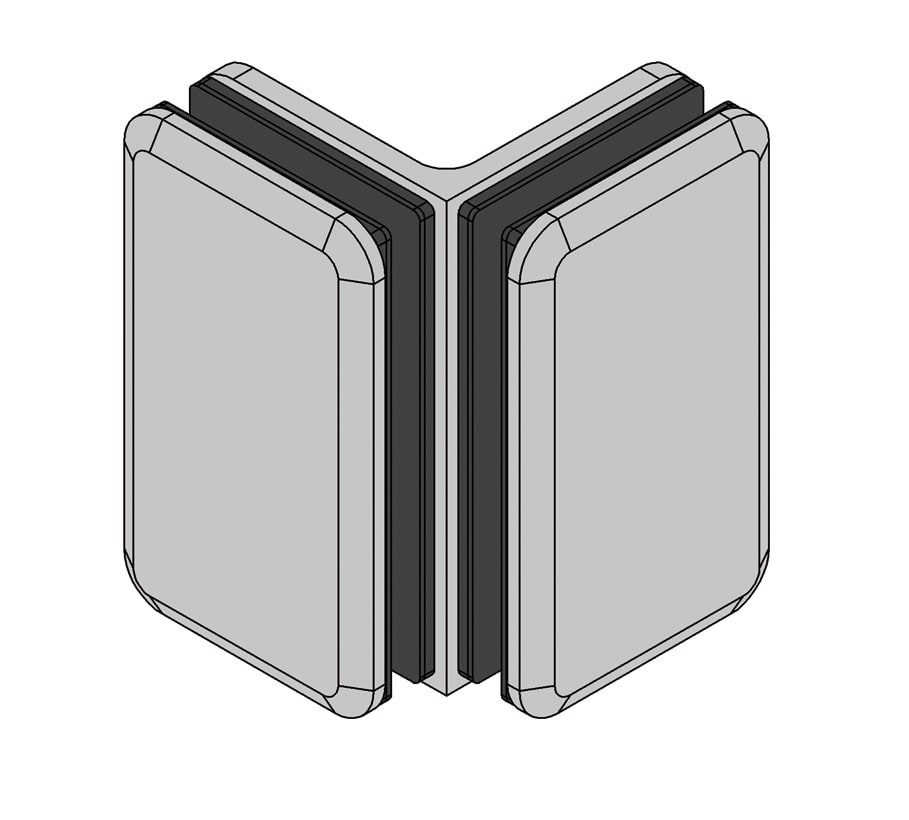

Barcelona 90° glass-glass angle connector for connecting two fixed glass side panels. Radii and large bevelled edges create an unusual design.

Only drill holes in the glass panes are required.

About the product series Barcelona:
Barcelona is the perfect shower door hinge series for the comfortable family bathroom. The harmonious design with rounded corners is versatile in use.

Show all Show less

Your Advantages

  • Only glass drilling required
  • Efficient assembly with just one tool

Technical details

Angle
90°
Bore diameter
18 mm
Colour
Stainless steel colour
Concealed wall fixings
No
Degree of gloss
Matt
Flush
No
Glass thickness TSG
8 - 12 mm
Material
Brass
Mounting type
Glass-Glass
Package contents
1 Piece
Product series
Barcelona
Rise/fall function
No
Screws on the belt concealed
No
Surface
Nickel-plated
Surface treatment
Brushed
Show all Show less

Downloads

pdf
Instructions
BO5219060 - BO5219061 - Barcelona - Instruction Manual
pdf
Instructions
Maintenance and Care Instructions

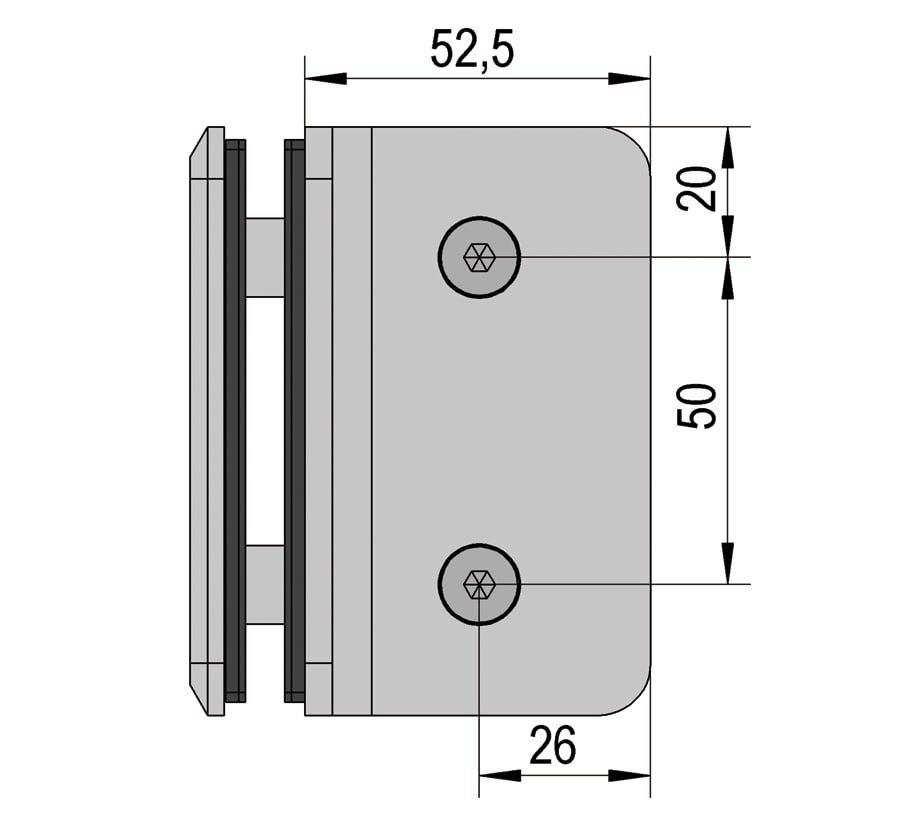

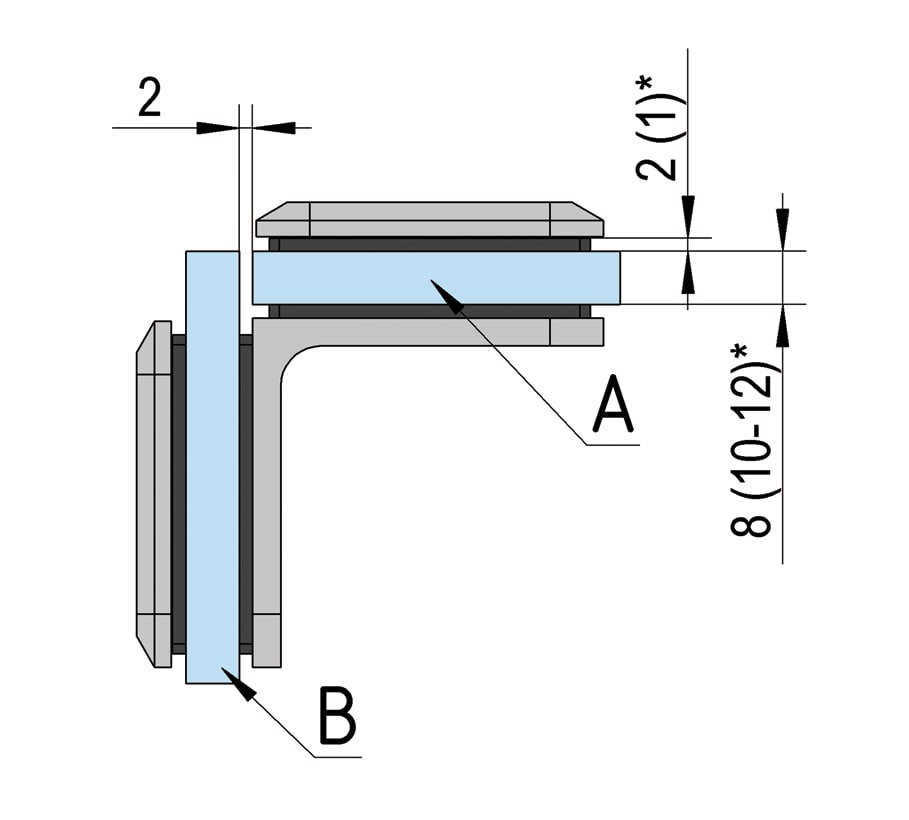

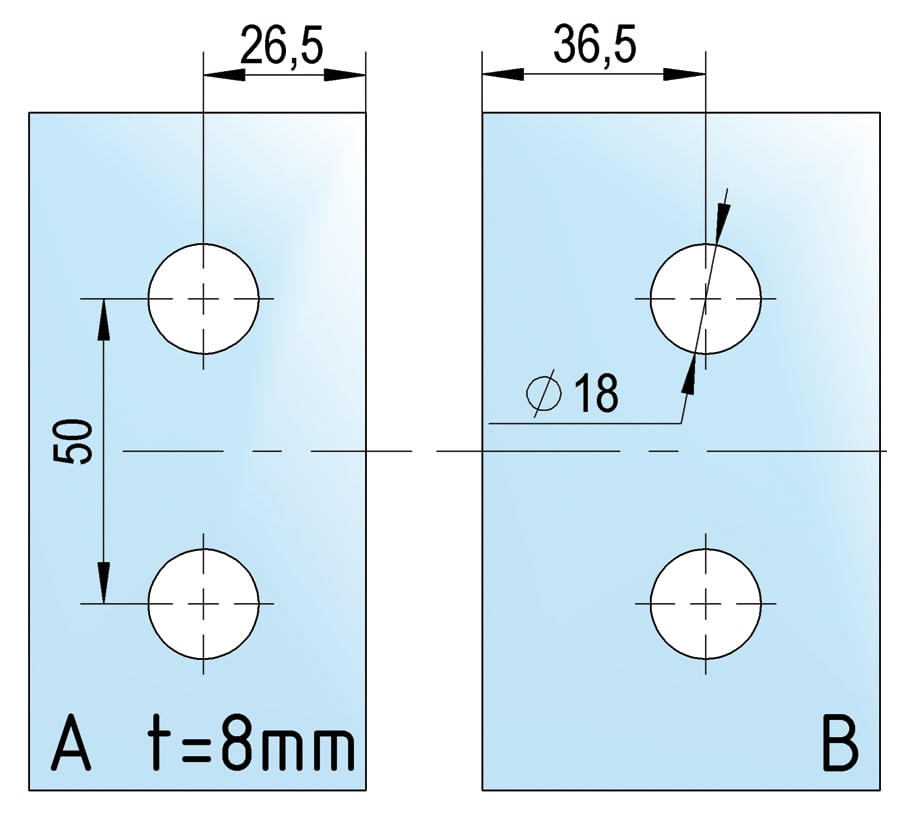

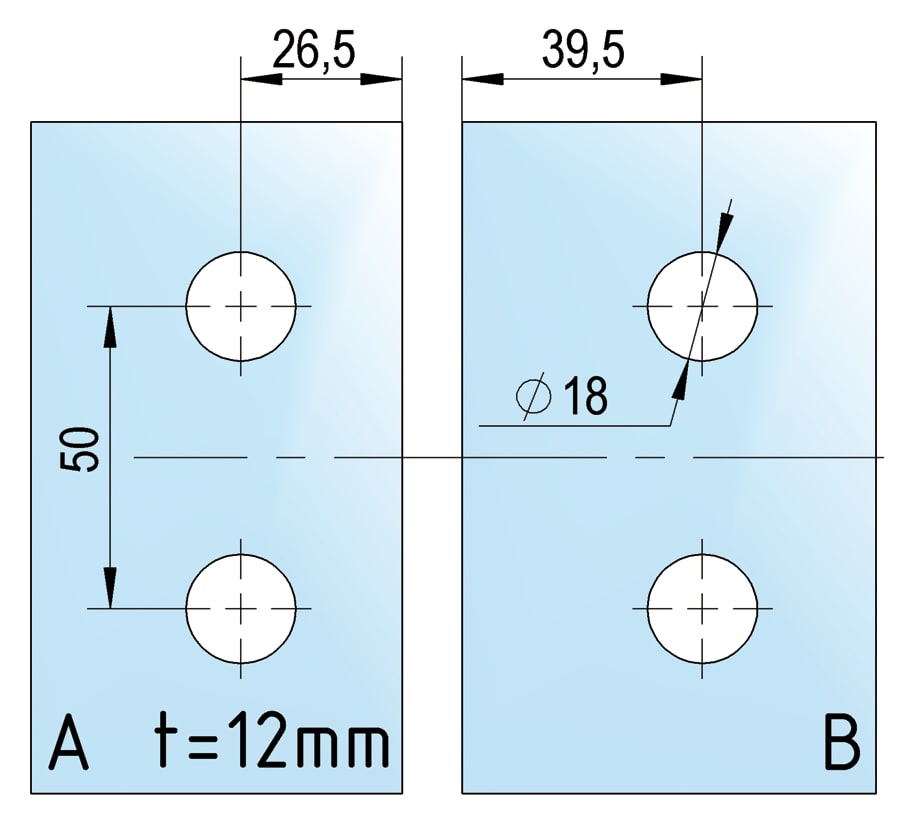

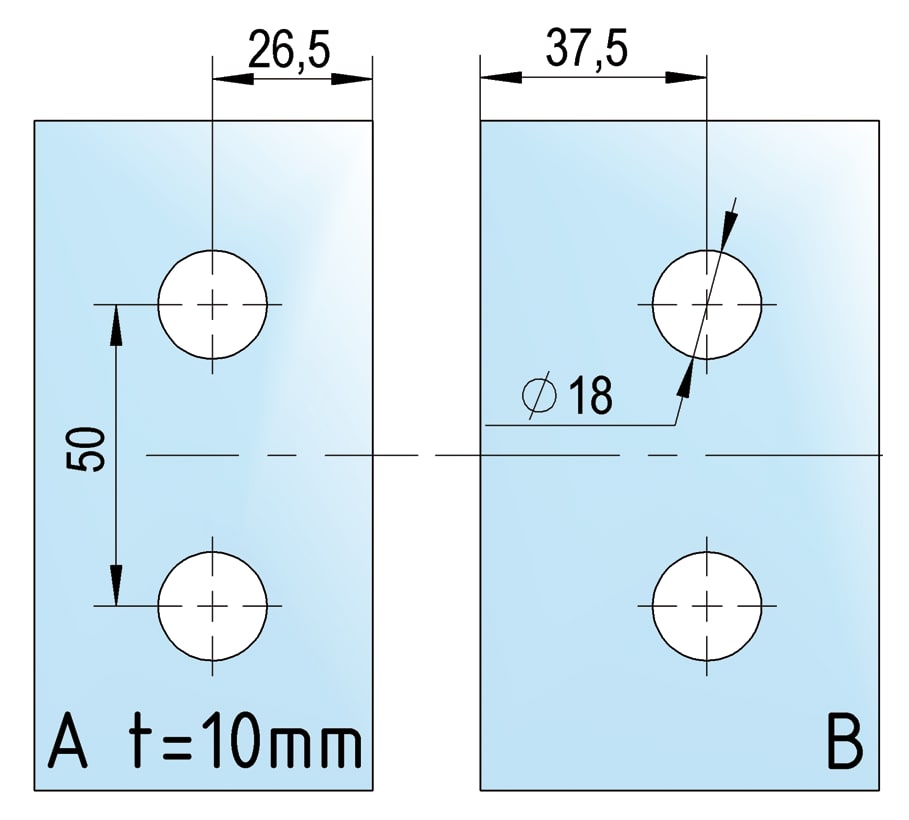

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
jpg
