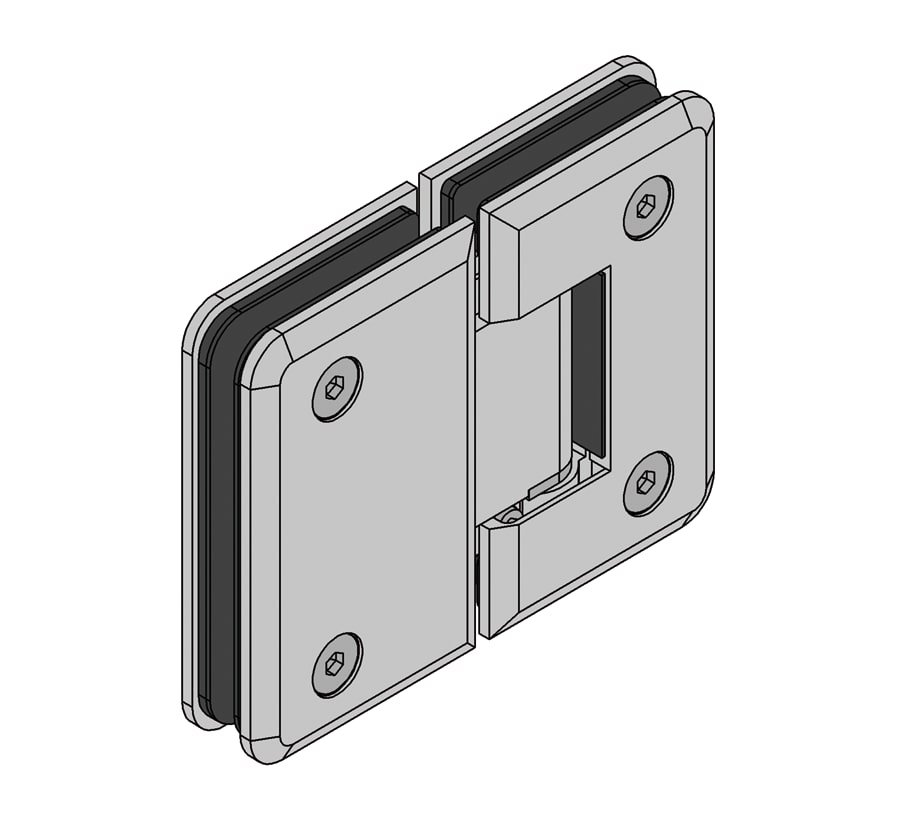

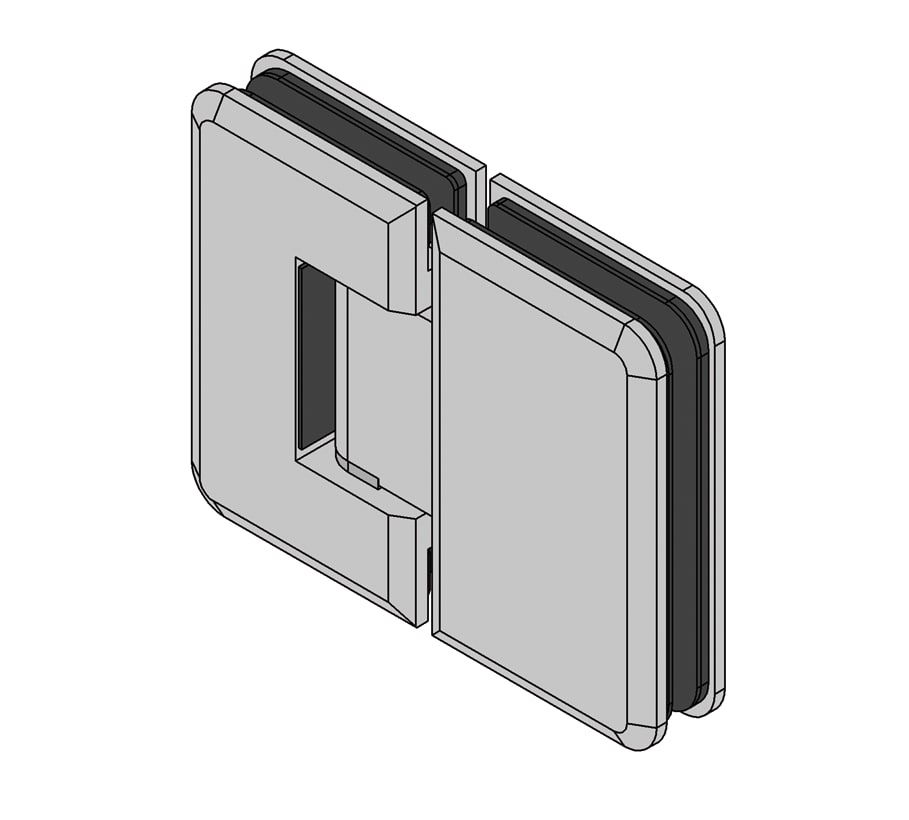

The Barcelona glass-glass 180° swing shower door hinge has a load capacity of 36 kg. Doors up to 0.9 x 2 m can be achieved. The hinge is suitable for aligning a glass door to a fixed glass side panel.
Barcelona has a self-closing function up to an opening angle of approx. +/-15°. Outside this range, the hinge stops in any position.
About the product series Barcelona:
Barcelona is the perfect shower door hinge series for the comfortable family bathroom. The harmonious design with rounded corners is versatile in use.
Application note:
