Bilbao Premium HD shower door hinge, glass-glass 180°

Product number: BO5211565

Description

The Bilbao Premium HD glass-glass 180° swing shower door hinge has a load-bearing capacity of 50 kg. Doors up to max. 1 x 2 m can be achieved. The hinge for 180° glass-glass installation has been developed for modern, large glass shower rooms.



About the product series Bilbao Premium:
The Bilbao Premium shower door hinge range combines modern, angular design with practical technical details, and all at an excellent price-performance ratio. The fittings are made of brass and are suitable for glass thicknesses of 8 mm, 10 mm and 12 mm. The zero position is adjustable for all hinges. The automatic return zone of ±15° to the zero position ensures convenient closing of the shower door. Outside this zone, the hinges hold any position.

Show all Show less

Your Advantages

  • Stepless zero position adjustment
  • Infinitely variable adjustability of the zero position
  • Supplied without fixing material

Technical details

Adjustable zero position
Yes
Concealed wall fixings
No
Degree of gloss
Shiny
Door height
2,000 mm
Door type
Swing door
Door width
1,000 mm
Flush
No
Glass processing required
Yes
Glass thickness TSG
8 - 12 mm
Hold position
Without
Material
Brass
Max. door weight per pair
50 kg
Mounting type
Glass-Glass
Opening angle
90°
Opening direction
DIN right and DIN left
Package contents
1 Piece
Product series
Bilbao Premium
Retrieval zone
Yes
Rise/fall function
No
Screws on the belt concealed
No
Self-closing from
15°
Self-closing function
No
Surface
Chrome-plated
Show all Show less

Downloads

pdf
Instructions
Maintenance and Care Instructions

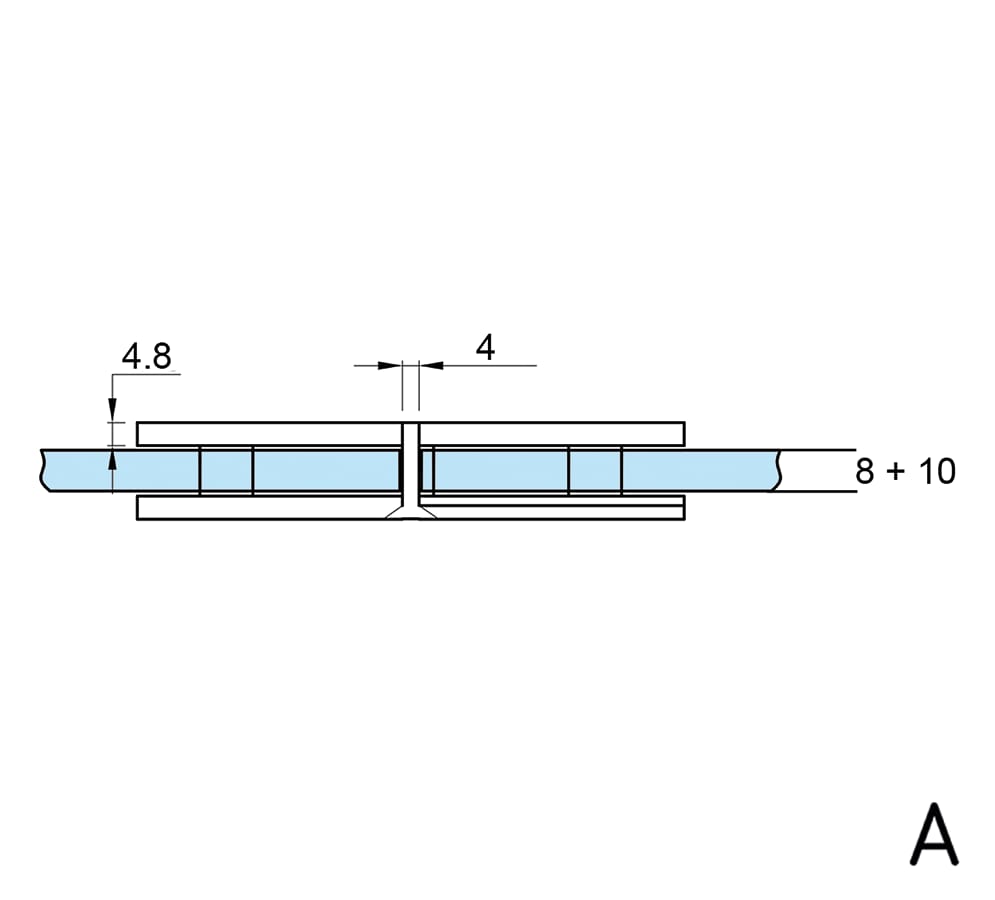

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
