Bilbao Select angle connector, glass-wall 90°

Product number: BO5213140

Description

Bilbao Select 90° glass-wall angle connector for connecting a fixed glass side panel to a wall. Only simple glass holes in the glass panes are required.



About the product series Bilbao Select:
The Bilbao Select shower door hinge range combines modern, angular design with practical technical details, and all at an excellent price-performance ratio. The fittings are made of brass and are suitable for glass thicknesses of 8 mm, 10 mm and 12 mm. The zero position is adjustable for all hinges. The automatic return zone of ±15° to the zero position ensures convenient closing of the shower door. Outside this zone, the hinges hold any position.

Show all Show less

Your Advantages

  • Only glass drilling required

Technical details

Angle
90°
Concealed wall fixings
No
Degree of gloss
Shiny
Flush
No
Glass thickness TSG
8 - 12 mm
Material
Stainless steel V2A
Mounting type
Glass-Wall
Package contents
1 Piece
Product series
Bilbao Select
Rise/fall function
No
Surface
Chrome-plated
Show all Show less

Downloads

pdf
Instructions
BO5213140 - Angle connector Bilbao Select - glass-wall 90 - Instruction Manual
pdf
Instructions
Maintenance and Care Instructions

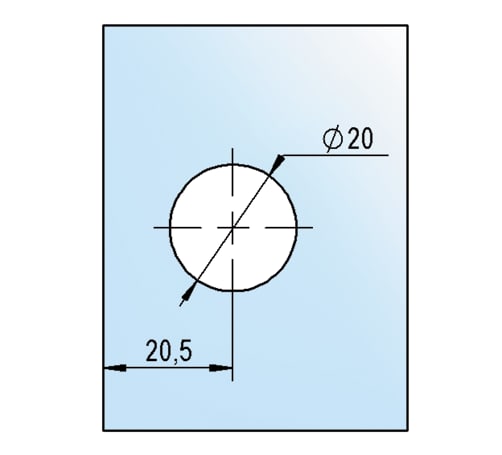

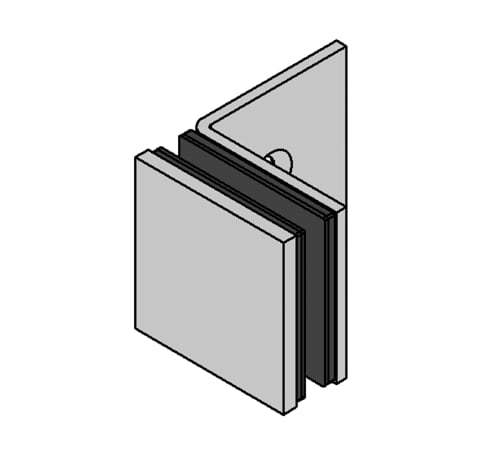

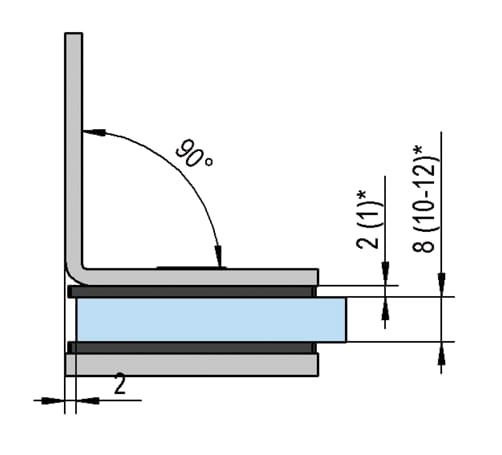

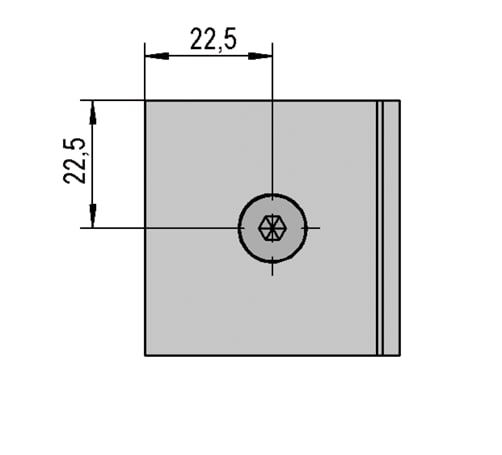

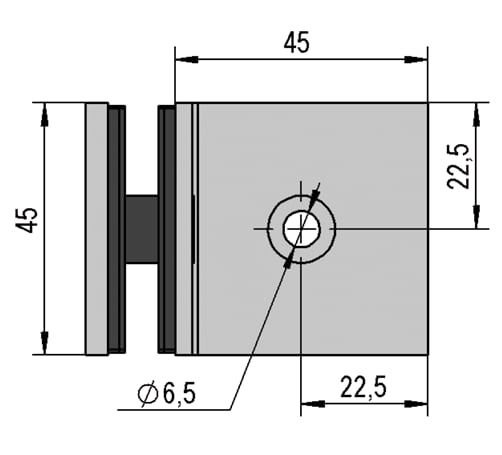

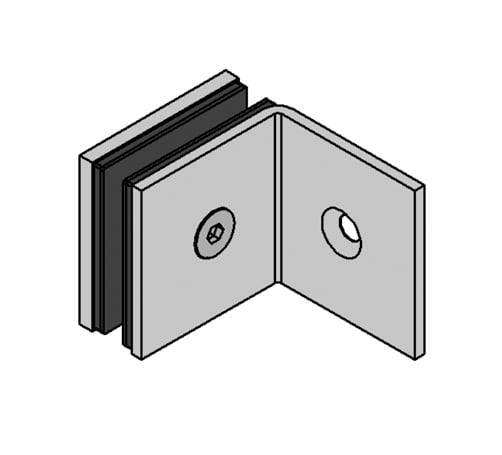

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
For more drawings please log in:
