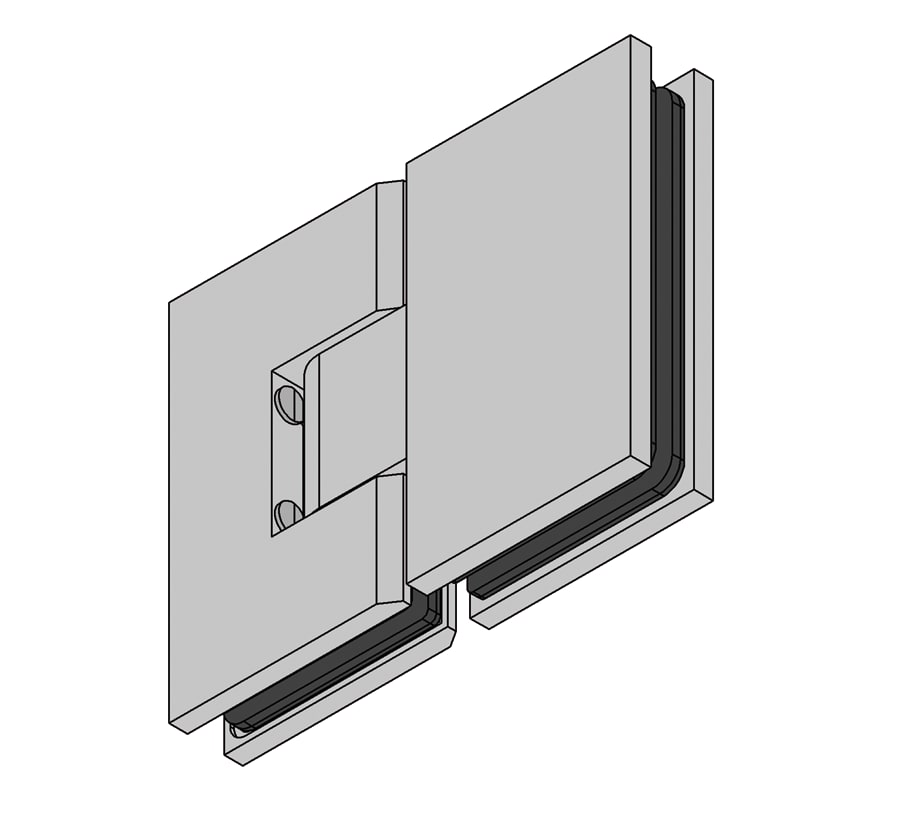

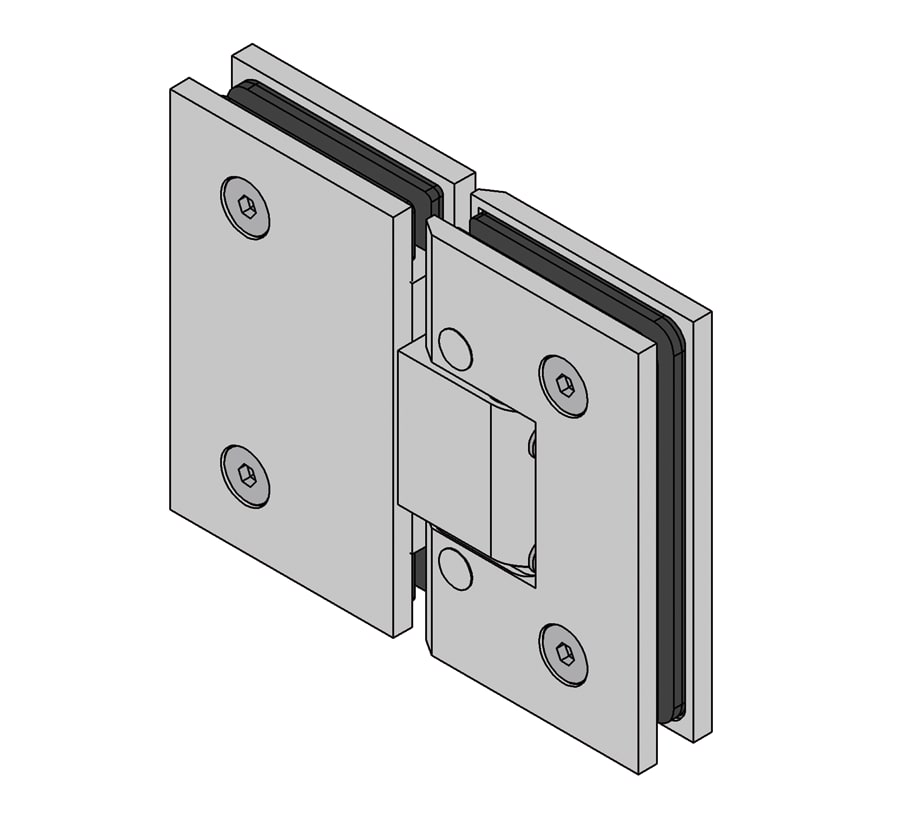

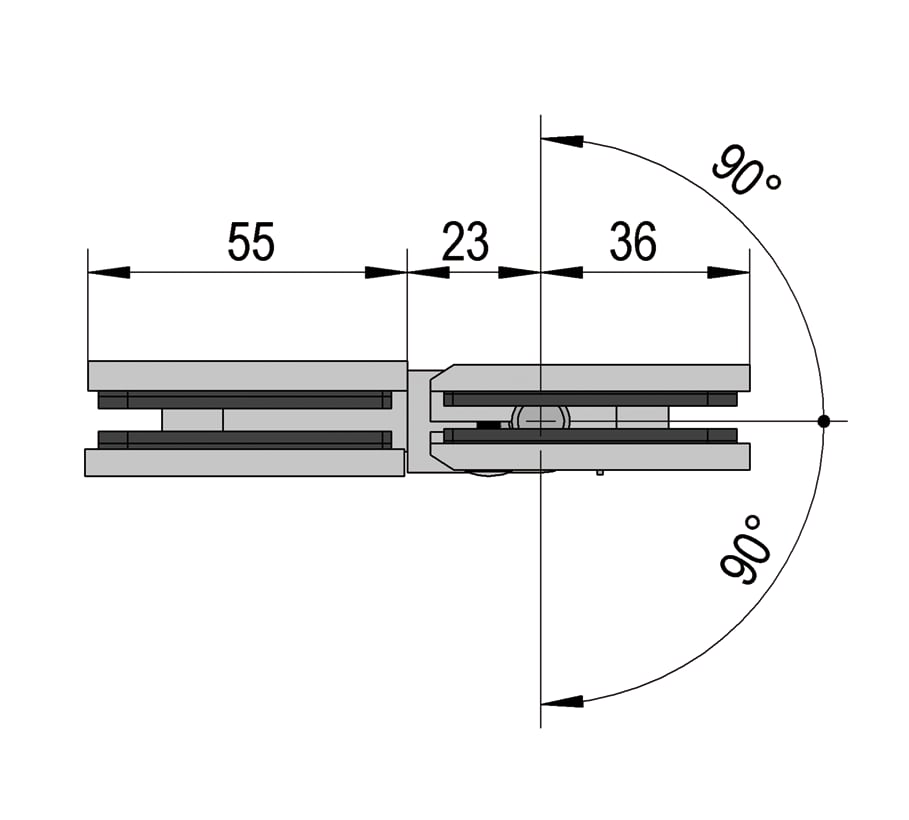

The Bilbao Select glass-glass 180° swing shower door hinge has a load-bearing capacity of 40 kg. Doors up to max. 1 x 2 m can be realised. The hinge for 180° glass-glass installation has been developed for modern, large glass shower rooms.
Bilbao Select 180° glass-glass swing shower door hardware for aligning a door on a fixed glass side panel
About the product series Bilbao Select:

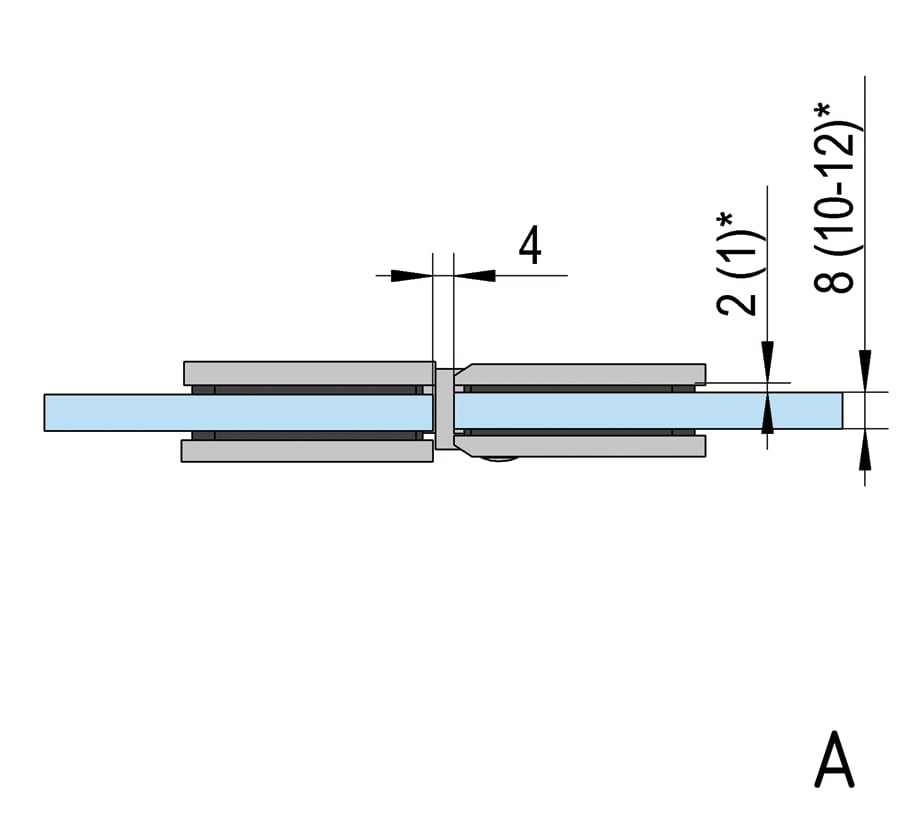

The Bilbao Select shower door hinge range combines modern, angular design with practical technical details, and all at an excellent price-performance ratio. The fittings are made of brass and are suitable for glass thicknesses of 8 mm, 10 mm and 12 mm. The zero position is adjustable for all hinges. The automatic return zone of ±15° to the zero position ensures convenient closing of the shower door. Outside this zone, the hinges hold any position.
Application note:
