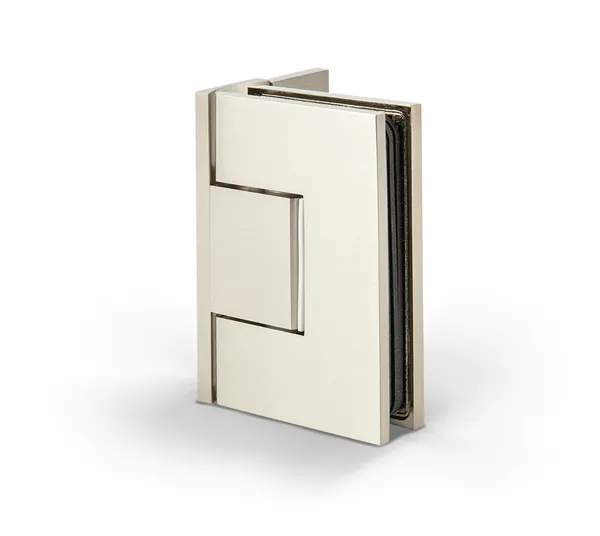

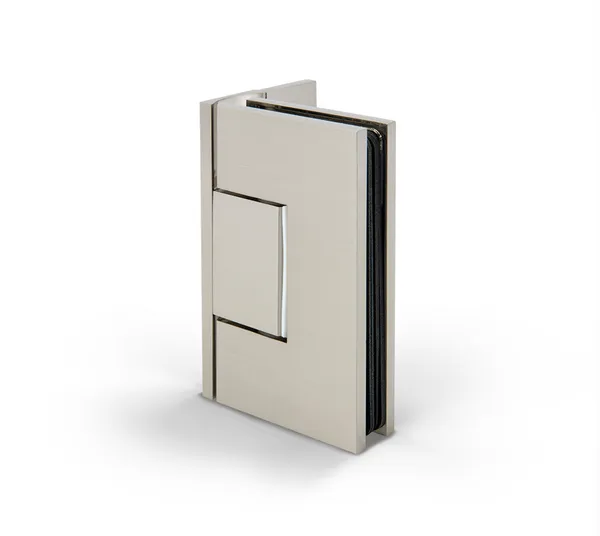

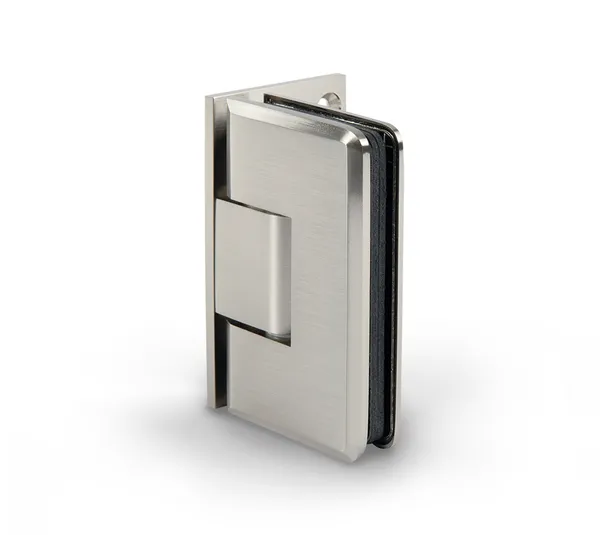

The Bilbao Select glass-wall 90° swing shower door hinge has a load-bearing capacity of 40 kg. Doors up to max. 1 x 2 m can be realised. The hinge with wall connection on one side enables a glass door to be mounted on a wall, for example for classic recess or 90° corner showers.
About the product series Bilbao Select:
The Bilbao Select shower door hinge range combines modern, angular design with practical technical details, and all at an excellent price-performance ratio. The fittings are made of brass and are suitable for glass thicknesses of 8 mm, 10 mm and 12 mm. The zero position is adjustable for all hinges. The automatic return zone of ±15° to the zero position ensures convenient closing of the shower door. Outside this zone, the hinges hold any position.
