Bilbao angle connector, glass-wall 90°

Product number: BO5213142

Description

Bilbao angle connector 90° glass-wall for connecting a fixed glass side panel to a wall. Only simple glass holes in the glass panel are required.



About the product series Bilbao:
The Bilbao shower door hinge series combines modern, angular design with useful technical details. Thanks to its versatility and functionality, as well as its excellent price-performance ratio, the range impresses builders, planners and architects alike. Bilbao has a self-closing function up to an opening angle of approx. ±15°. Outside this range, the hinge remains in any position.

Show all Show less

Your Advantages

  • Only glass drilling required
  • Efficient assembly with just one tool

Technical details

Angle
90°
Concealed wall fixings
No
Degree of gloss
Shiny
Flush
No
Glass thickness TSG
8 - 12 mm
Material
Brass
Mounting type
Glass-Wall
Package contents
1 Piece
Product series
Bilbao
Surface
Chrome-plated

Downloads

pdf
Instructions
Montageanleitung_Bilbao_BO-5213142_BO-5213142B_BO-5213143.pdf
pdf
Instructions
Maintenance and Care Instructions

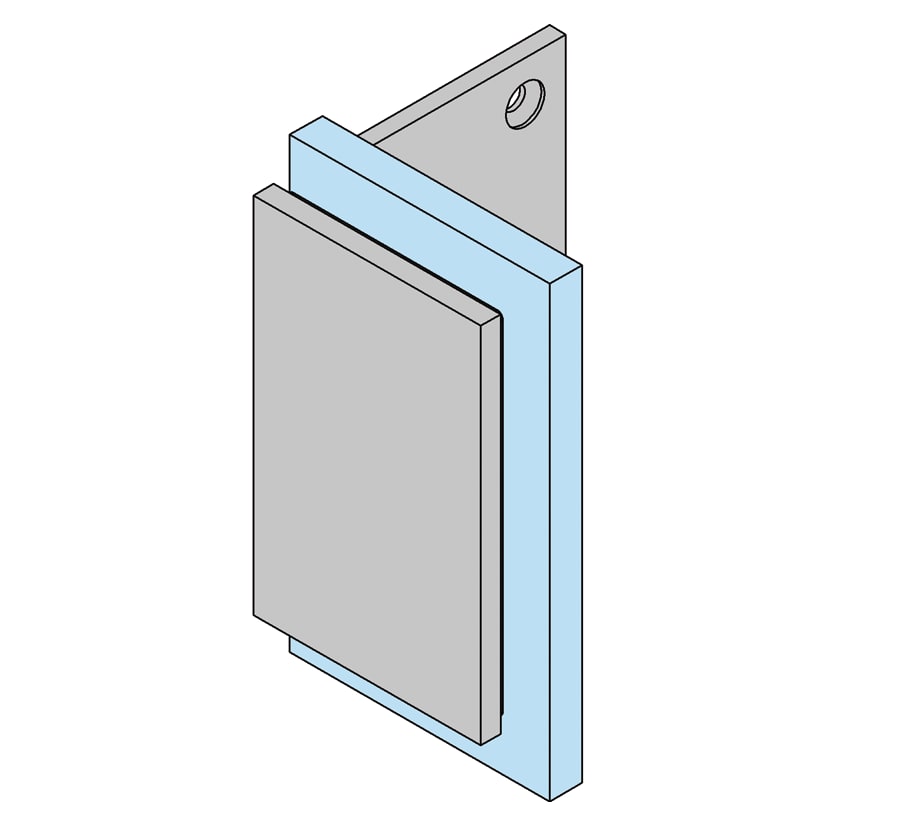

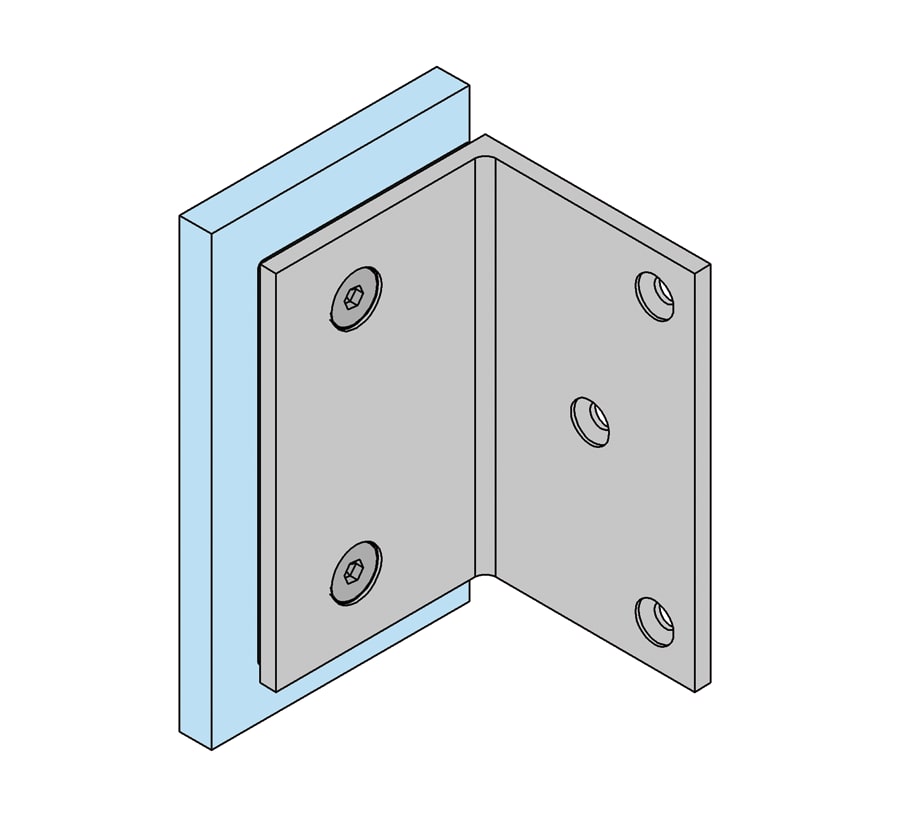

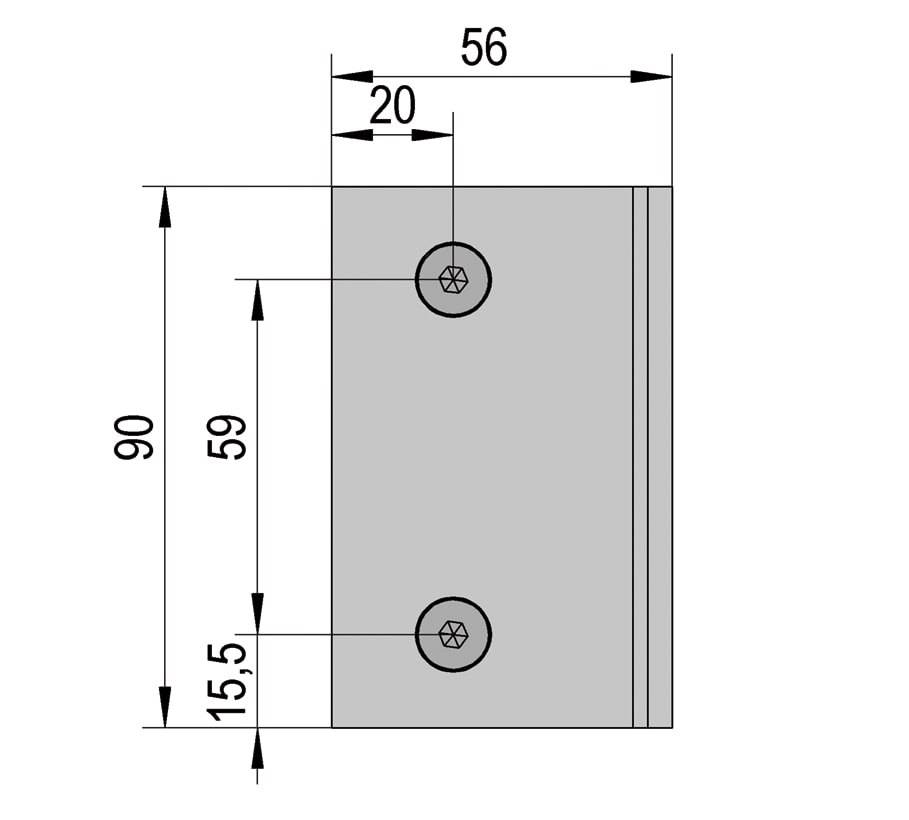

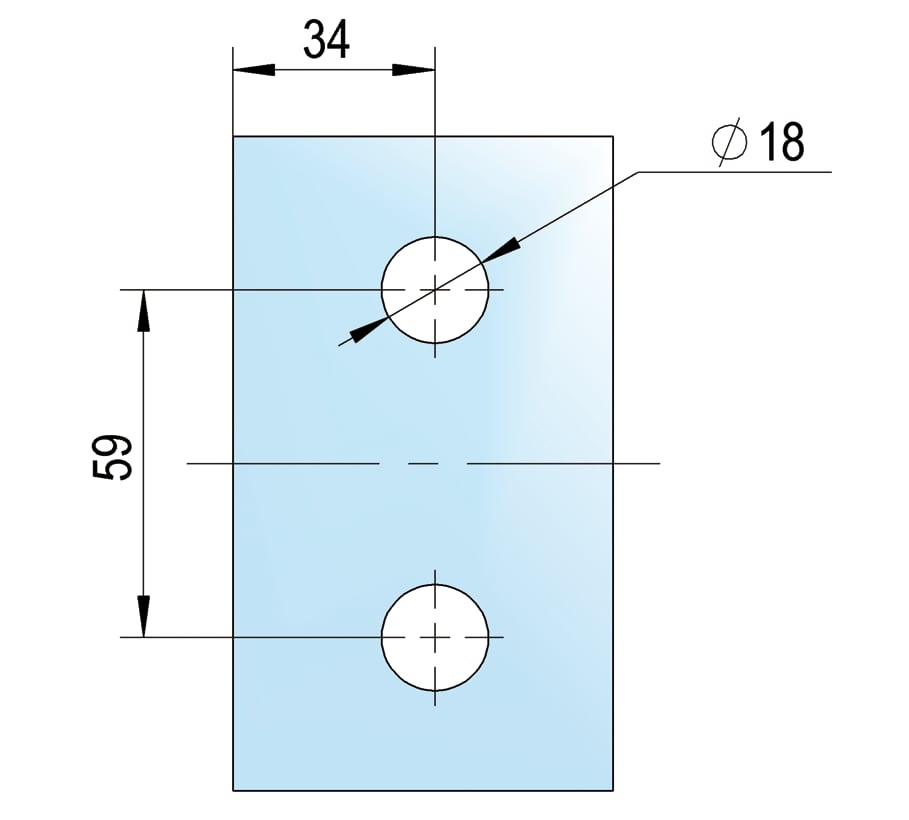

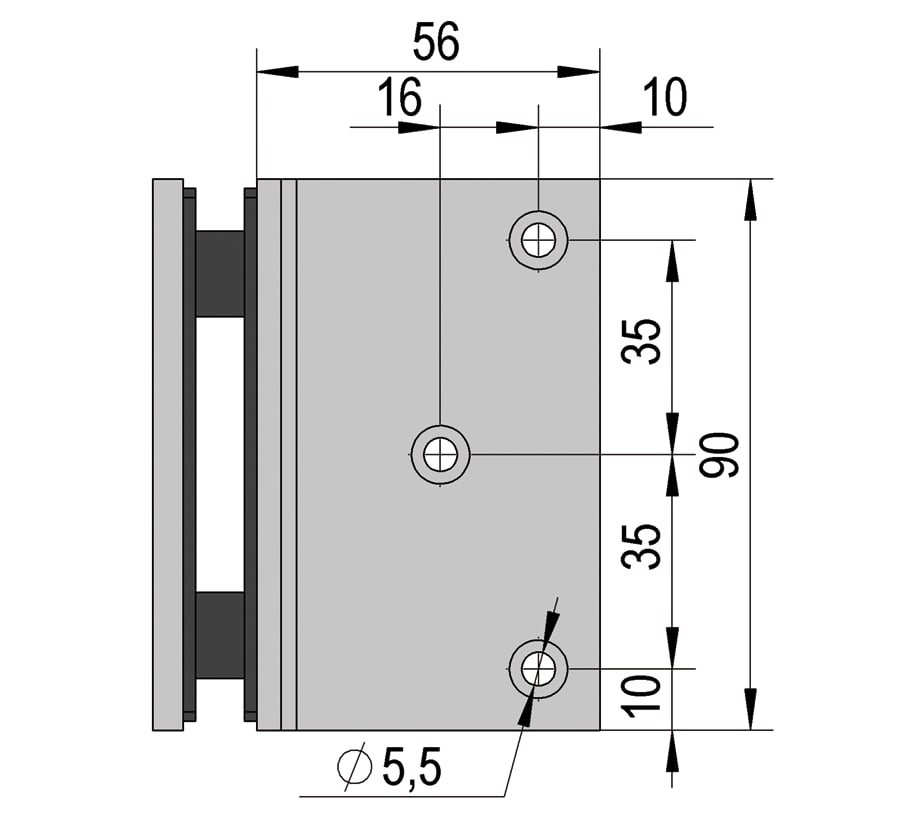

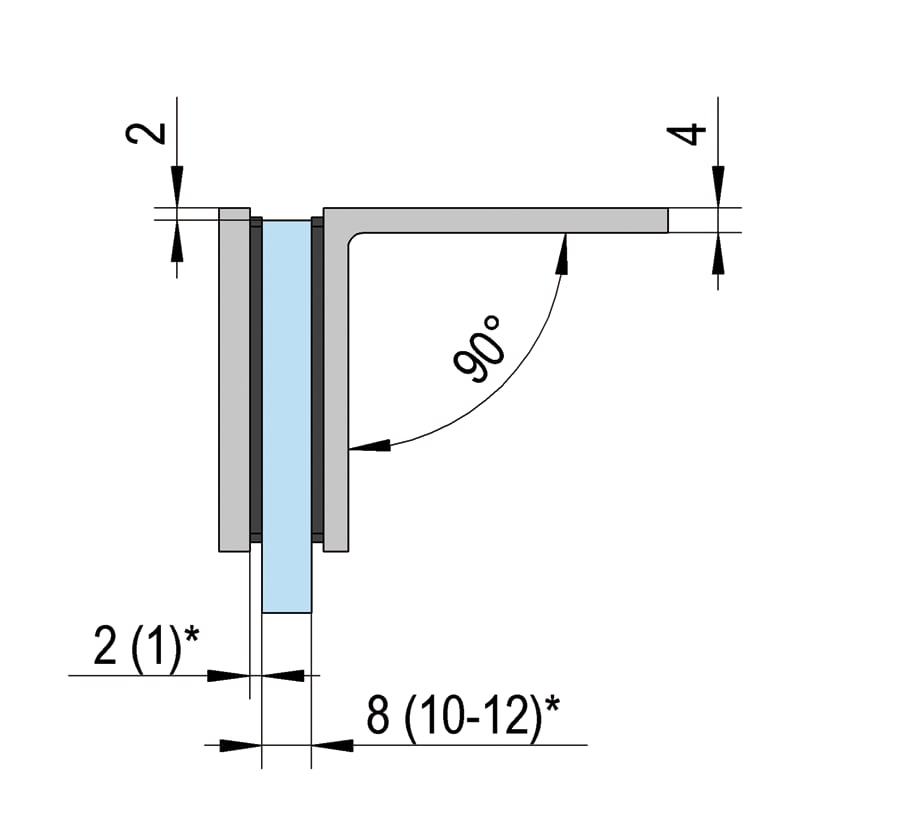

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
For more drawings please log in:
