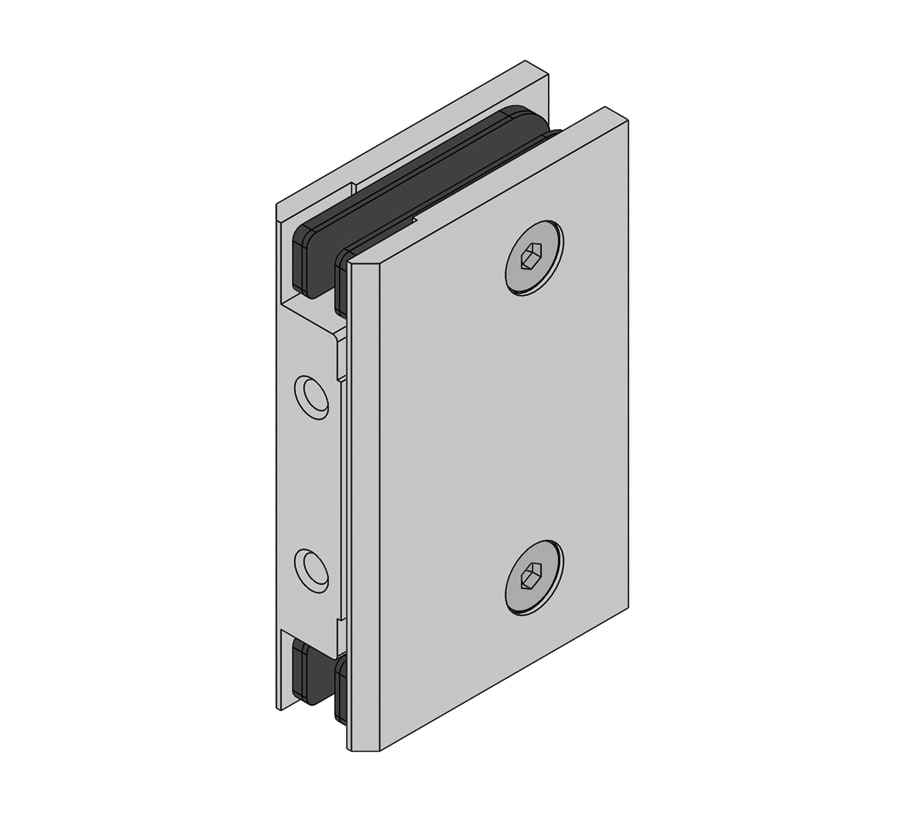

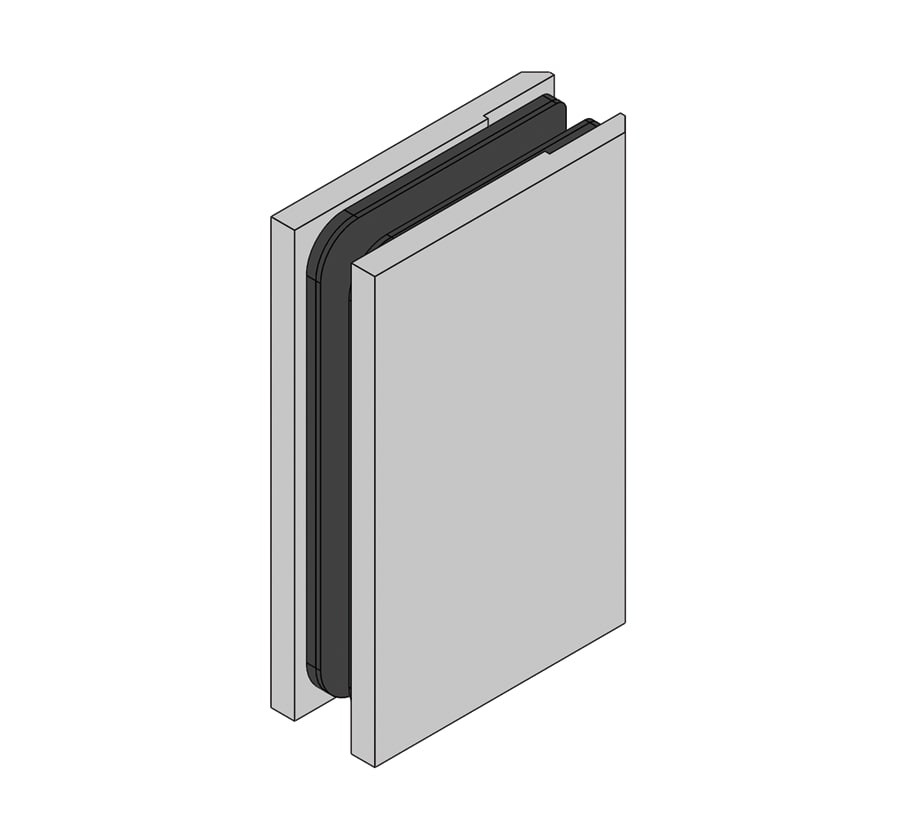

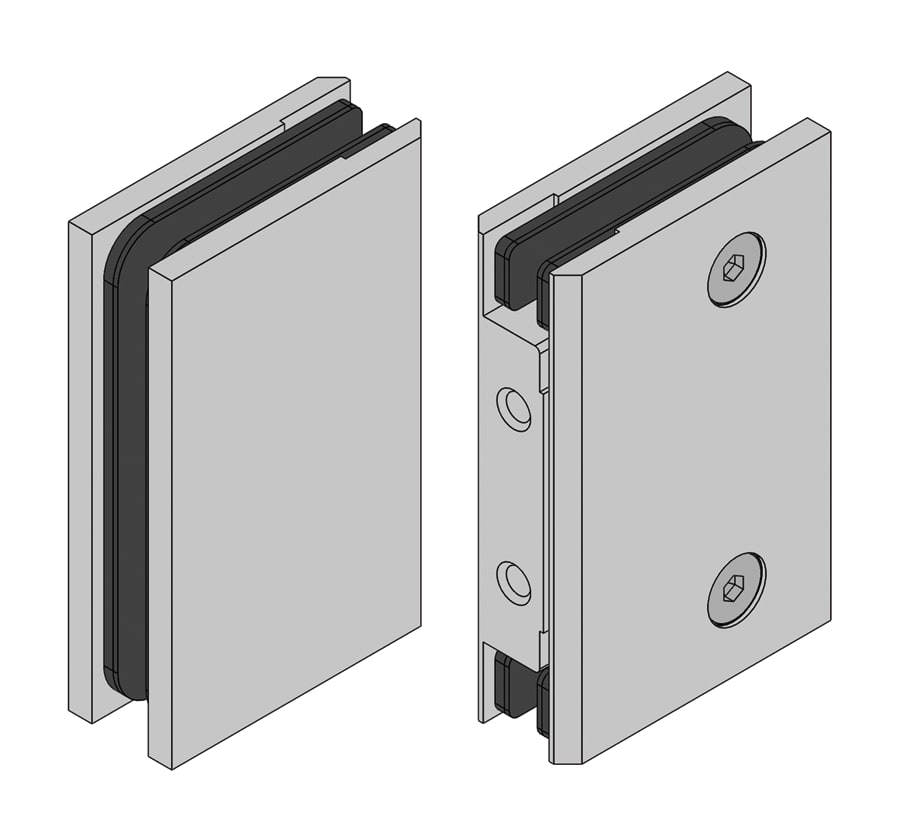

Bilbao connector / clamping bracket glass-wall 90° for connecting a fixed glass side panel to a wall. Due to the design, there are no obtrusive side fixing brackets.
Bilbao connector, glass-wall 90°
Please to see prices.
Description
Your Advantages
- Efficient assembly with just one tool
- No obtrusive side fixing brackets
Technical details
Angle
90°
Concealed wall fixings
Yes
Degree of gloss
Shiny
Flush
No

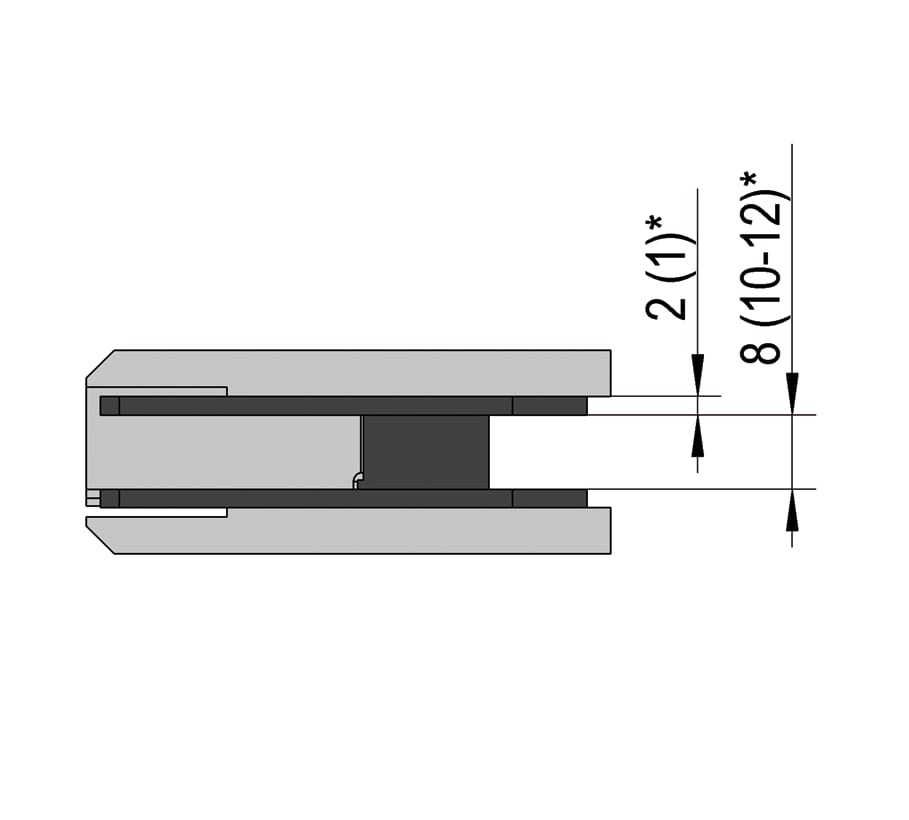

Glass thickness ESG
8 - 12 mm
Material
Brass
Mounting type
Glass-Wall
Package contents
1 Piece
Rise/fall function
No
Screws on the belt concealed
No
Surface
Chrome-plated
Downloads
pdf
Instructions
Montageanleitung_Bilbao_BO-5218420_BO-5218421.pdf
pdf
Instructions
Maintenance and Care Instructions
