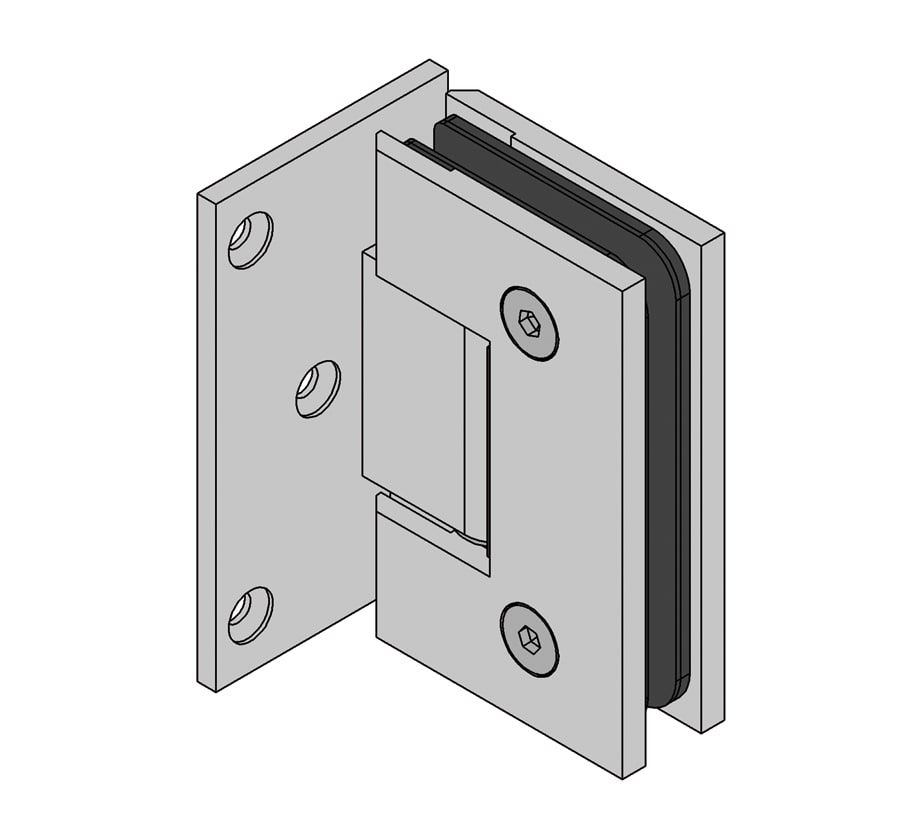

Bilbao shower door hinge, glass-wall 90°

Product number: BO5211549

Description

The Bilbao glass-wall 90° swing shower door hinge with wall connection on one side has a load-bearing capacity of 36 kg. Doors up to 0.9 x 2 m can be realised. The hinge enables a glass door to be mounted on a wall, for example for classic recess or 90° corner showers.



About the product series Bilbao:
The Bilbao shower door hinge series combines modern, angular design with useful technical details. Thanks to its versatility and functionality, as well as its excellent price-performance ratio, the range impresses builders, planners and architects alike. Bilbao has a self-closing function up to an opening angle of approx. ±15°. Outside this range, the hinge remains in any position.

Show all Show less

Your Advantages

  • Efficient assembly with only one tool
  • Zero position with hold position

Technical details

Adjustable zero position
No
Concealed wall fixings
No
Degree of gloss
Shiny
Door height
2,000 mm
Door type
Swing door
Door width
900 mm
Flush
No
Glass processing required
Yes
Glass thickness ESG
8 - 12 mm
Hold position
Without
Material
Brass
Max. door weight per pair
36 kg
Mounting type
Glass-Wall
Opening angle
90°
Opening direction
DIN right and DIN left
Package contents
1 Piece
Product series
Bilbao
Retrieval zone
Yes
Rise/fall function
No
Screws on the belt concealed
No
Self-closing from
15°
Self-closing function
No
Surface
Chrome-plated
Wall connection
One-sided
Show all Show less

Downloads

pdf
Instructions
Montageanleitung_Bilbao_BO-5211549_BO-5211550.pdf
pdf
Instructions
Maintenance and Care Instructions

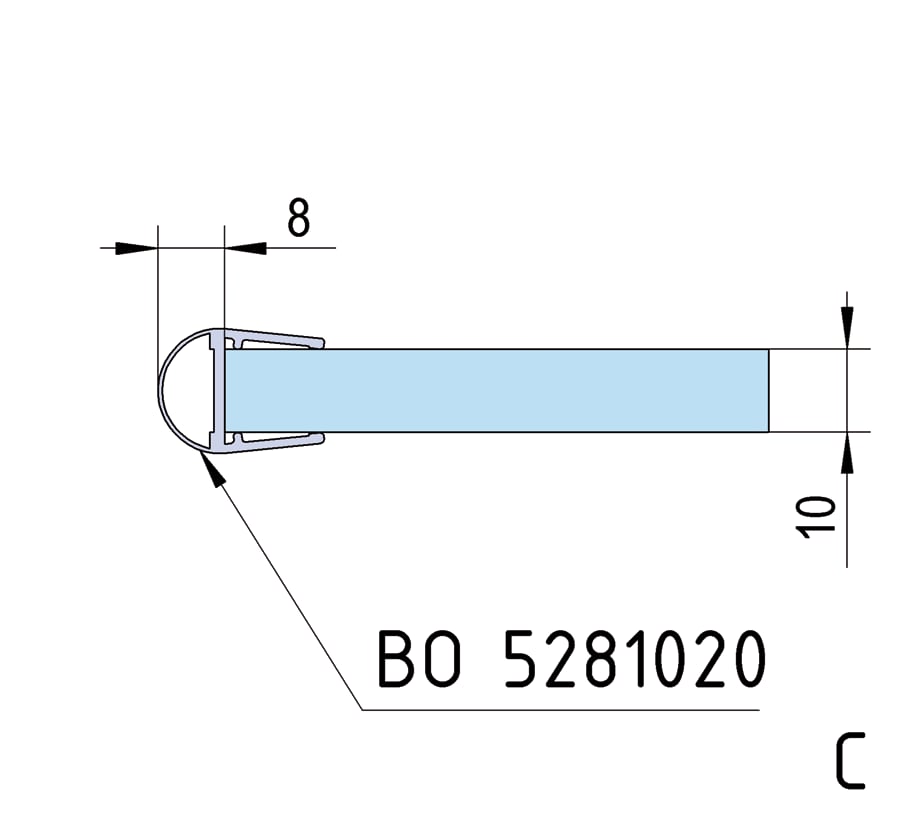

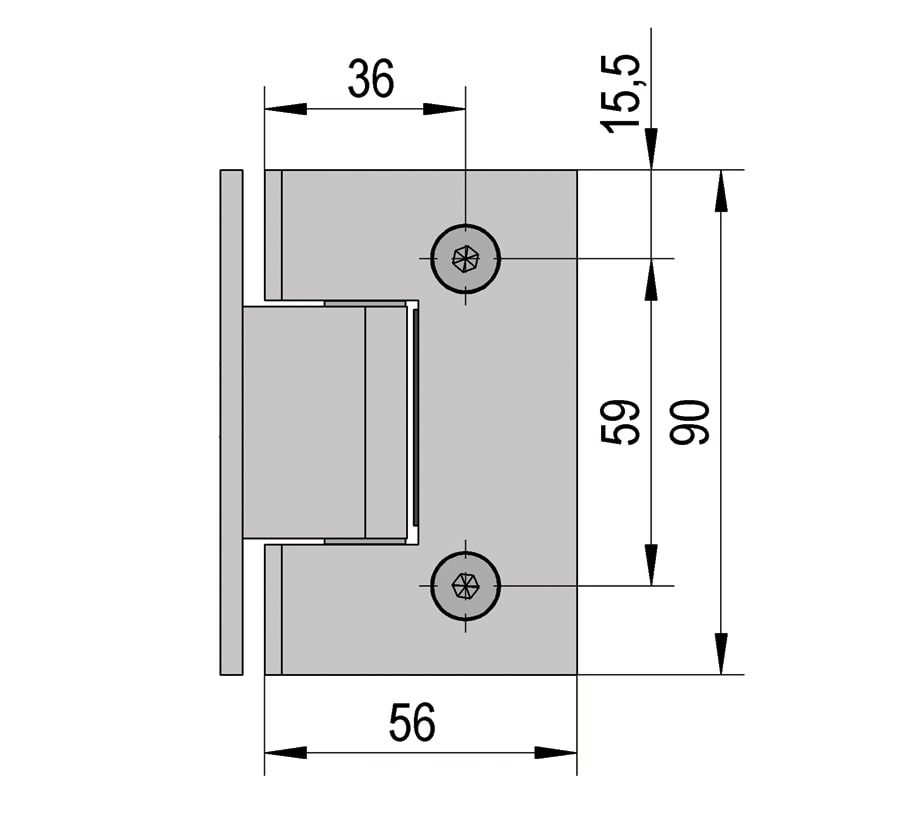

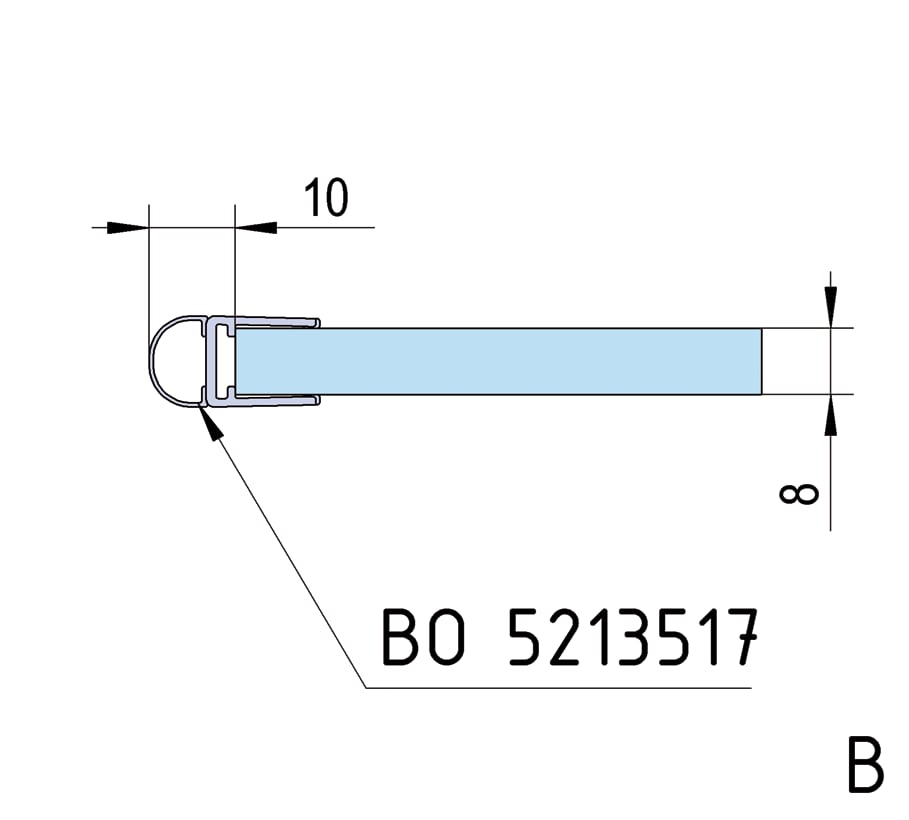

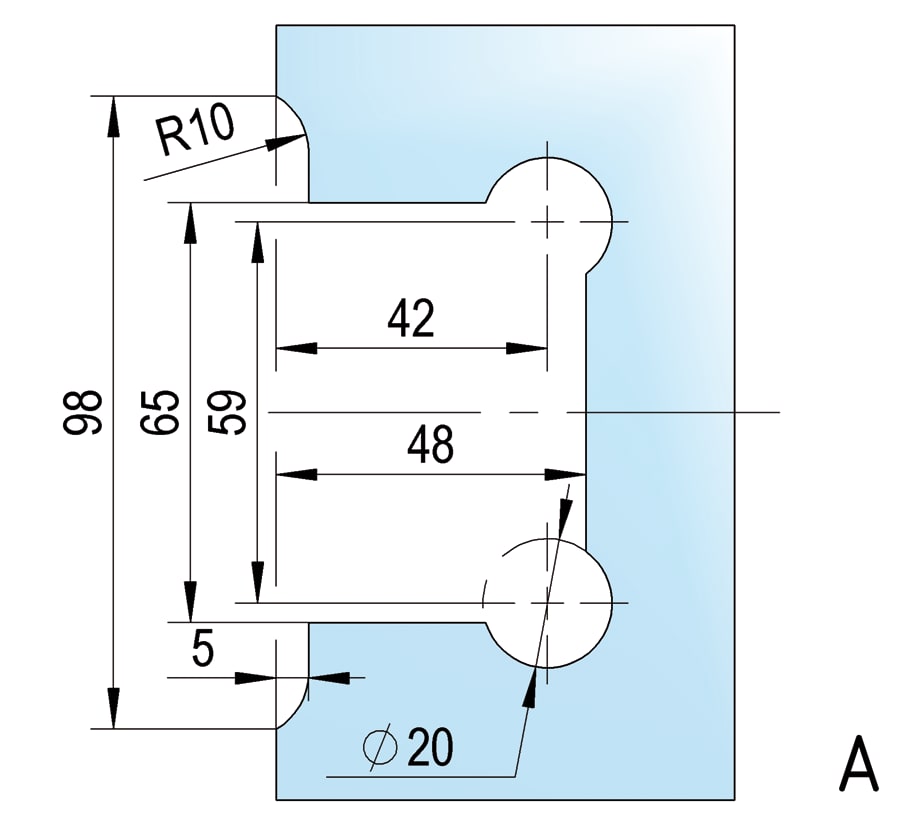

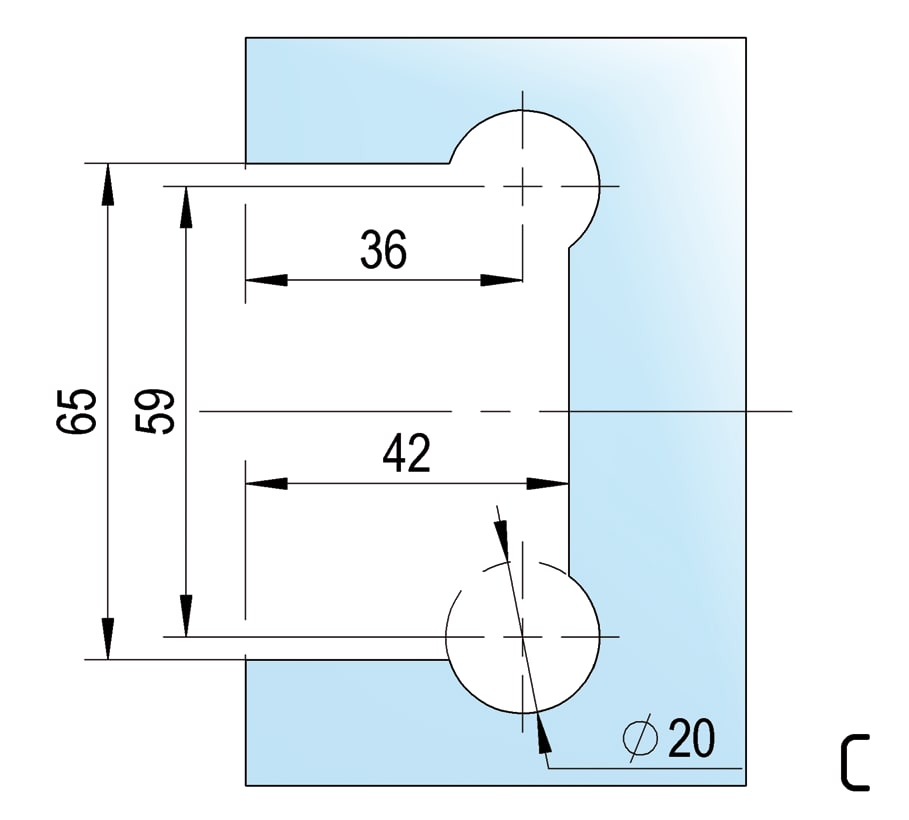

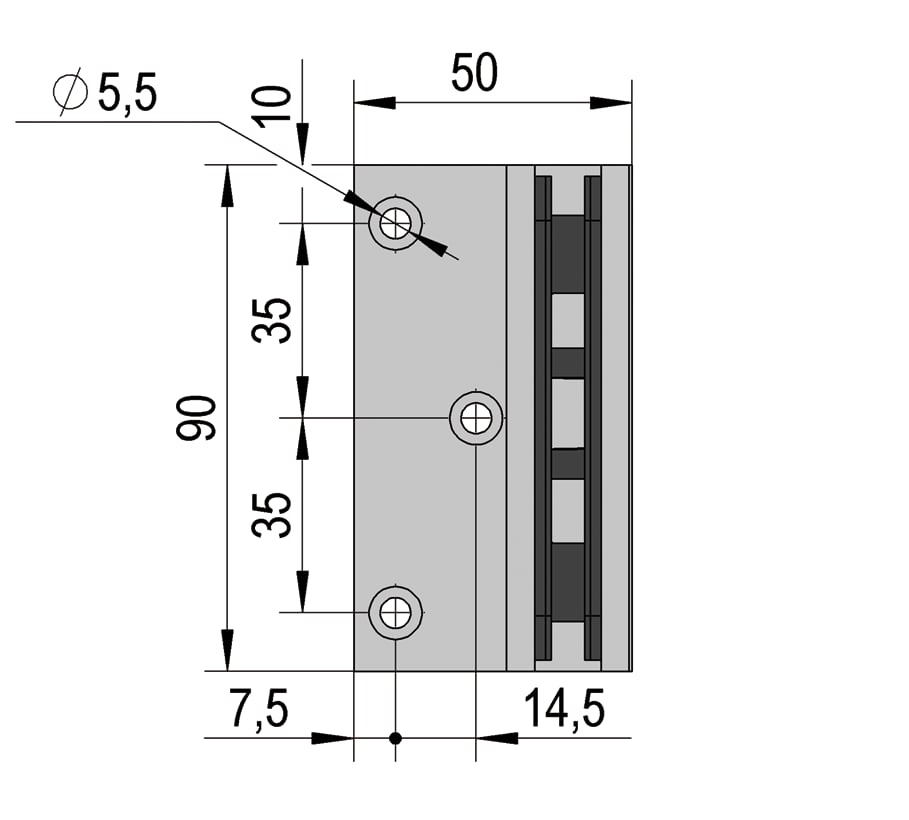

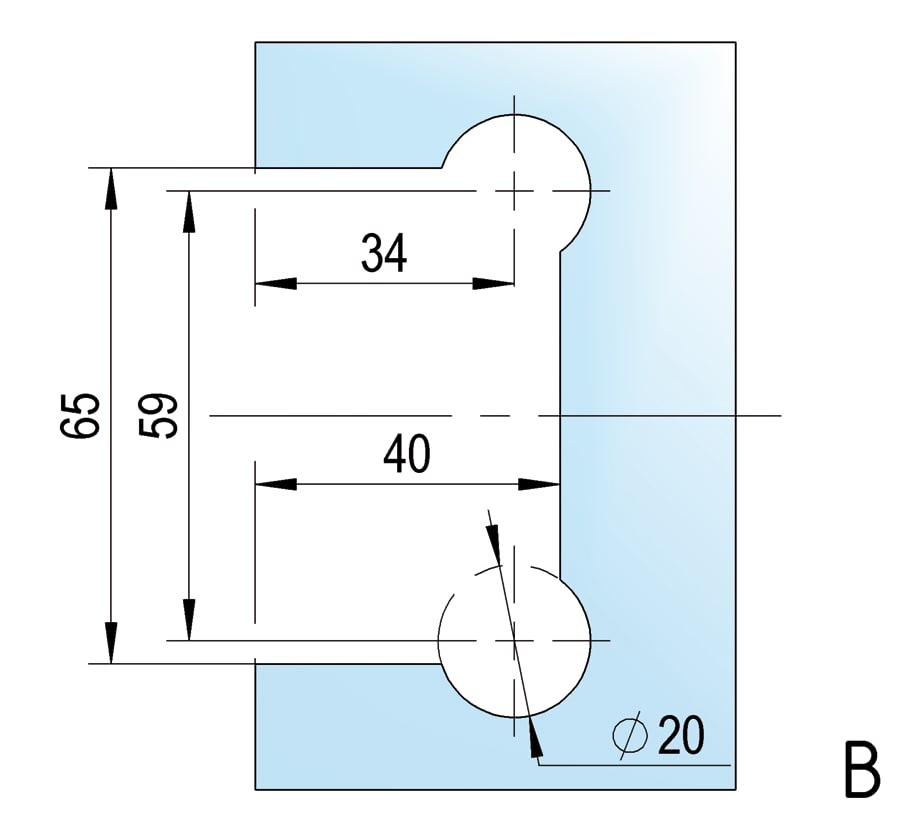

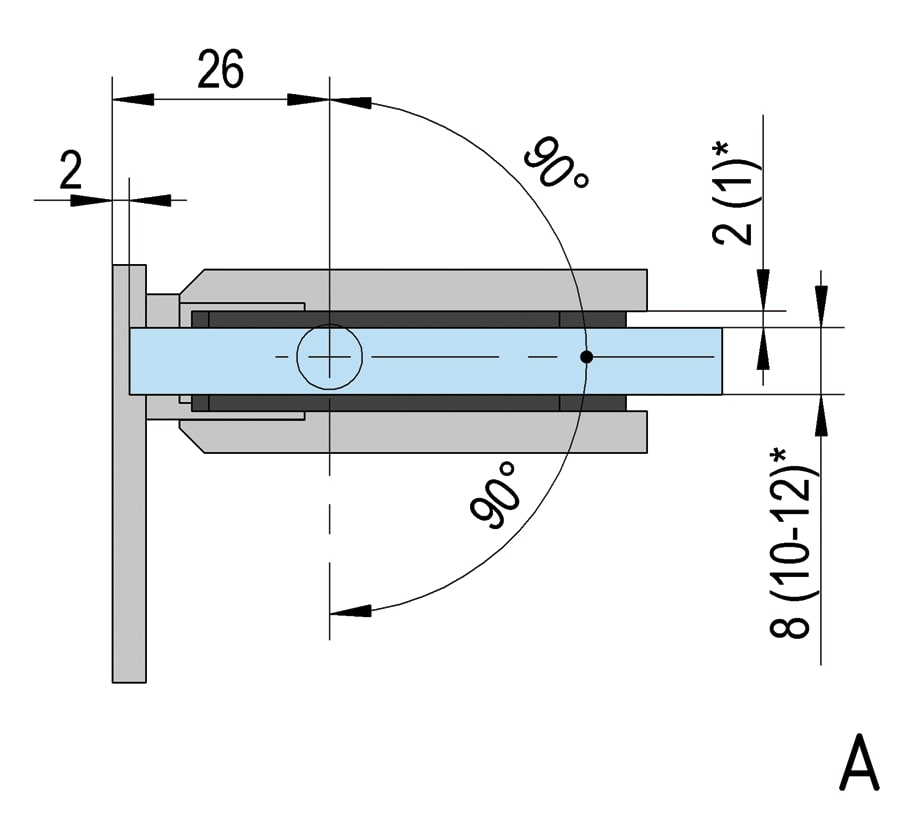

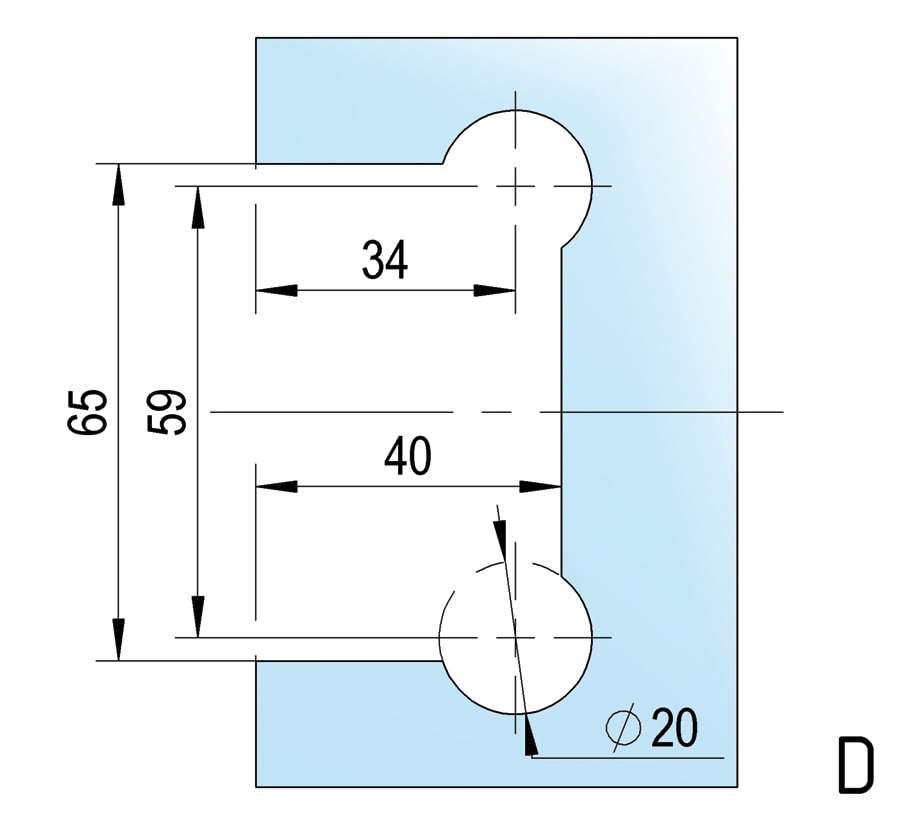

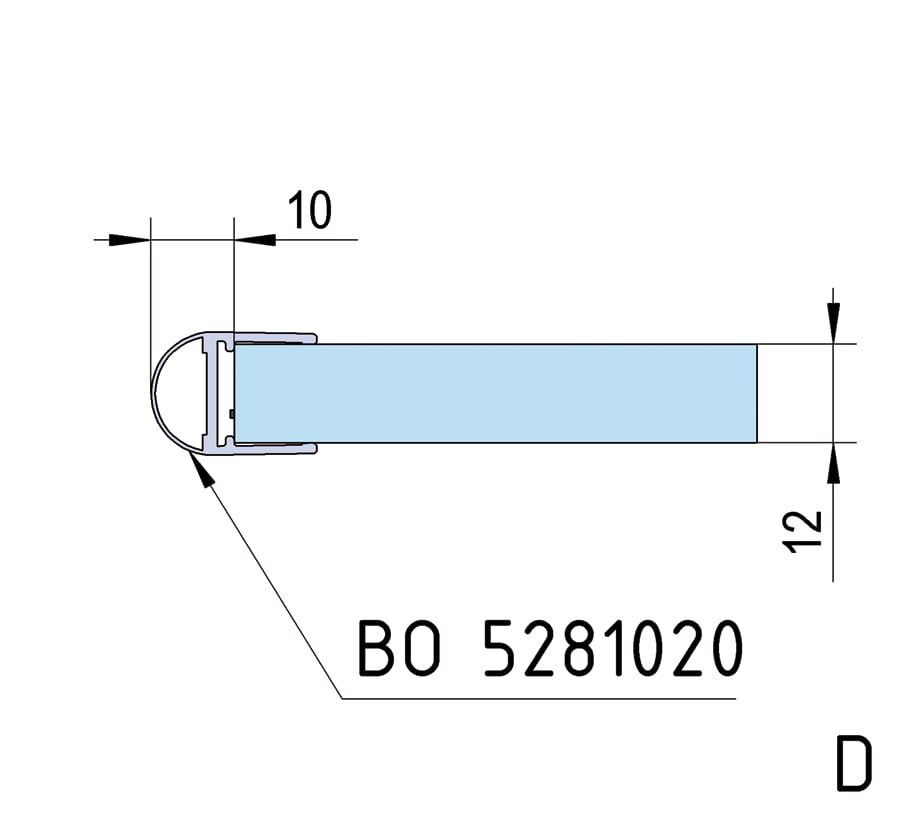

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
For more drawings please log in:
