Clamp fixing square 70 x 55 mm, wide

Product number: BO8755555

Description

Clamp fixings are the indispensable link for glass infills in stainless steel railings. With numerous variants in size, shape and colour, Bohle offers an extensive range for every taste and installation situation.

With only four clamps per pane, spans of up to two metres and glass thicknesses of 6 - 21.52 mm can be realised. The rubber inserts, which are available separately, offer flexible combination options of clamp fixing and glass. Thanks to different tube connections, the Bohle clamp fixings can be mounted on all common railing posts (square tube, round tube Ø 42.4 mm and round tube Ø 48.3 mm) indoors and outdoors.

Please order inserts for the desired glass thickness separately.

Application note:
When using laminated safety glass, an anti-slip device must be used

Your Advantages

  • Including securing plate and cover caps for screws
  • AbP for up to 2 metre span available

Technical details

Glass thickness LSG
16.76 - 21.52 mm
Length
55 mm
Material
Stainless steel V4A
Package contents
4 Pieces
Pipe connection
For square tube
Shape
Square
Surface
Brushed
Width
70 mm

Scope of supply

4 Pieces
Clamp fixing
2 Pieces
Securing plate
8 Pieces
Cover cap for screws

Downloads

pdf
Certificates
Clamps - General appraisal certificate

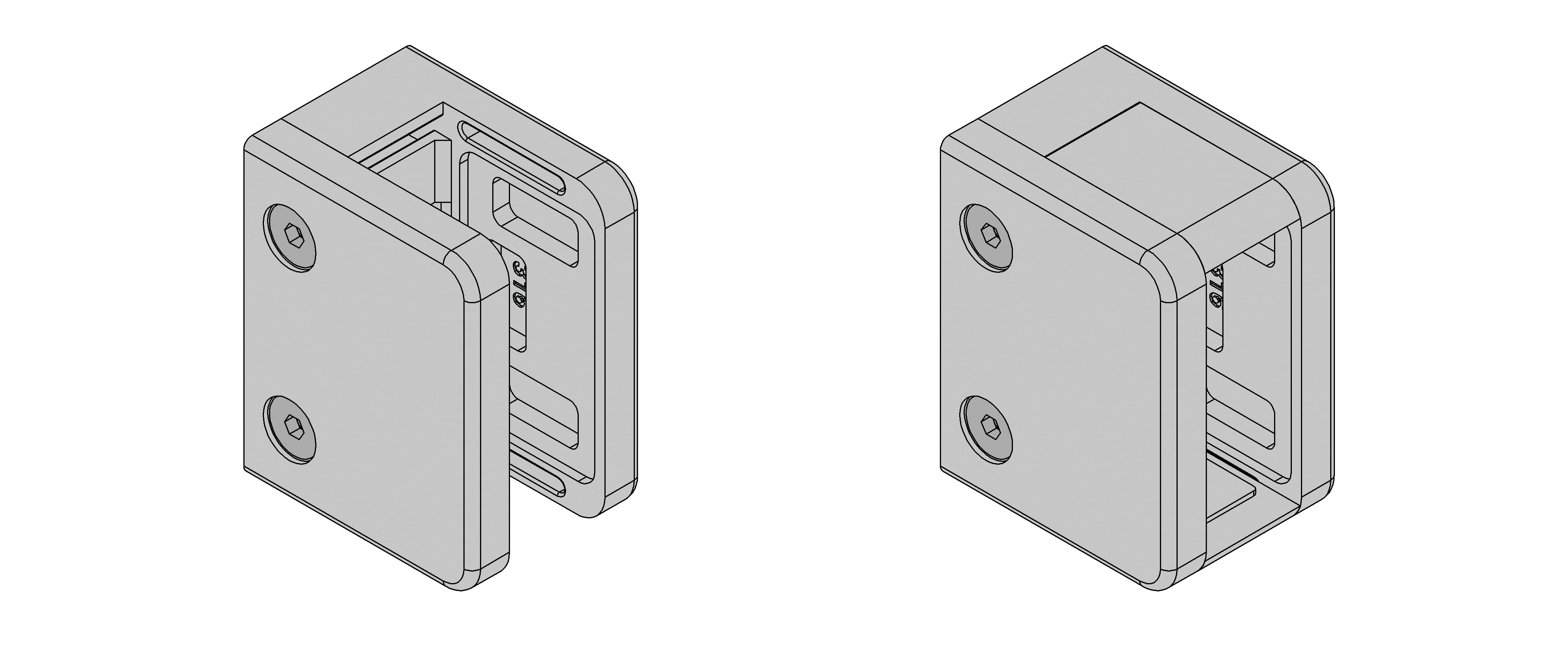

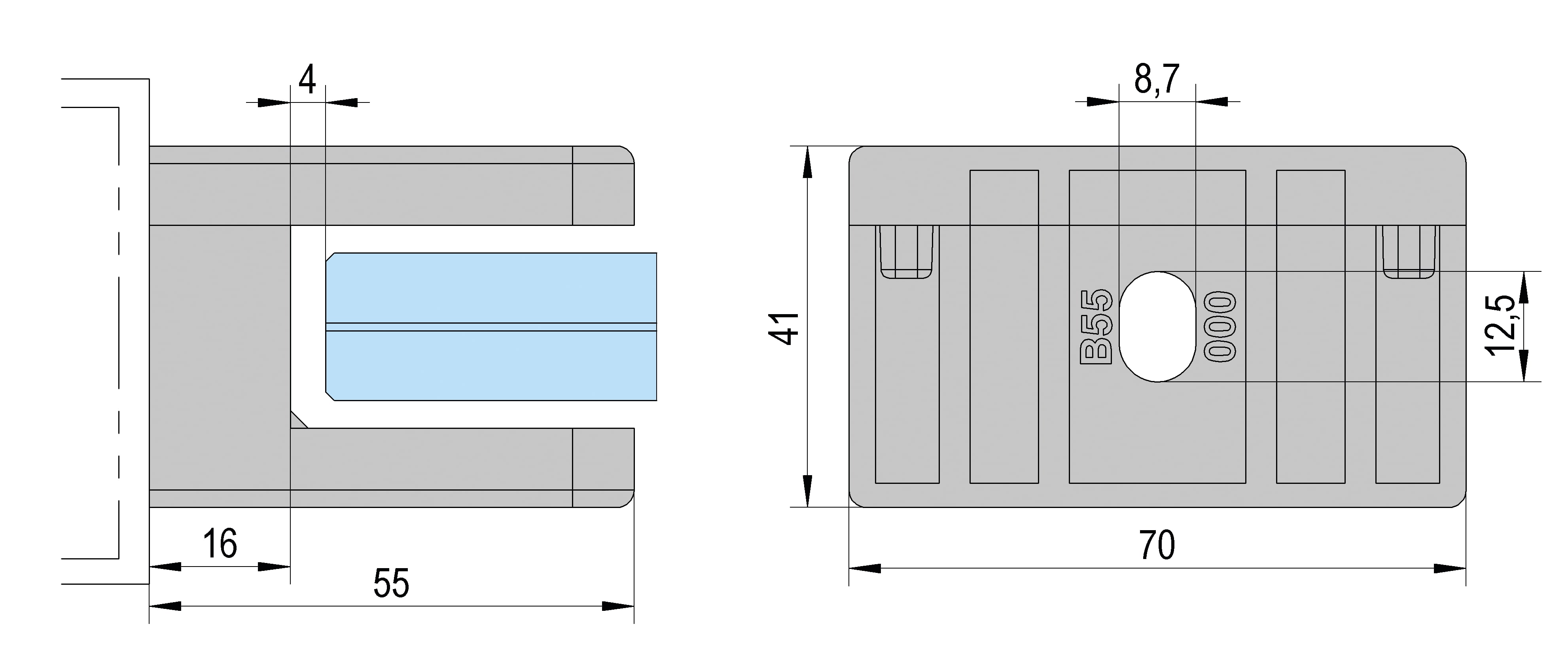

Drawings

jpg
jpg
For more drawings please log in:
