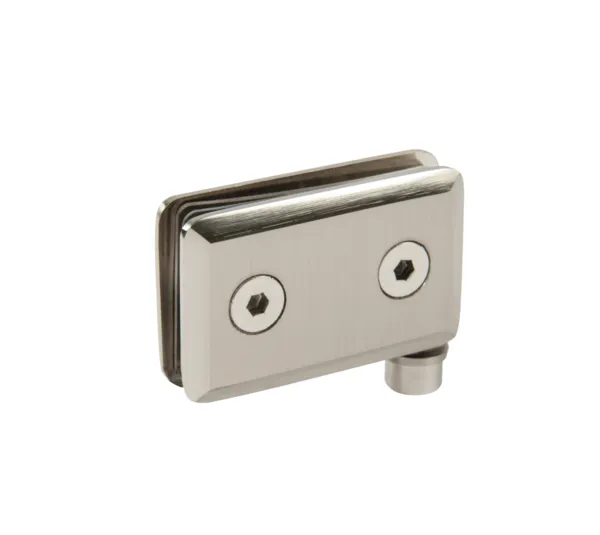

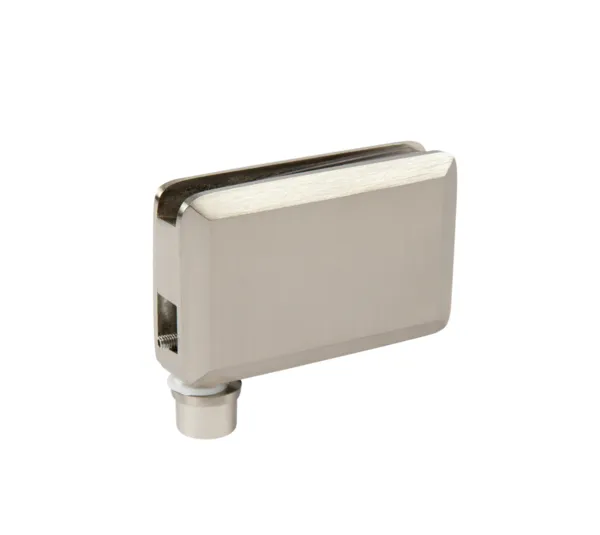

Furniture corner hinge Vitreasy 006, glass-wood

Product number: BO5200151

Description

Vitreasy furniture corner hinges for easy attachment of glass doors to display cases, for example, if the side panels are not load-bearing, too thin, or simply need to be free of fittings. Available in various shapes, materials and surfaces, with and without glass processing.



Your Advantages

  • Can be used on the left or right side
  • Bush for body 1 mm eccentrically adjustable
  • Solid aluminium bronze
  • Retractable axle

Technical details

3D adjustability
No
Adjustable zero position
No
Colour
Stainless steel colour
Degree of gloss
Matt
Door height
1,600 mm
Door type
Stop door
Door width
400 mm
Fastening type
Screwed
Flush
No
Glass processing required
Yes
Glass thickness
6 - 8 mm
Height
40 mm
Material
Aluminium bronze
Max. door weight per pair
14 kg
Model
Clamped
Mounting position
Inset
Mounting type
Glass-wood
Opening angle
105°
Opening direction
DIN right and DIN left
Package contents
1 Pair
Product series
Vitreasy 006
Retrieval zone
No
Self-closing function
No
Shape
Square
Surface
Nickel-plated
Surface treatment
Brushed
Width
65 mm
