Glass connector Round 19, end piece

Product number: BO5420121

Description

This adjustable glass connector is clamped onto the upper glass edge of the fixed glass side panel and forms the lateral end of the reinforcement bar. Suitable for the Round 19 reinforcement bar.



Your Advantages

  • Stepless angle adjustment
  • No glass processing required

Technical details

Adjustable
Yes
Adjustable (angle)
90°
Degree of gloss
Shiny
Diameter
19 mm
Glass processing required
No
Glass thickness ESG
6 - 10 mm
Material
Brass
Package contents
1 Piece
Product series
Round 19
Shape
Round
Surface
Chrome-plated
Show all Show less

Scope of supply

1 Piece
Glass connector

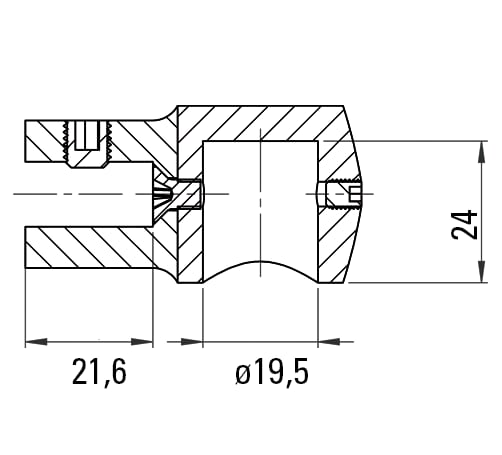

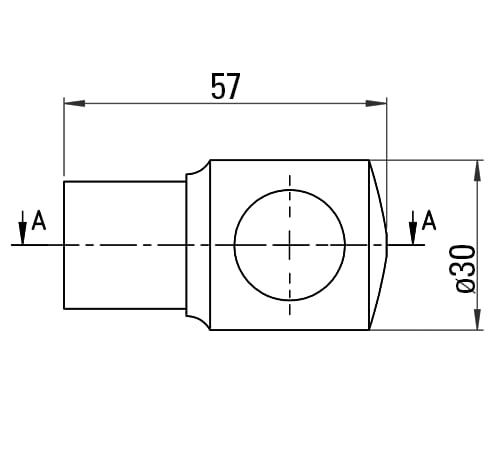

Drawings

jpg
jpg
