Glass door lock 80 x 47 mm with strike plate

Product number: BO5206311

Description

The glass door deadbolt lock with matching striking plate is designed to be screwed to the lower or upper glass edge of single-leaf doors. It is pushed into a glass cut-out and fixed to the glass by means of two clamping screws



Key can only be removed when locked

Your Advantages

  • Solid zinc die-cast design
  • Solid 9 mm round bar

Technical details

Degree of gloss
Shiny
Glass thickness
6 - 8 mm
Height
47 mm
Lockout
9 mm (1-turn)
Material
Zinc die casting
Model
With latch
Mounting type
Clamped
Opening direction
DIN right and DIN left
Package contents
1 Piece
Surface
Chrome-plated
Type of key
Universal
Width
80 mm
Show all Show less

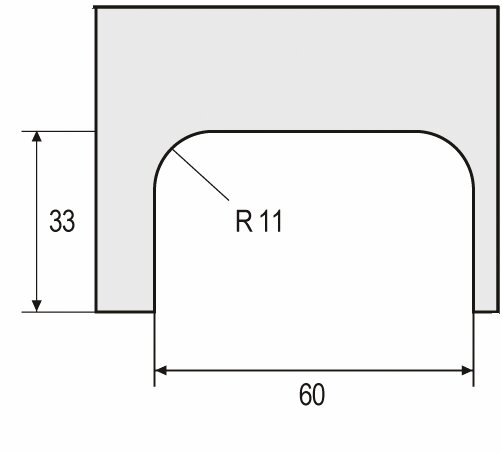

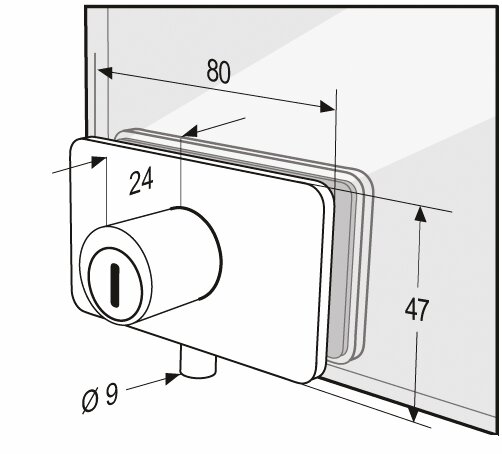

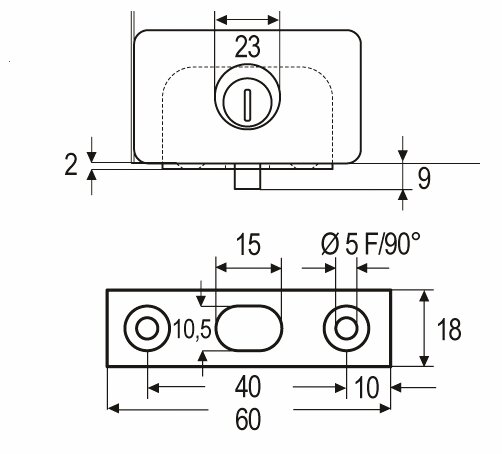

Drawings

jpg
jpg
jpg

Discover more

Similar products

+ 7 Variations

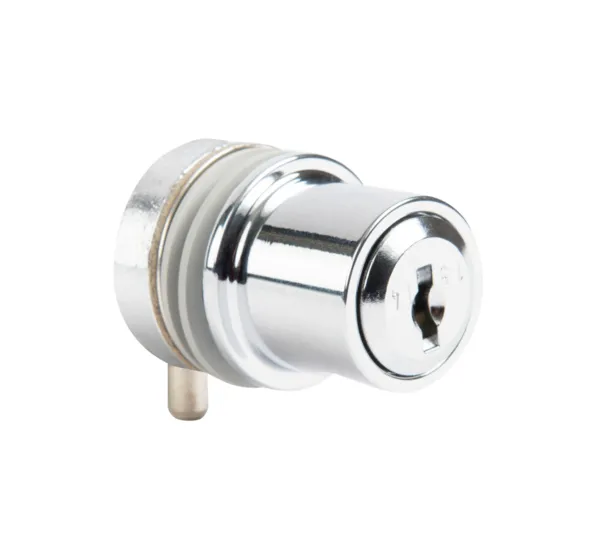

Cylinder knob / glass door lock
