Glass door lock with glass processing

Product number: BO5206360

Description

Glass door locks with glass processing are inserted through the glass door to be secured by means of a glass hole and secured by screwing from the opposite side. They are available in different shapes and sizes and for single and double-leaf doors.



Right version Drill hole in glass 20 mm Key can only be removed when locked

Your Advantages

  • Simple glass processing
  • Available in different shapes

Technical details

Colour
Stainless steel colour
Degree of gloss
Matt
Door type
Stop door
Fastening type
Screwed
Glass thickness
5 - 13 mm
Height
45 mm
Material
Zinc sheet
Mounting type
Screwed
Opening direction
Right
Package contents
1 Piece
Surface
Nickel-plated
Type of key
Universal
Width
58 mm
With keep
No
Show all Show less

Scope of supply

1 Piece
Cover plate
1 Piece
Rubber ring
1 Piece
Hexagon nut
1 Piece
Cylinder lever lock
2 Pieces
Key with square head

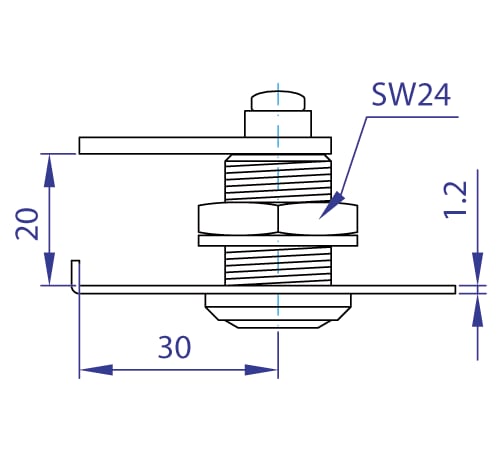

Drawings

jpg
jpg
jpg
