Glass shelf support glass - wood

Product number: BO5206197

Description

Glass shelf supports made of solid stainless steel or brass, in different sizes, as well as with and without height adjustment, for screwing into wooden carcasses. With integrated circumferential rubber pad to protect the glass shelves against slipping and scratching.



Application note:
Can also be used as an adjustable door stop

Your Advantages

  • Height adjustment ± 1.5 mm via eccentric fixing hole ø 3.5 mm
  • No glass processing required
  • Integrated all-round glass support

Technical details

Colour
Stainless steel colour
Degree of gloss
Matt
Diameter
12 mm
Fastening type
Screwed
Function
Glass shelf support
Glass processing required
No
Height
12 mm
Height adjustable (+-)
1.5 mm
Material
Stainless steel
Mounting type
Glass-wood
Shape
Round
Surface treatment
Brushed
Show all Show less

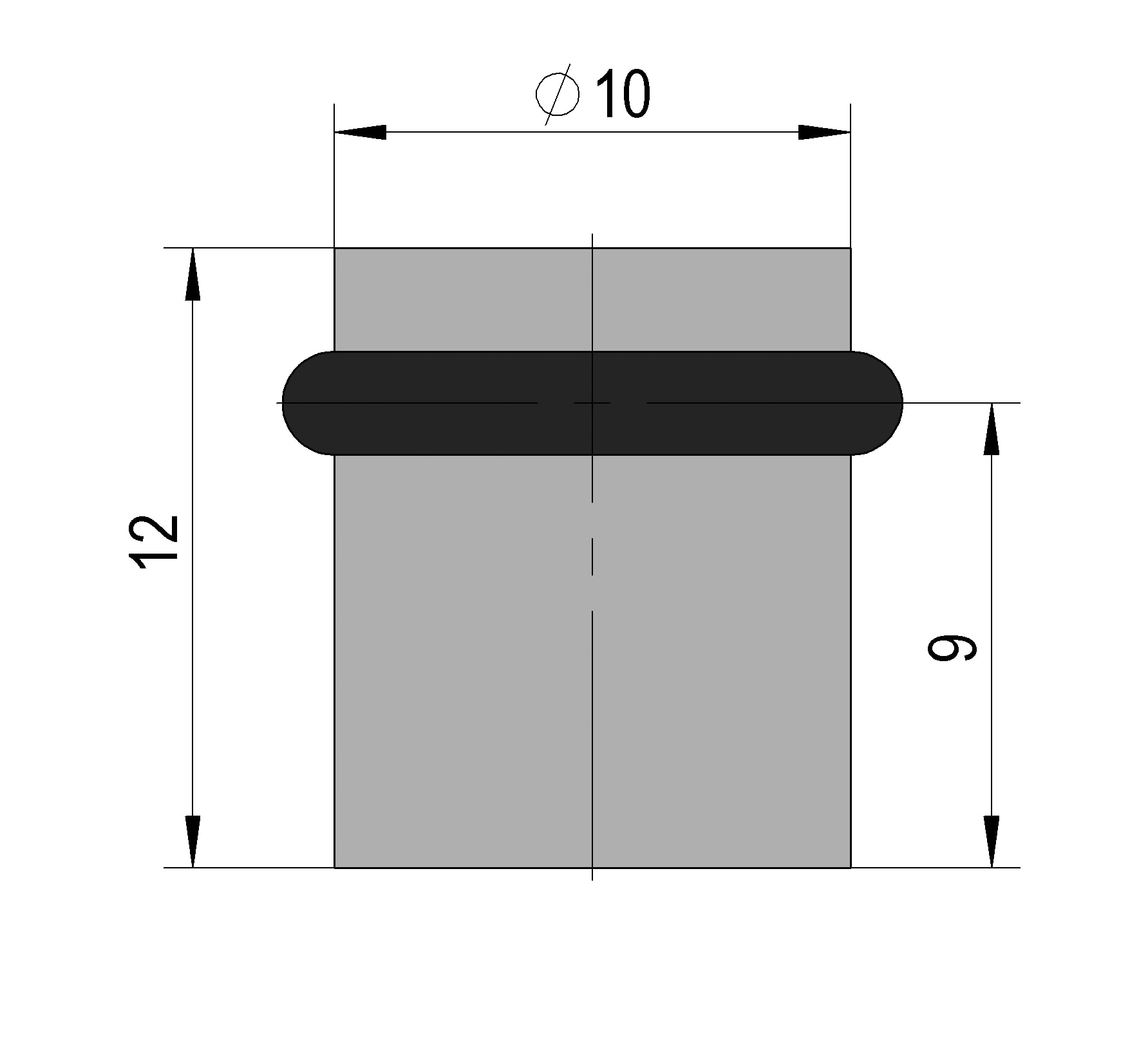

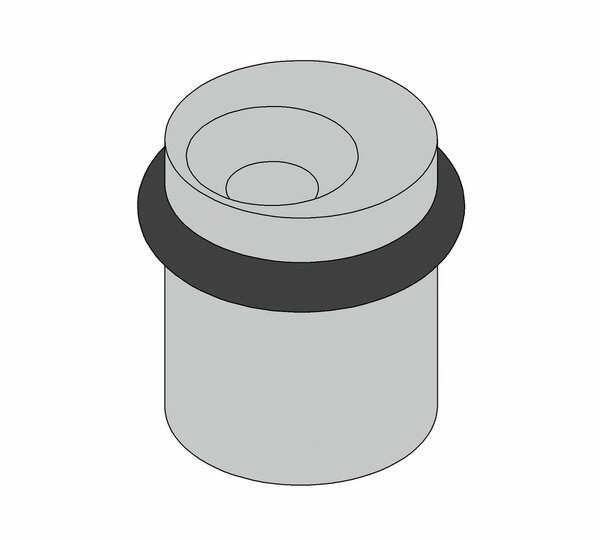

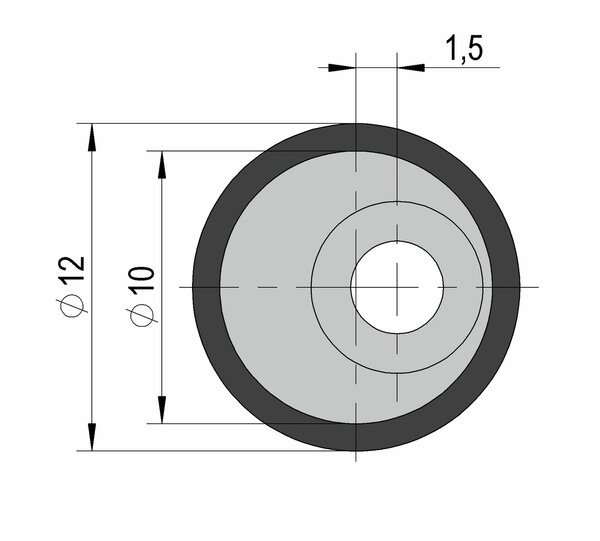

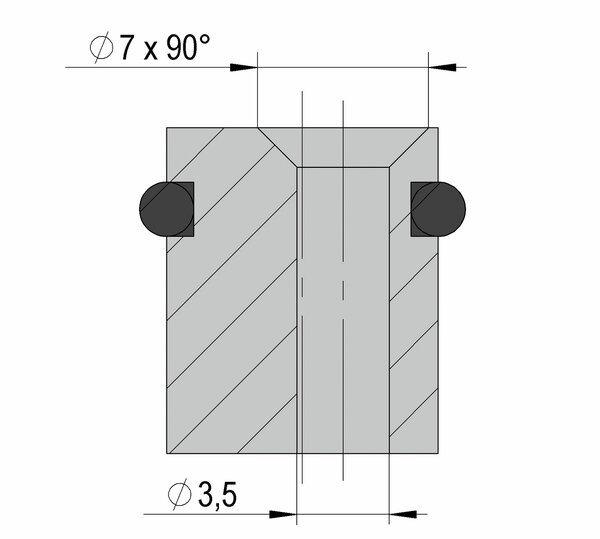

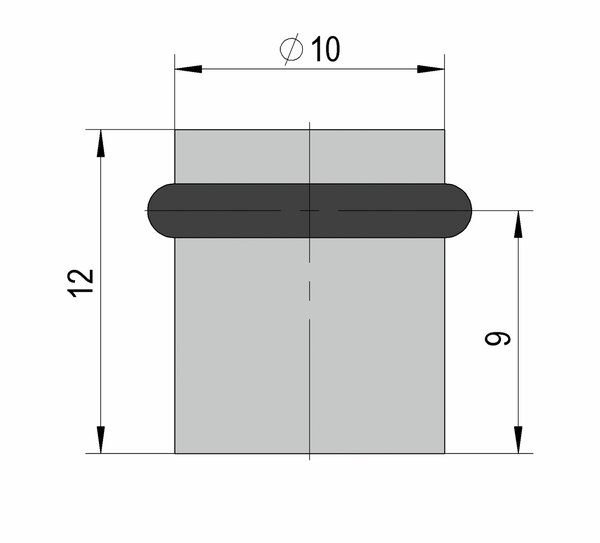

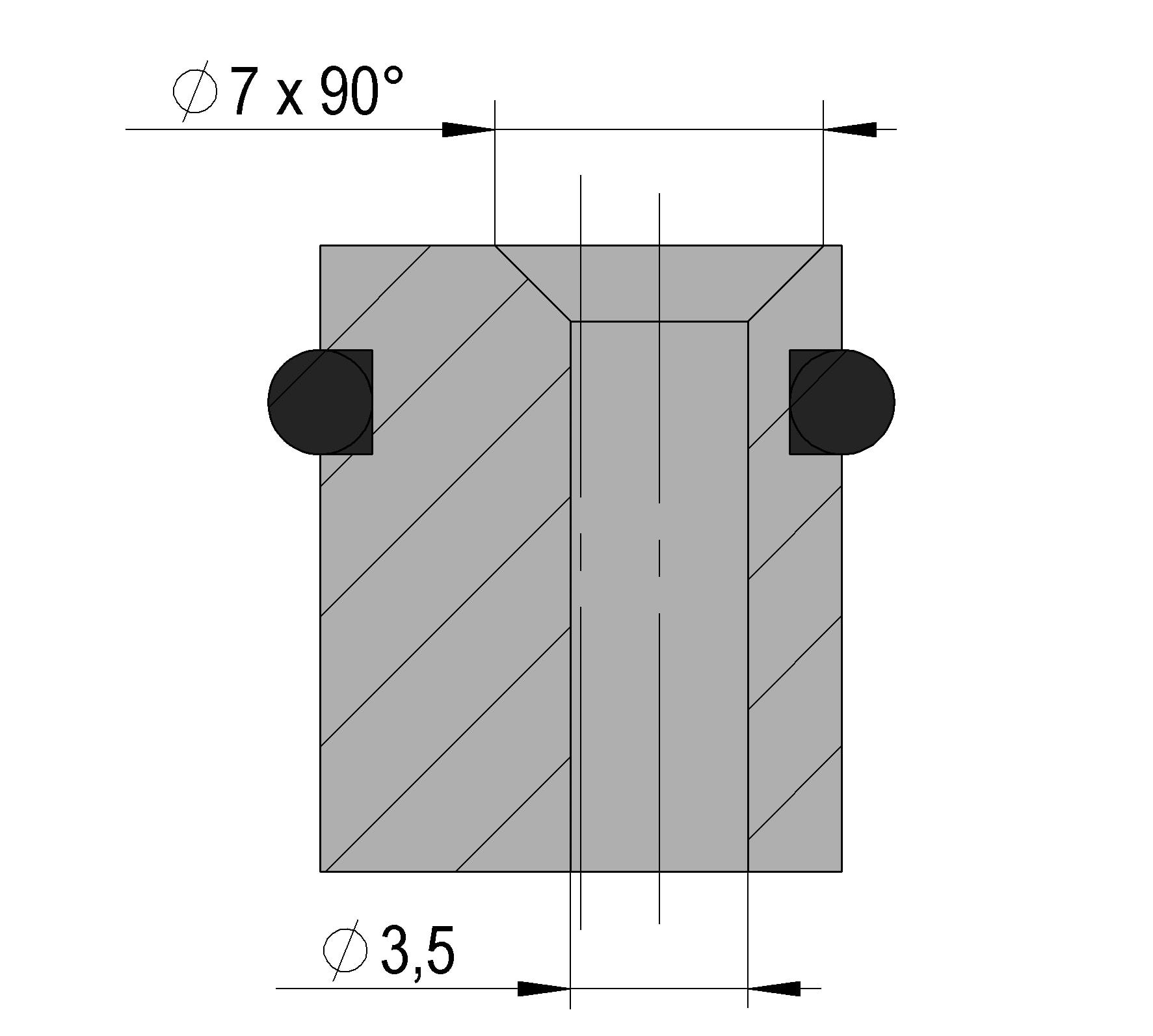

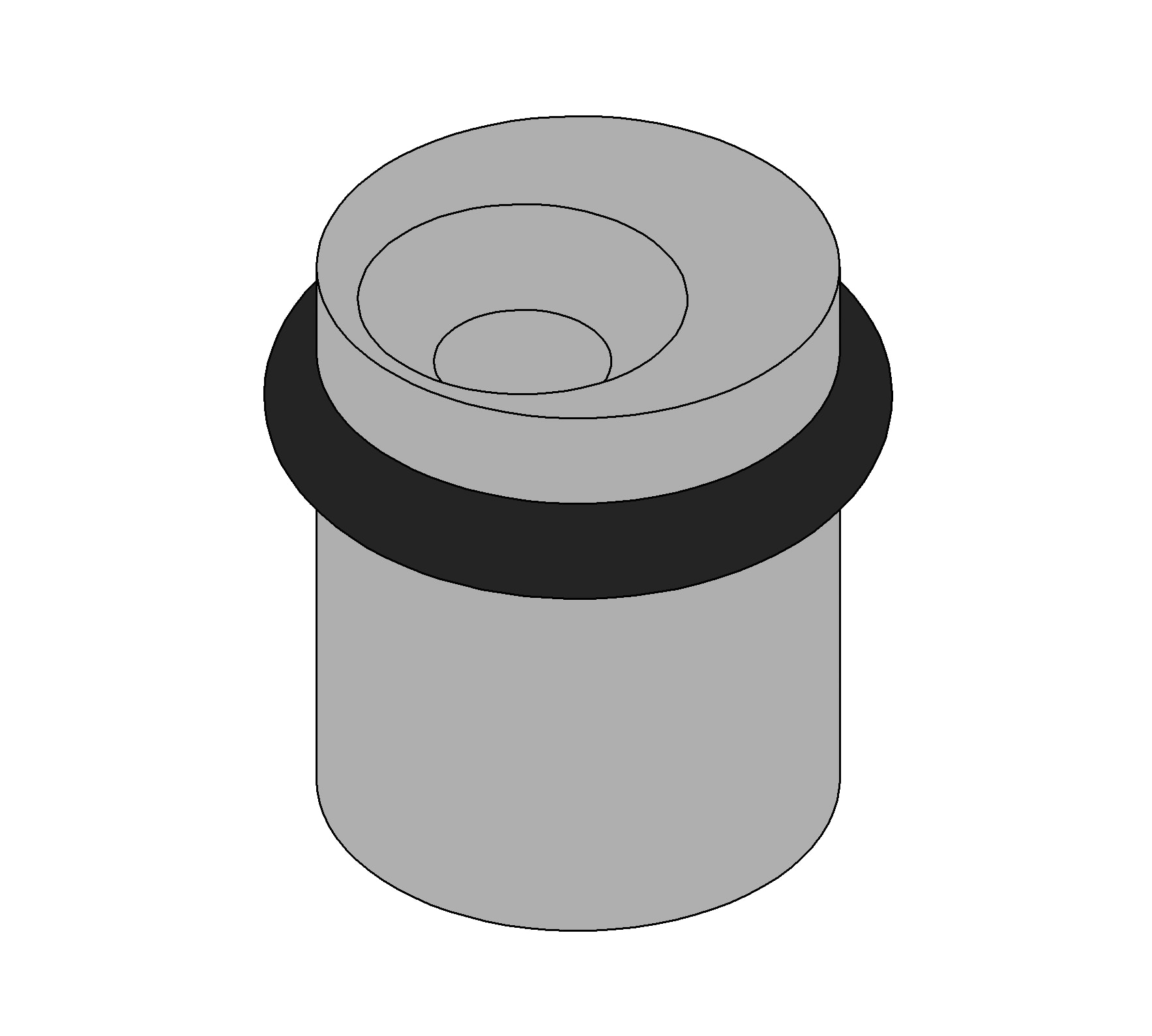

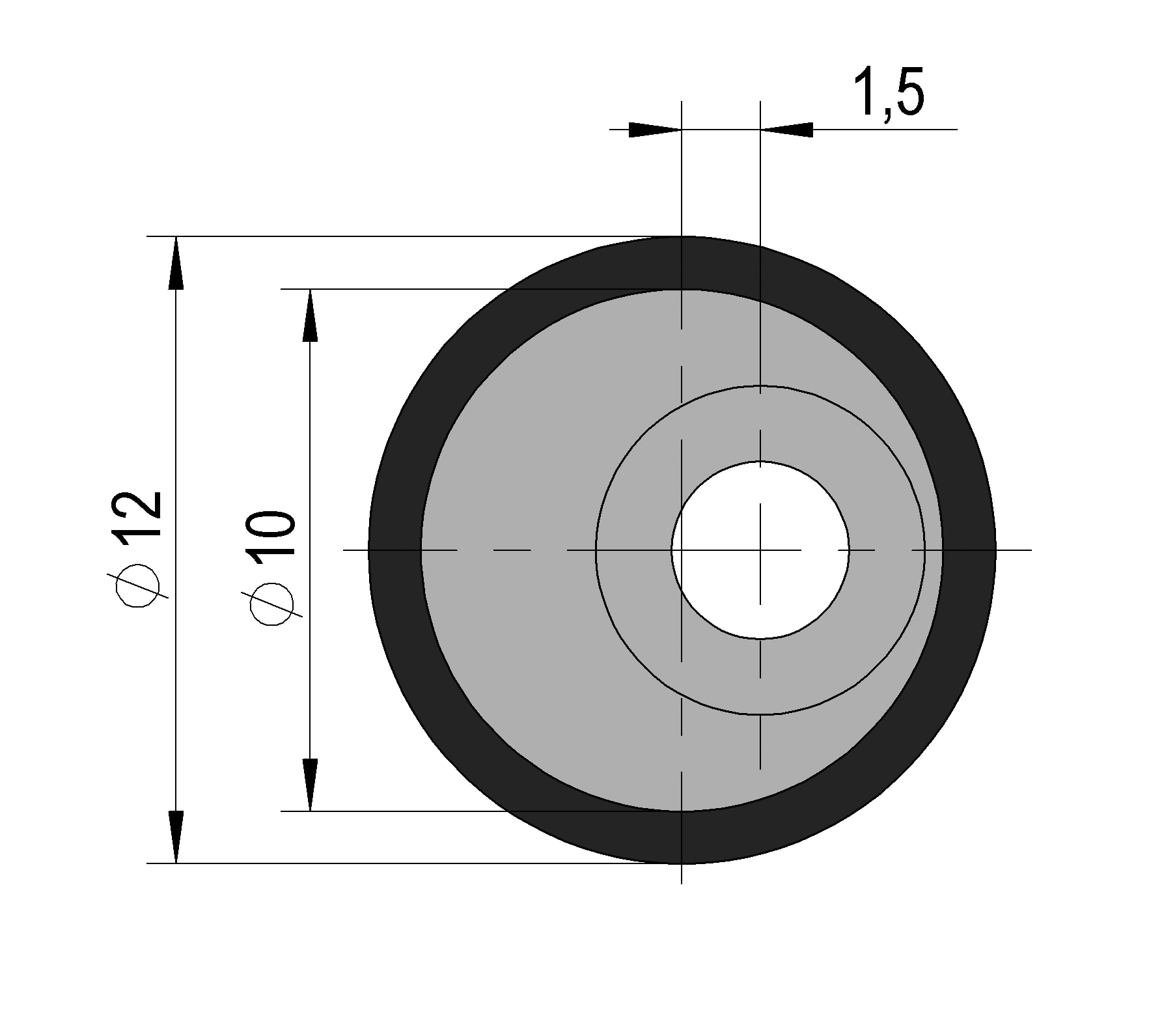

Drawings

jpg
jpg
jpg
jpg
For more drawings please log in:
