Glass shelf support

Product number: BO5200047

Description

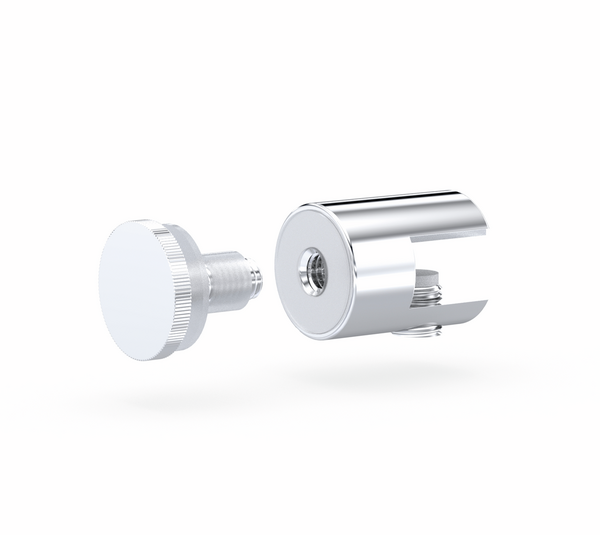

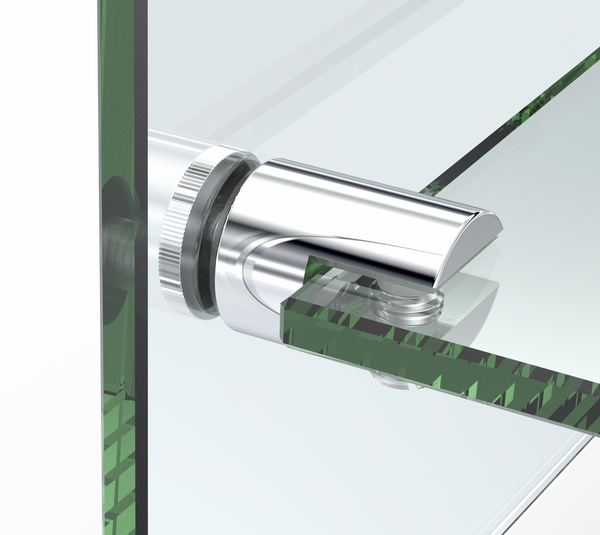

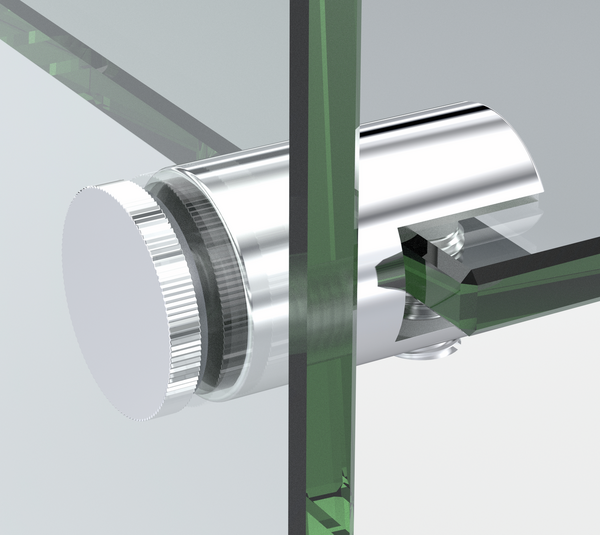

Glass shelf support made of solid brass for all-glass display cabinets. The individually adjustable clamp reliably prevents the glass shelves from falling down. A simple glass hole is sufficient for fastening. Supplied with plastic washers and sleeve.



Your Advantages

  • Clamped glass shelves
  • Available in several versions

Technical details

Bore diameter
10 mm
Degree of gloss
Shiny
Diameter
20 mm
Fastening type
Clamped
Glass processing required
Yes
Glass thickness
6 - 10 mm
Length
26 mm
Material
Brass
Model
One-sided
Mounting type
Glass-Glass
Package contents
1 Piece
Shape
Round
Surface
Chrome-plated
Show all Show less

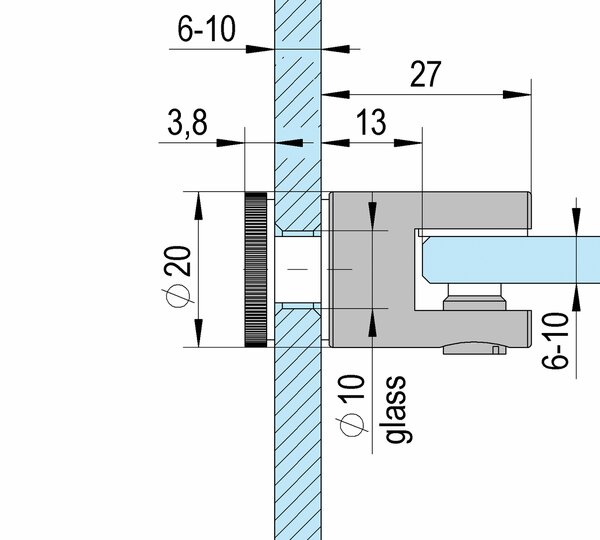

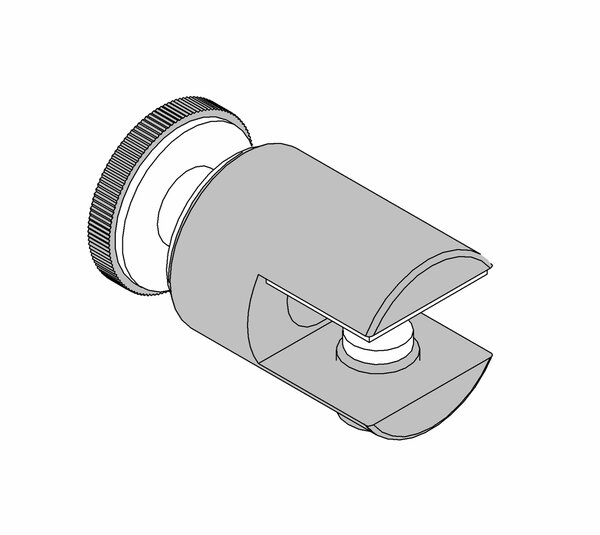

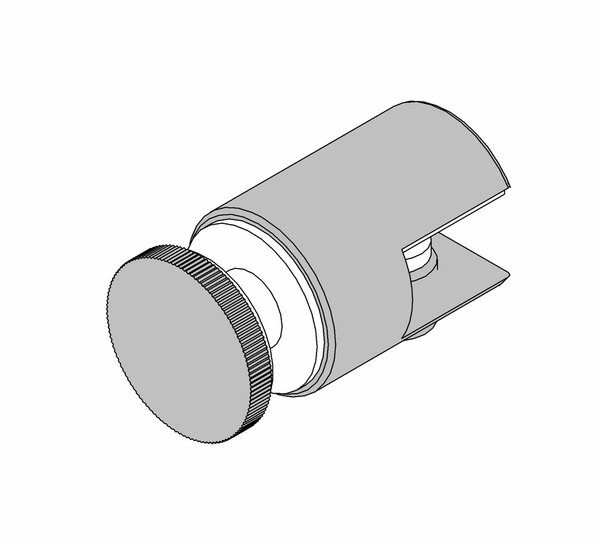

Drawings

jpg
jpg
