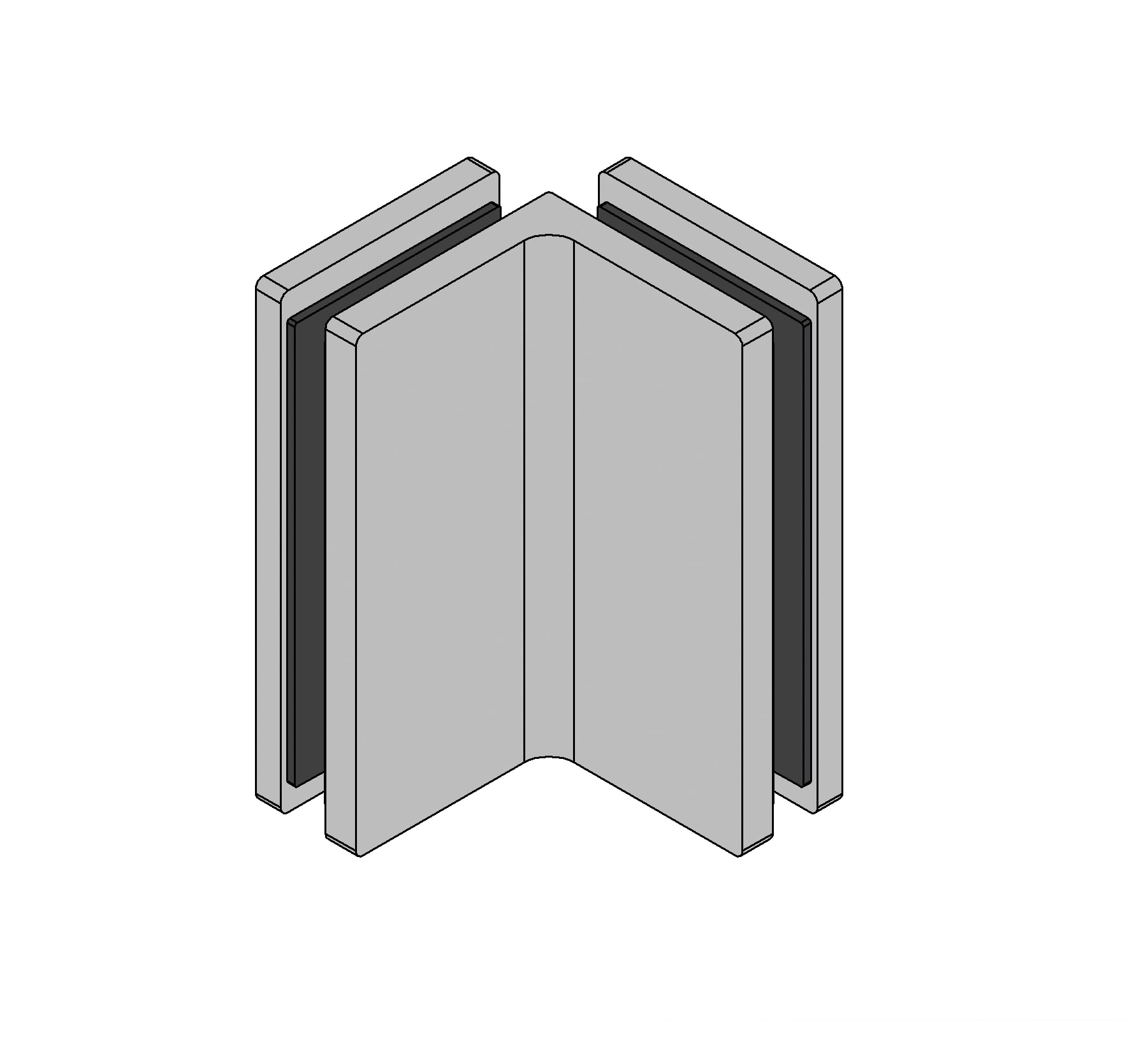

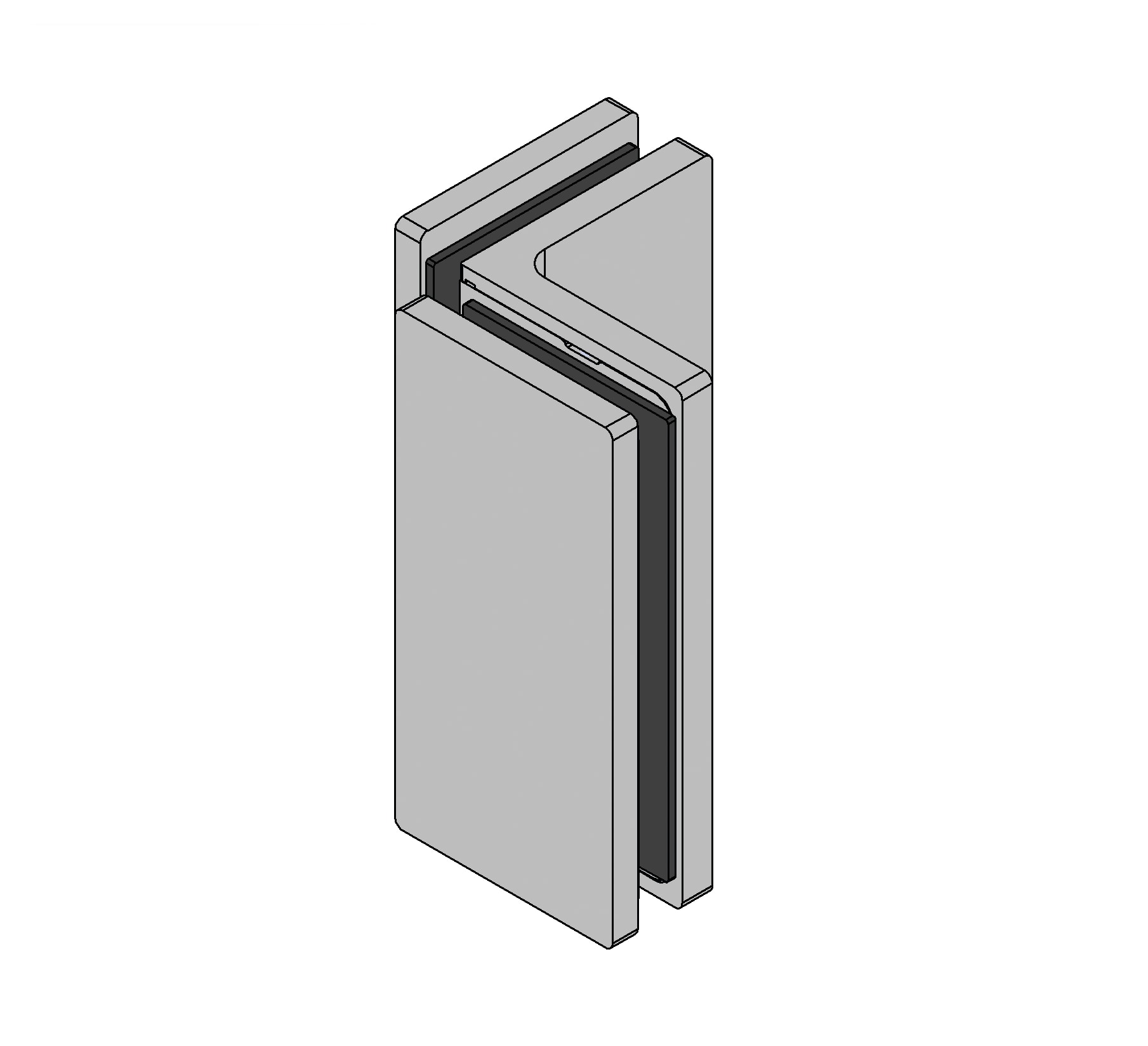

Madrid angle connector, glass-glass 90°

Product number: BO5215434

Description

The 90° glass-glass Madrid angle connectors enable cost-effective installation of a 90° glass corner connection, for example for glass showers in a U-shape. Only glass drill holes are required.



Show all Show less

Your Advantages

  • Concealed screws
  • Only glass drilling required

Technical details

Angle
90°
Degree of gloss
Shiny
Flush
No
Glass thickness TSG
6 - 10 mm
Material
Brass
Mounting type
Glass-Glass
Package contents
1 Piece
Product series
Madrid
Rise/fall function
No
Screws on the belt concealed
Yes
Surface
Chrome-plated
Show all Show less

Downloads

pdf
Instructions
Maintenance and Care Instructions
pdf
Instructions
BO52154xx - Madrid - connector - glass-glass 90° - Instruction Manual

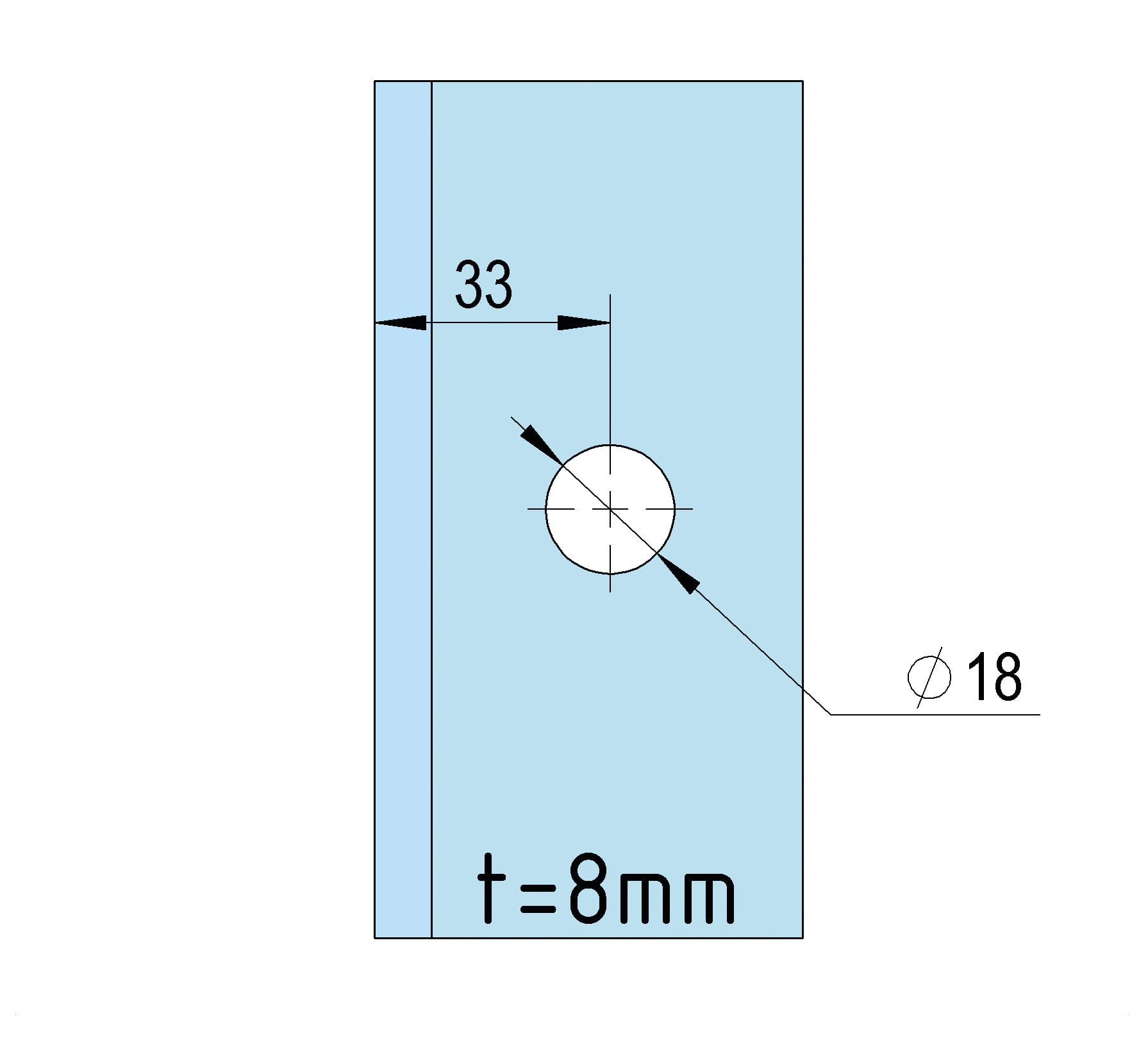

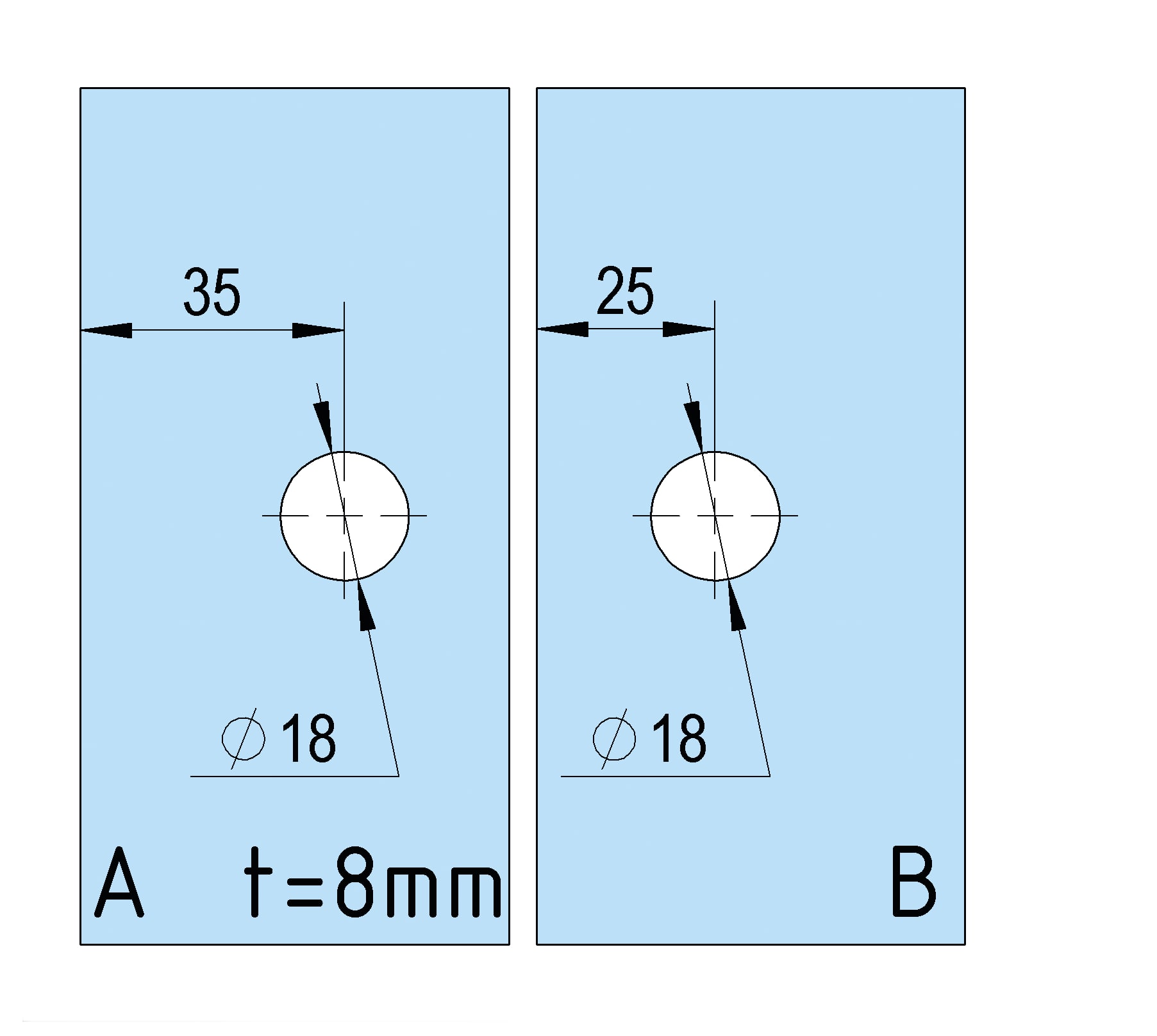

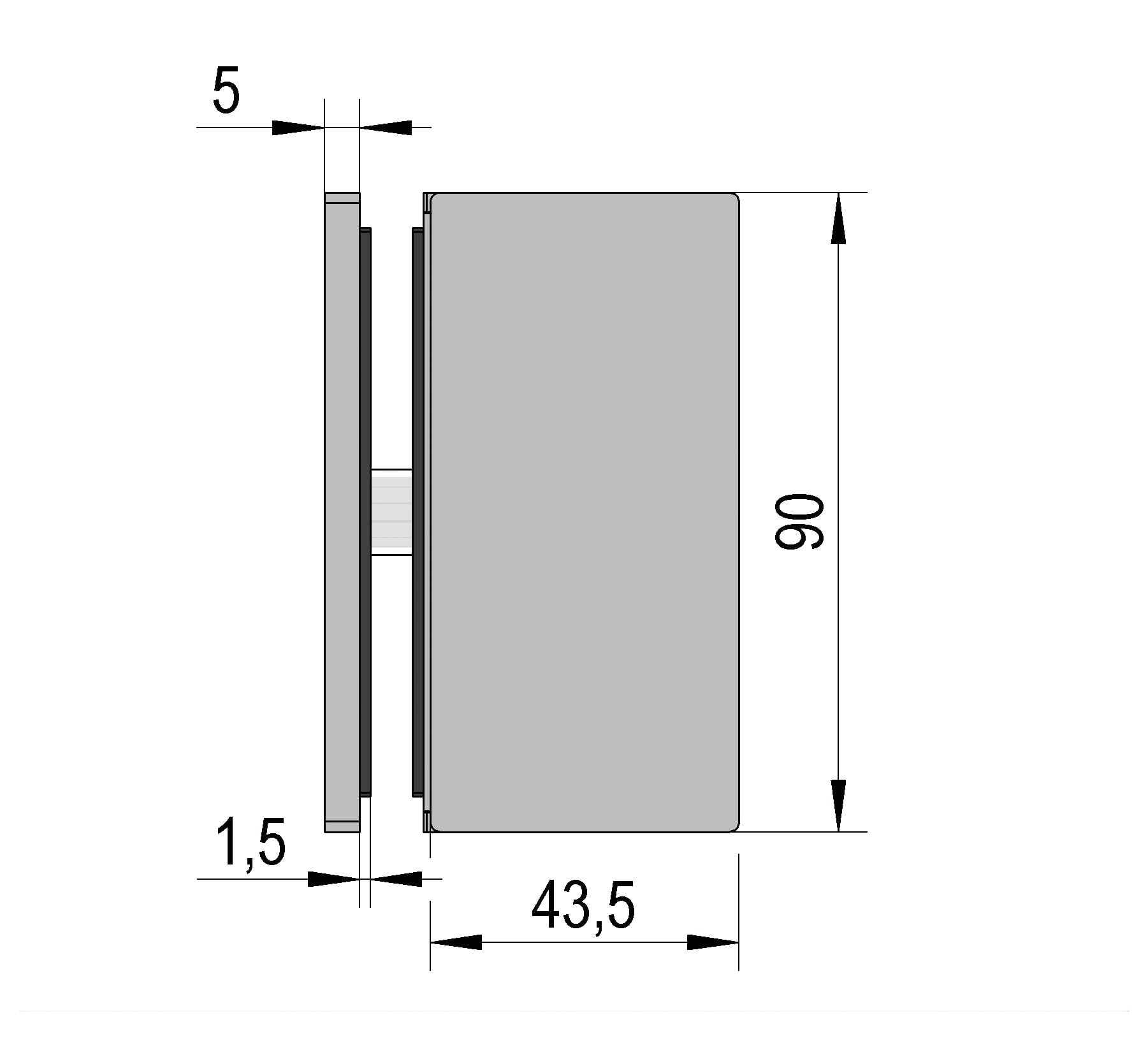

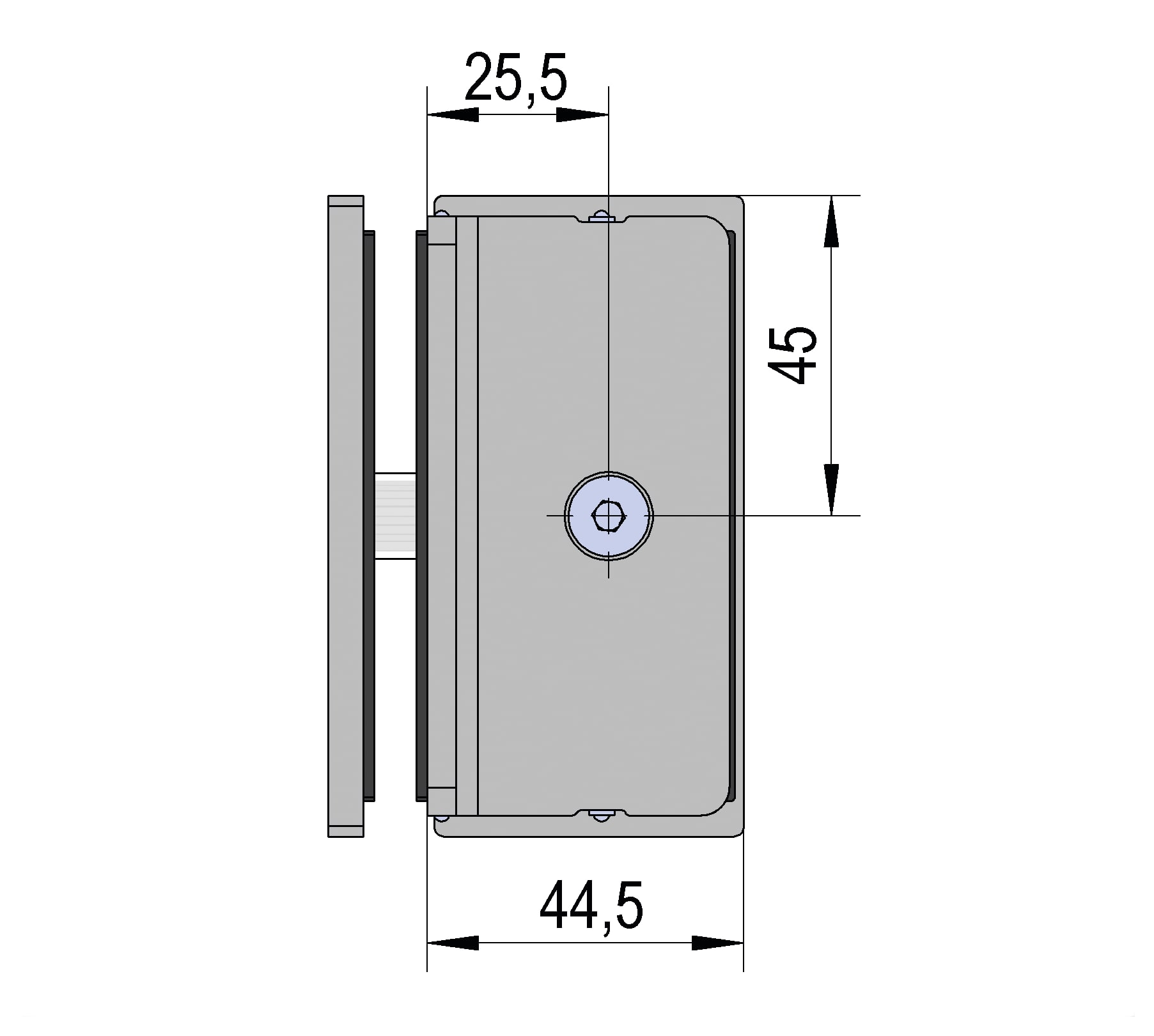

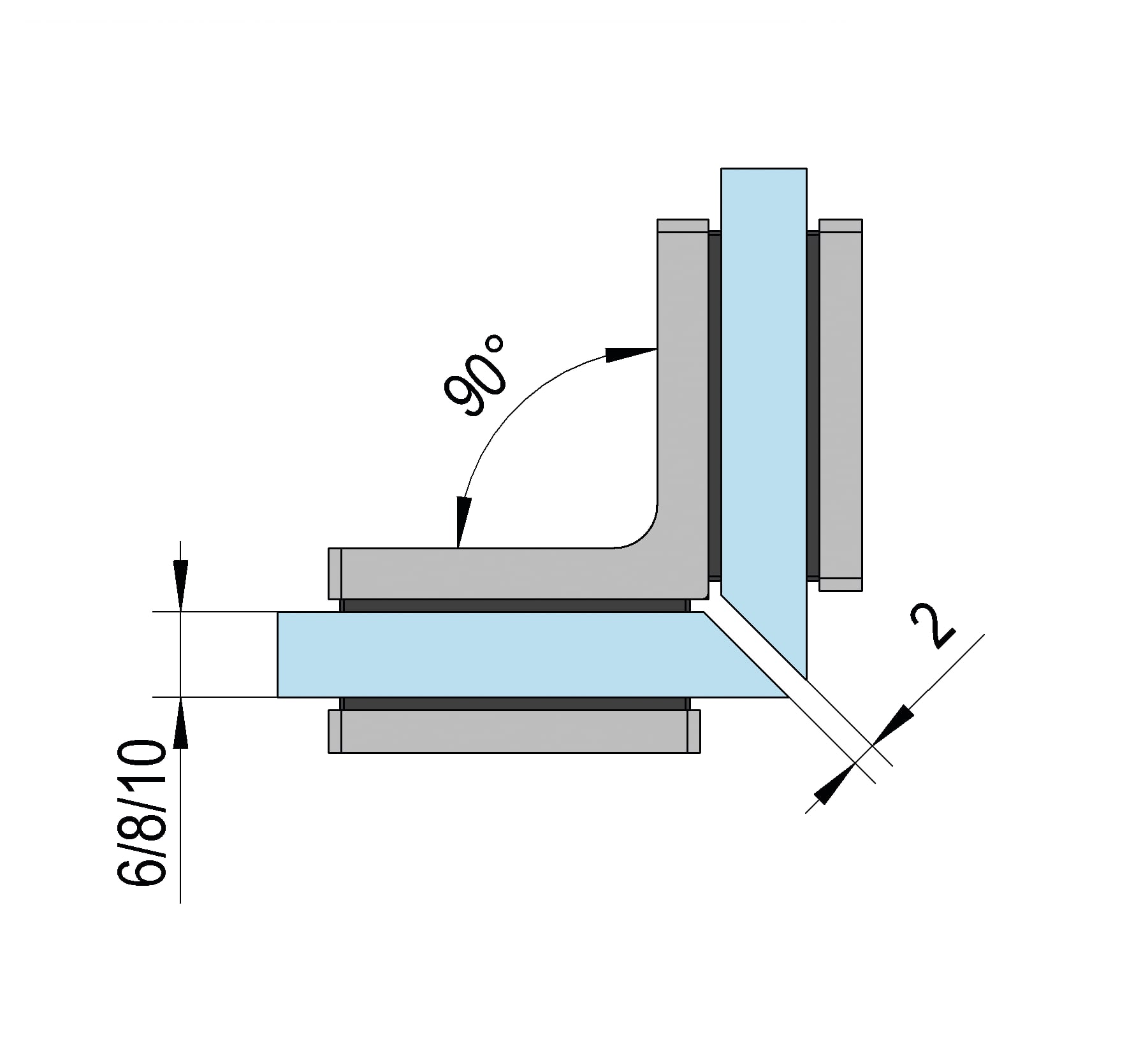

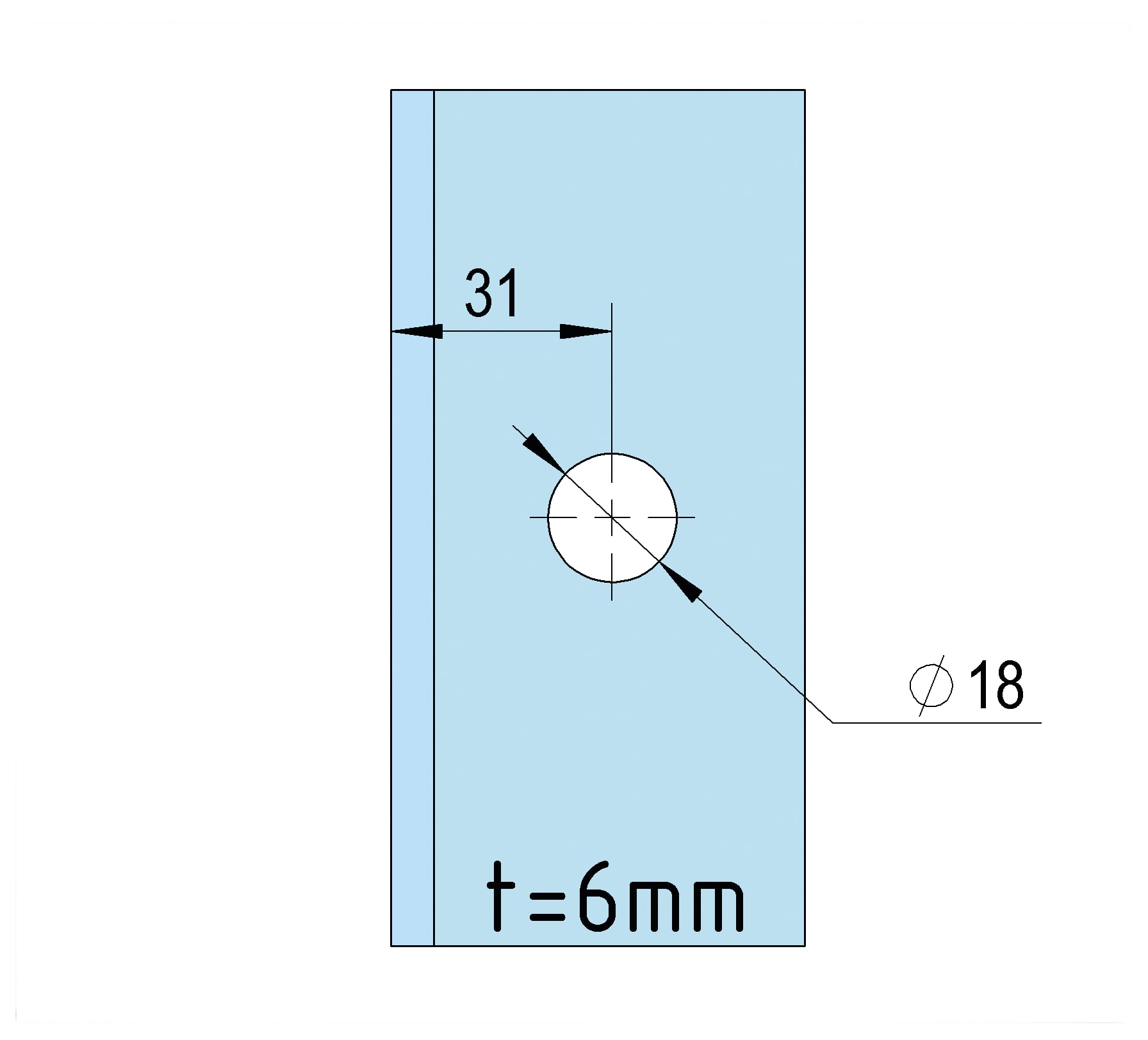

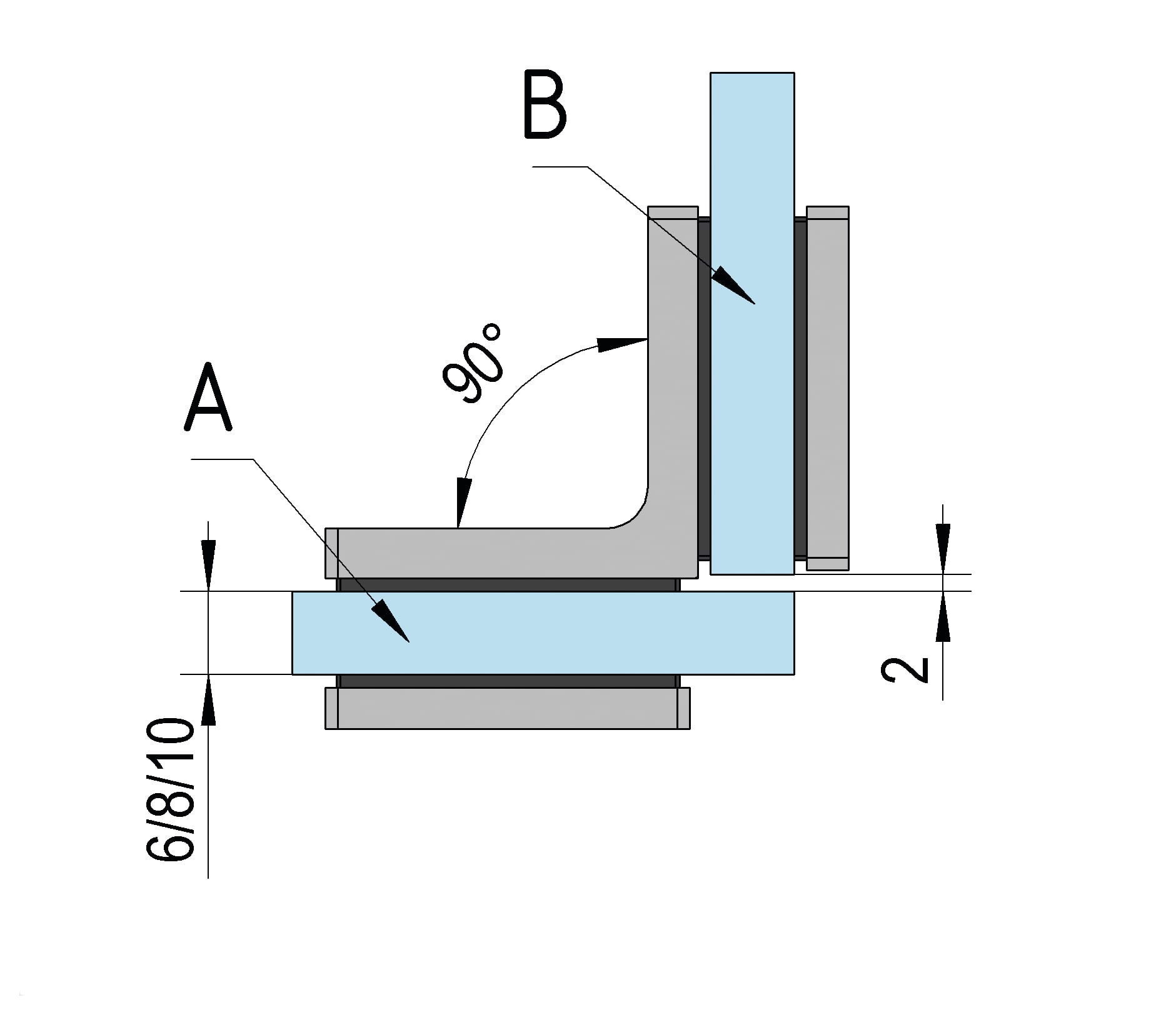

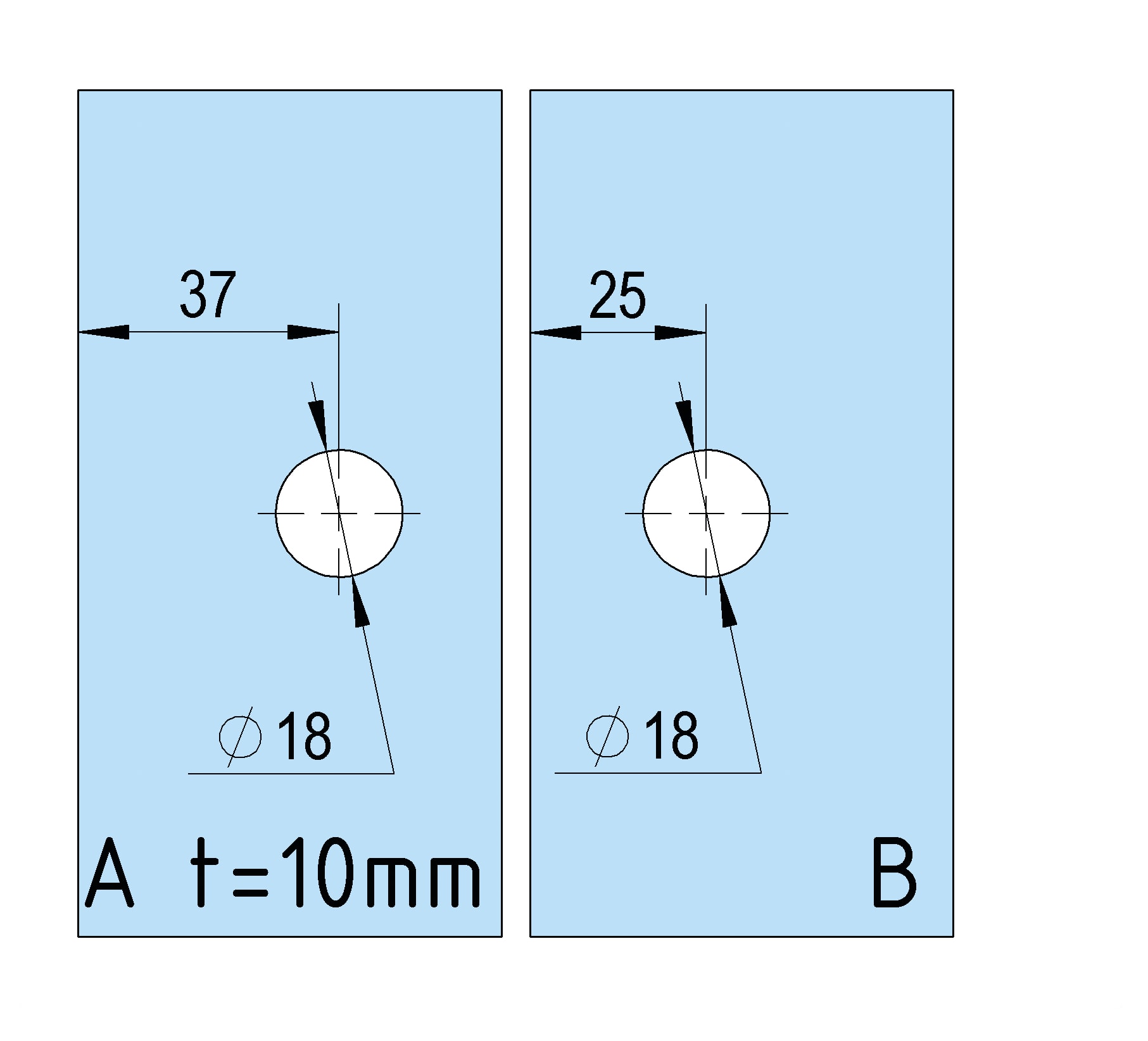

Drawings
