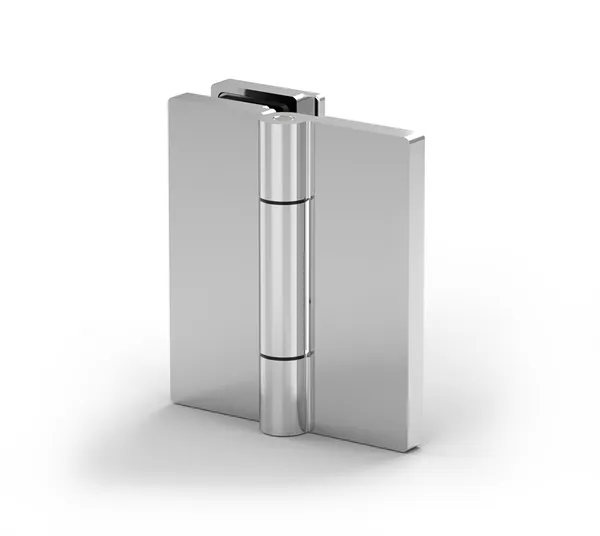

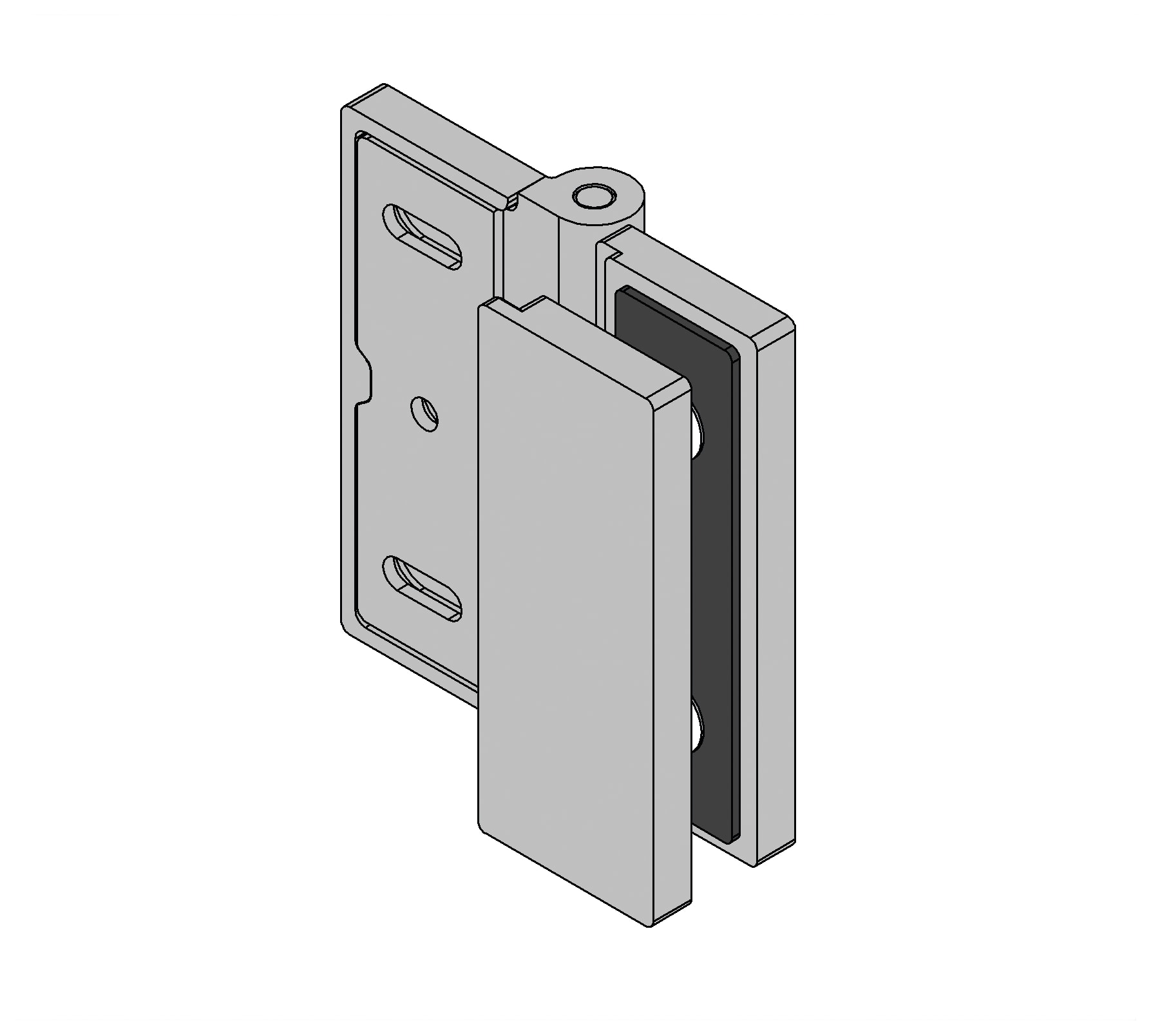

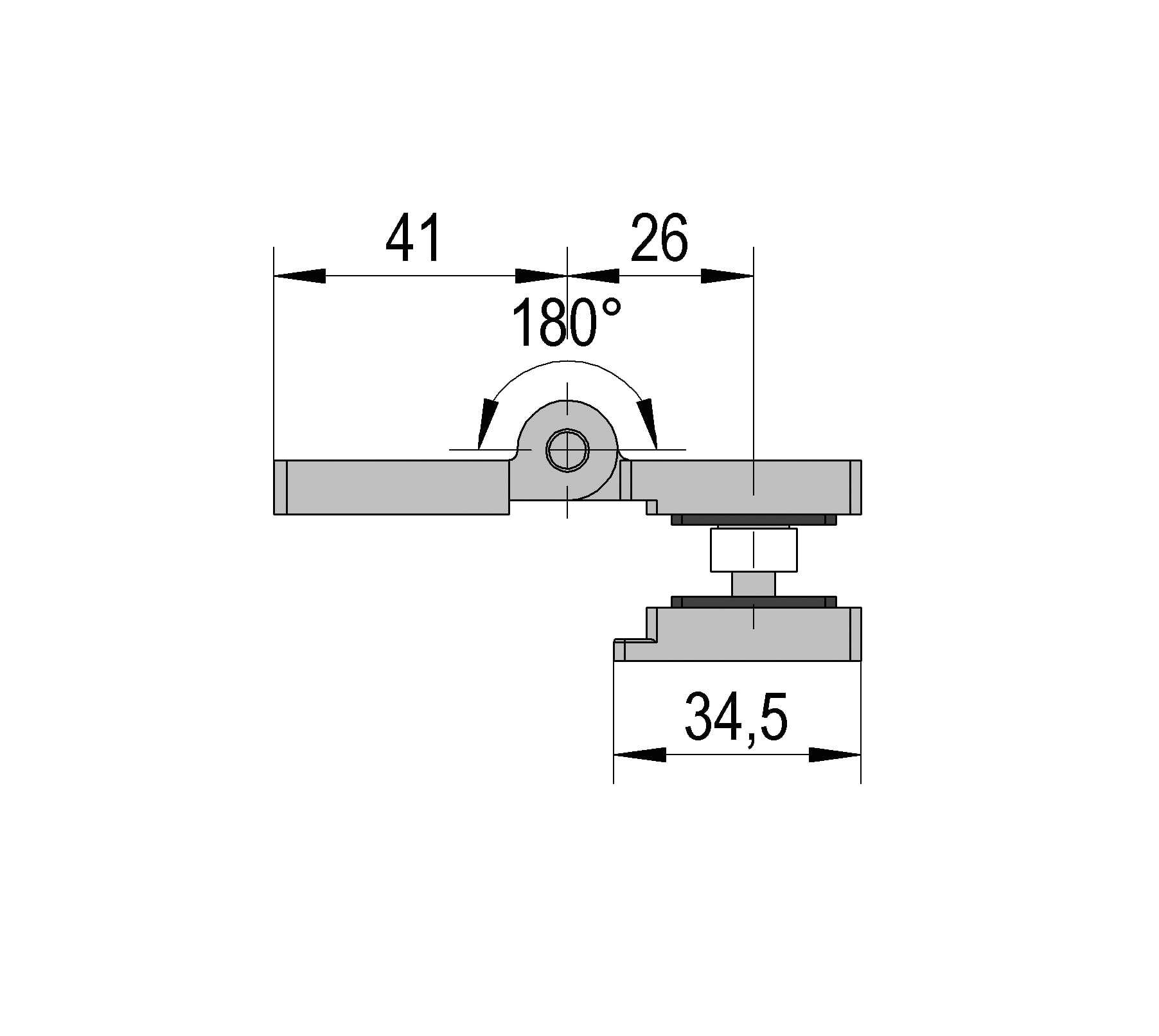

The Madrid rebate shower door hinge has a load capacity of 45 kg. Doors up to max. 1 x 2.25 m can be achieved. The hinge for 180° glass-wall installation is designed so that the inner walls of the shower remain free of fittings.

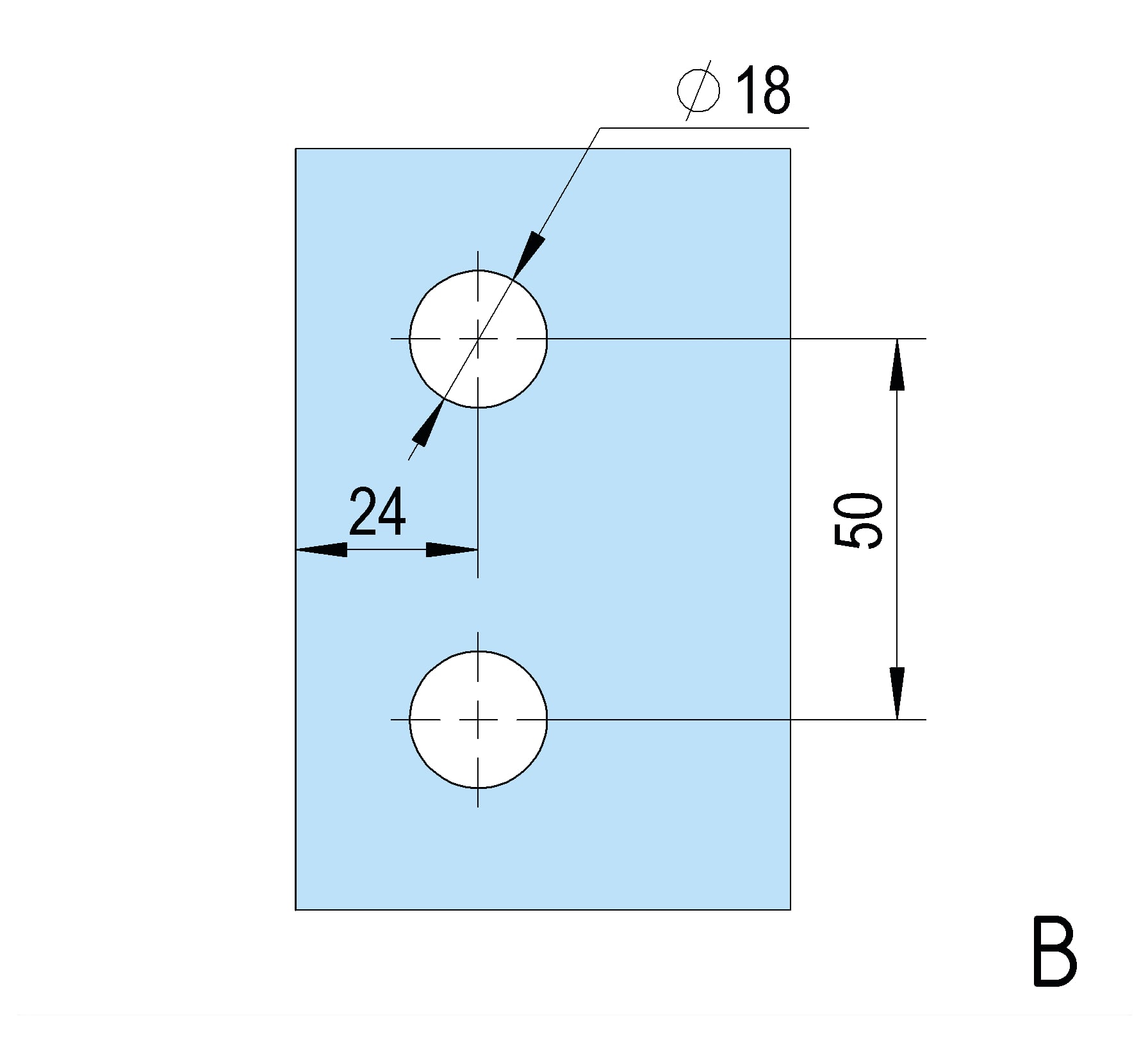

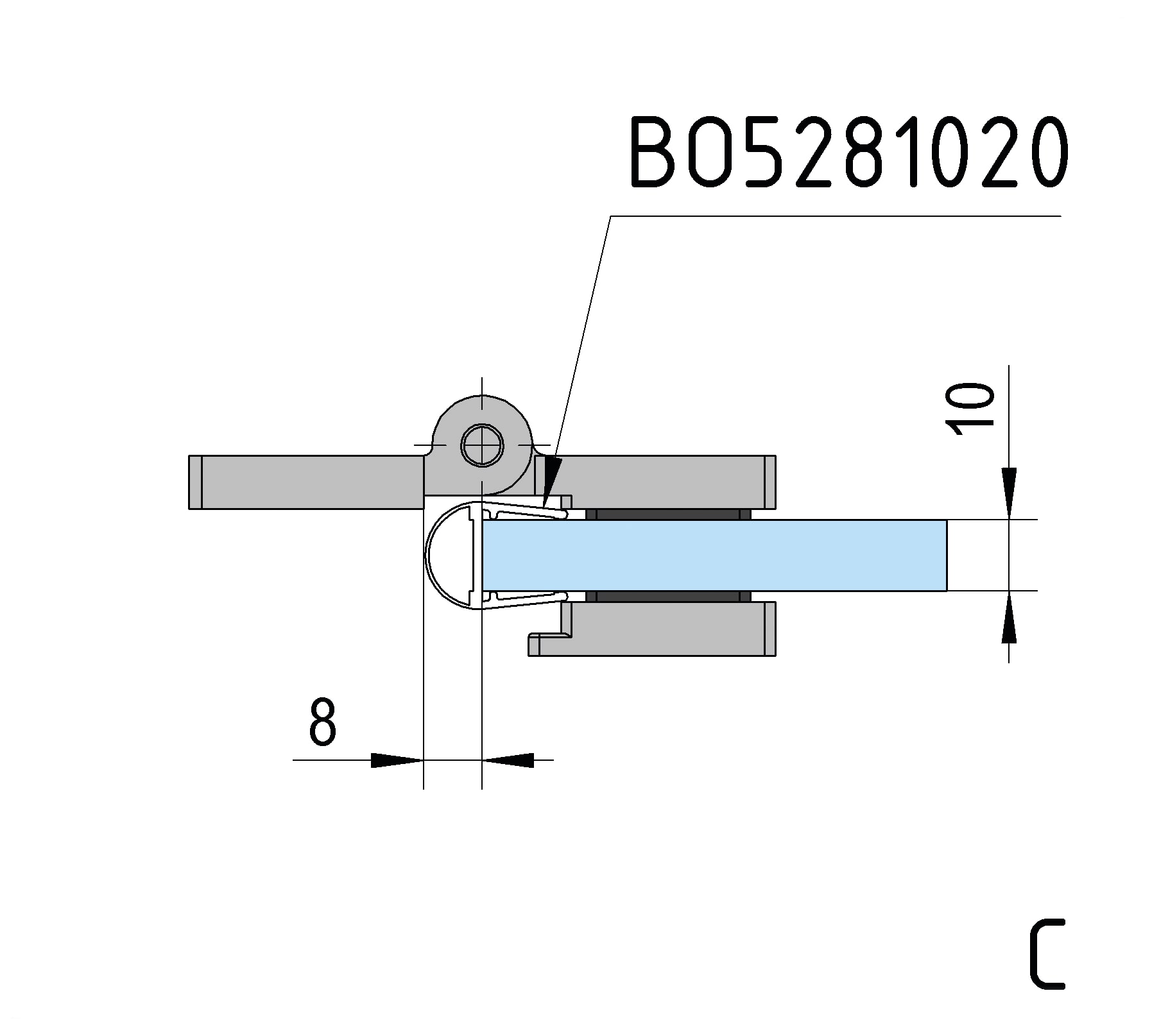

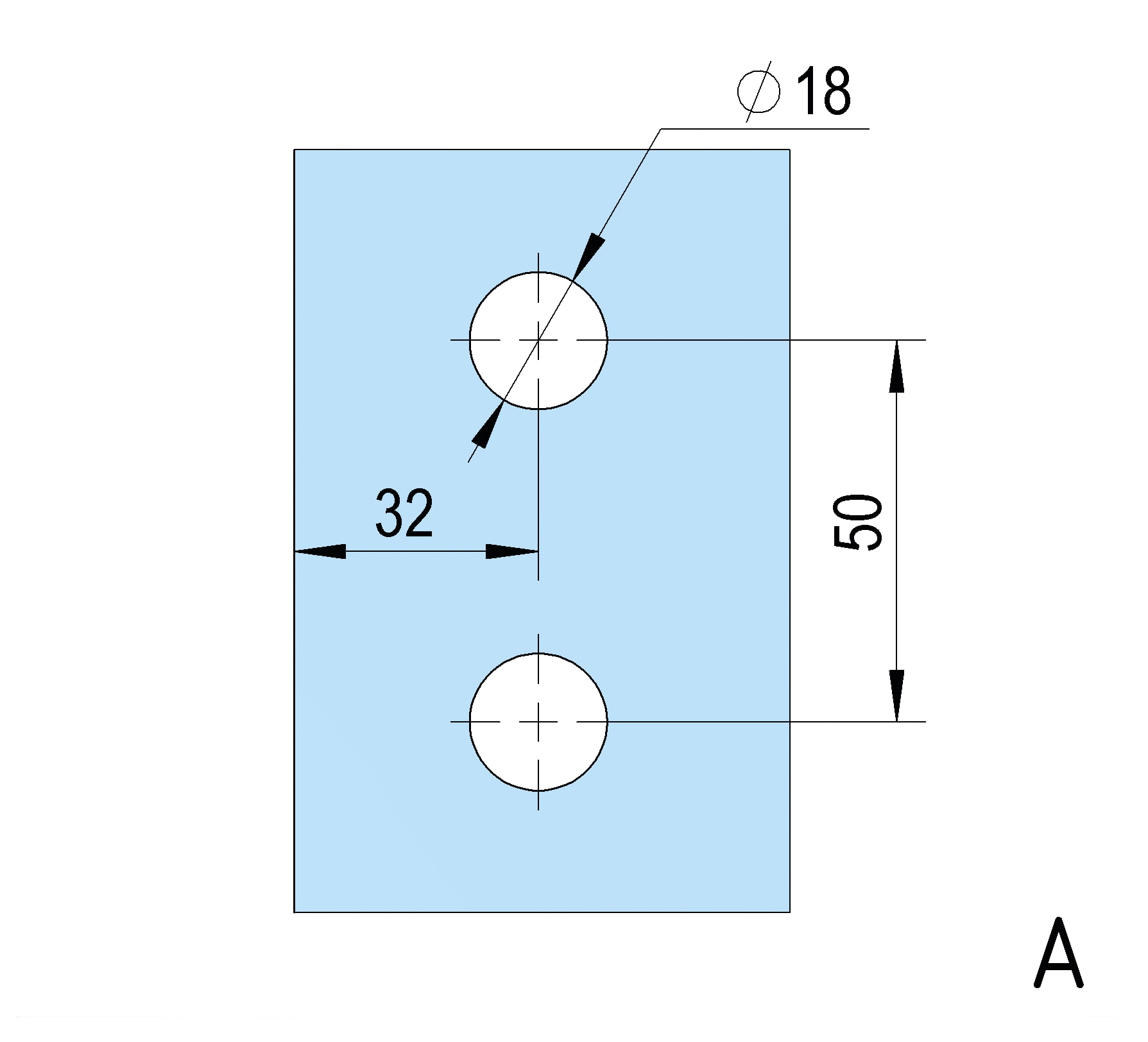

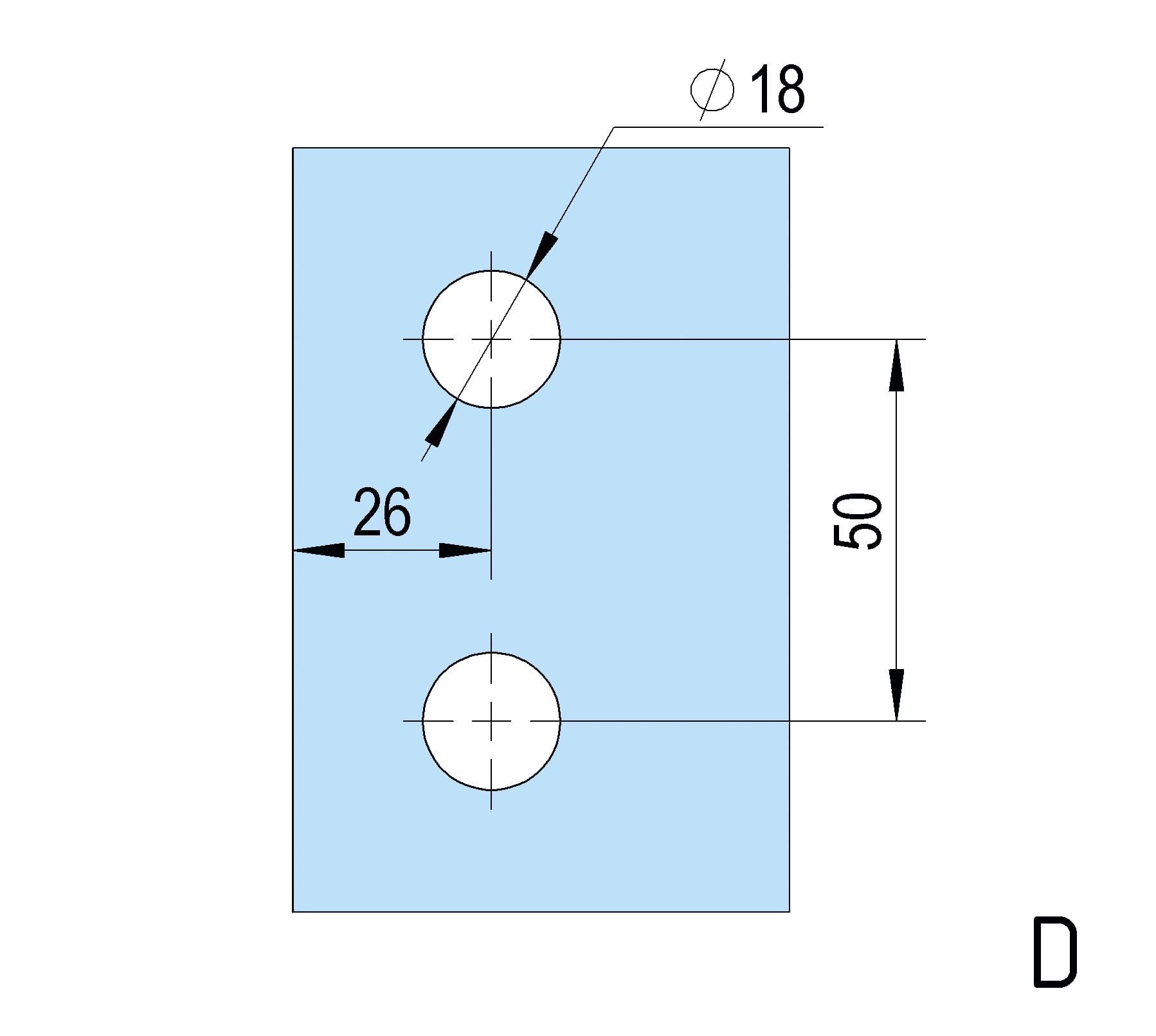

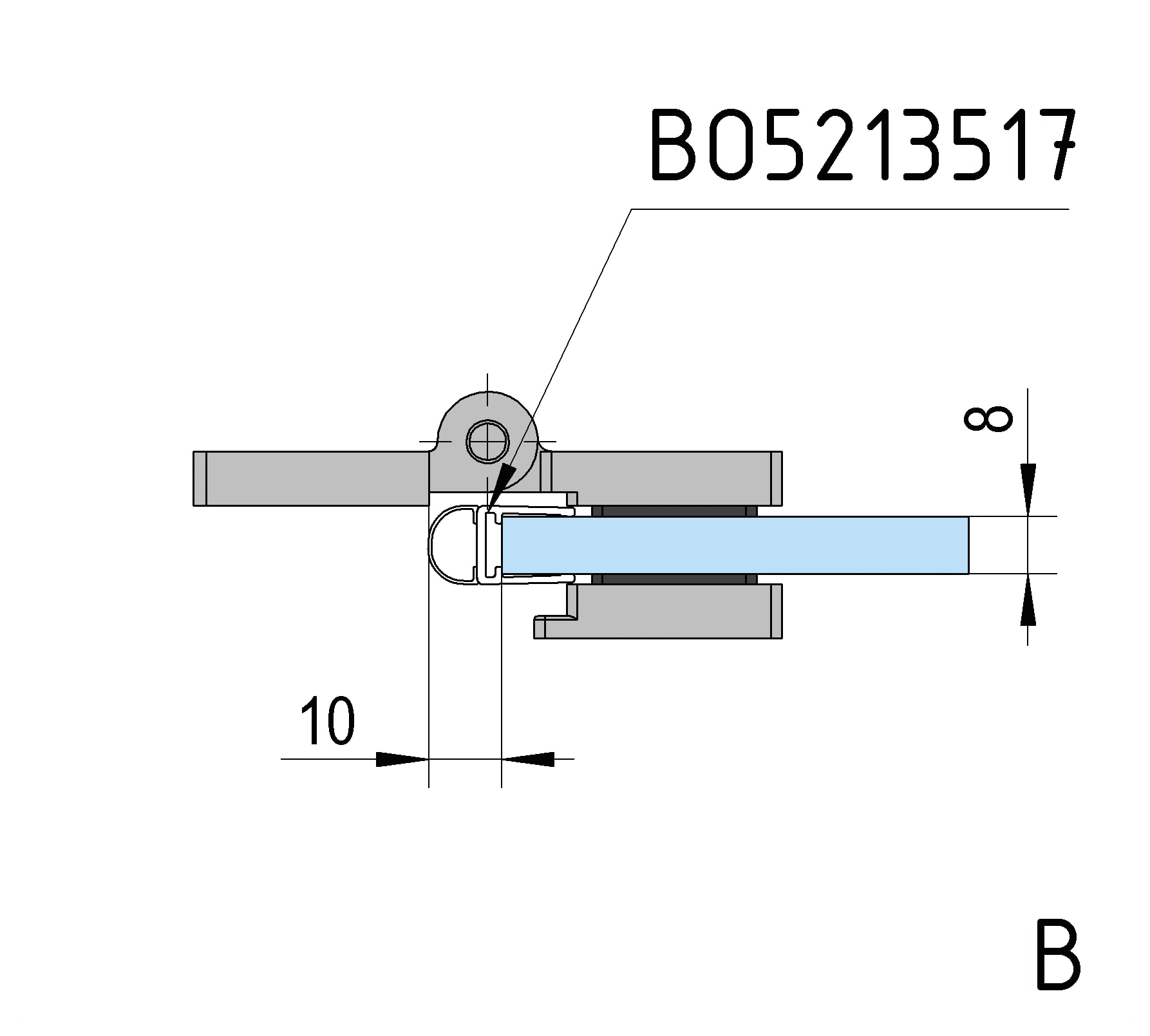

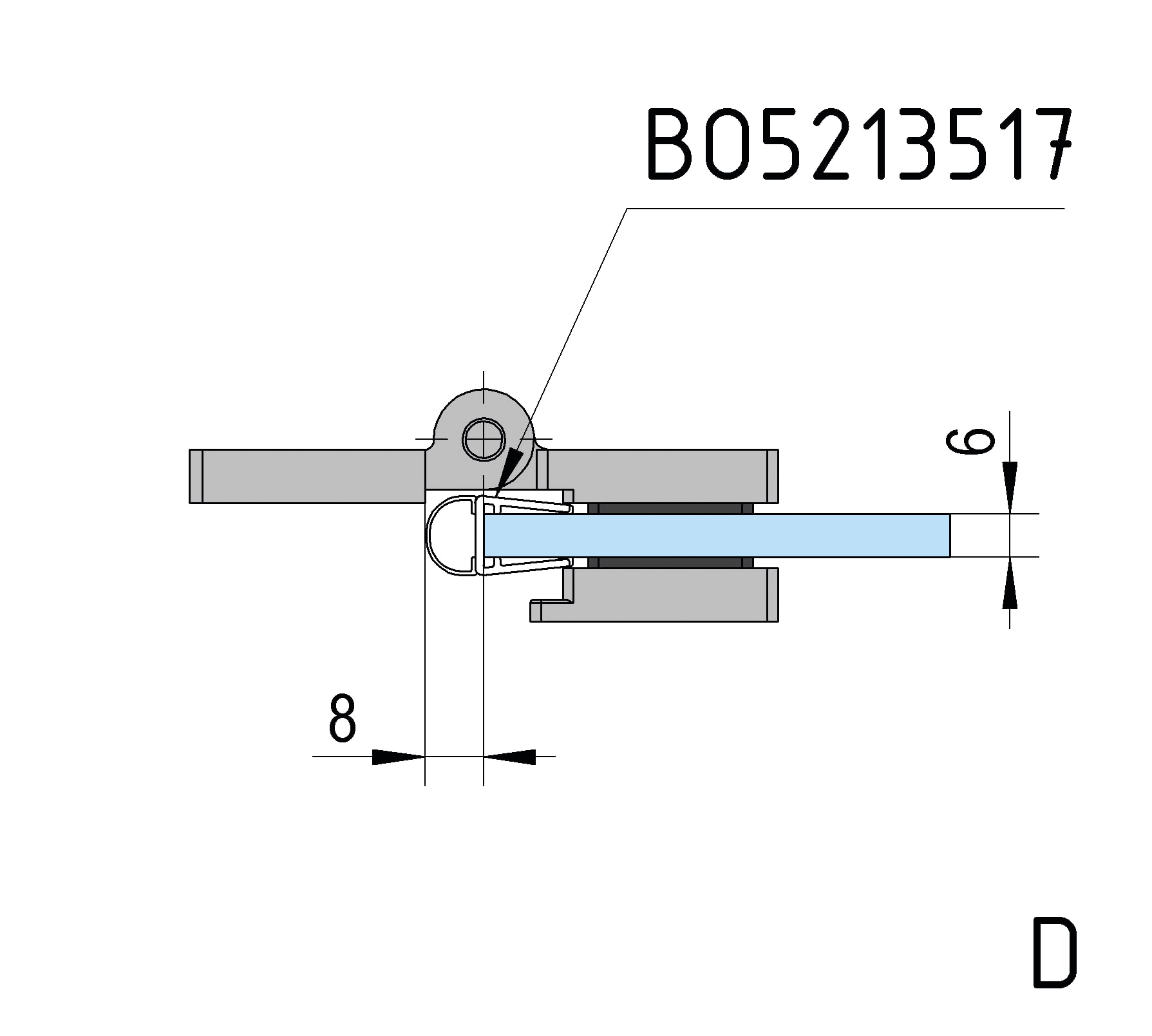

All screw fittings on the strap are concealed so that nothing detracts from the high-quality look. The design is classically angular and therefore timeless. The sealing profiles can be guided through the hinge. No glass cut-outs are required for installation, only glass drill holes. You can find suitable measurement sheets for your installation situation here.
About the product series Madrid:
Madrid shower door fittings are an elegant solution for glass shower doors. The portfolio consists of numerous variants and is therefore suitable for almost all types of installations. A true all-rounder. The hinges are designed as single-action door hinges and enable the sealing profiles to be guided through the hinge. The design is characterised by its straight lines and is very popular in modern bathrooms. No disruptive screw fittings are visible. The Madrid shower door hinge enhances any glass shower!
