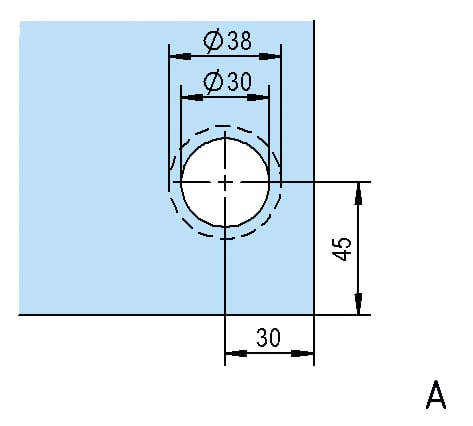

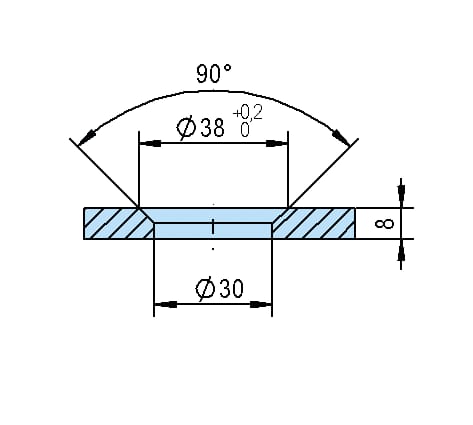

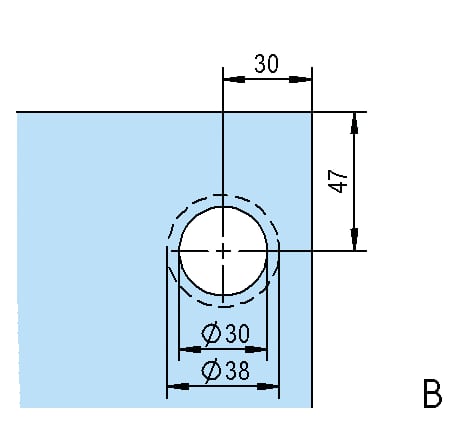

The Plan Artist FM flush-mounted swing shower door hinge has a load-bearing capacity of 38 kg. Doors up to max. 0.9 x 2.10 m can be realised. The hinge is designed for modern and space-saving pentagonal showers, for example. Only simple glass drill holes are required in the side panel.
The flush-mounted design allows easy cleaning of the glass panes. The hinge has a self-closing function up to an opening angle of approx. +/- 60°. The lift-and-lower function is particularly convenient, with which the shower door fittings close easily and silently as if by themselves. Due to the lowering of the door when closing, a better seal is achieved due to an increased sealing pressure. For all those who appreciate something special
About the product series Plan Artist FM:
The Plan Artist FM series is characterised by its linear, angular design. The shower door hinges are flush-mounted on the inside and have a raise/lower mechanism. The perfect solution for accessibility or sophisticated showering pleasure in a small space.
*FM = flush-mounted
Application note:

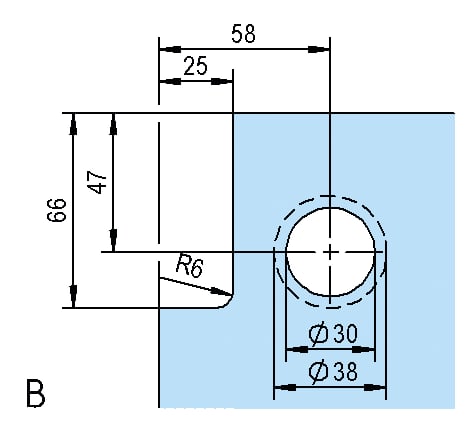

For a flush finish with the fitting, the glass cut-out includes a 16 mm clearance dimension. The glass cut-out must be adapted to insert the seal BO 5213494.
