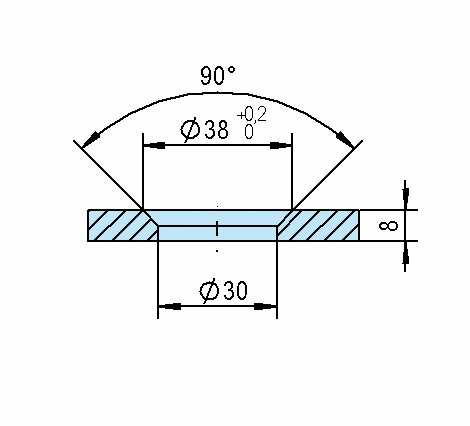

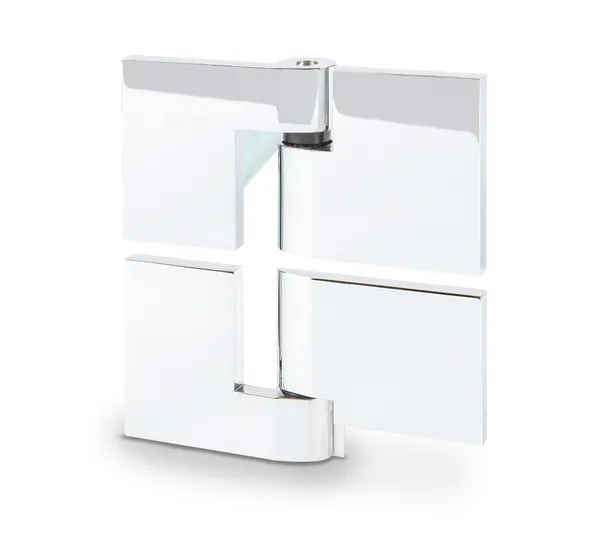

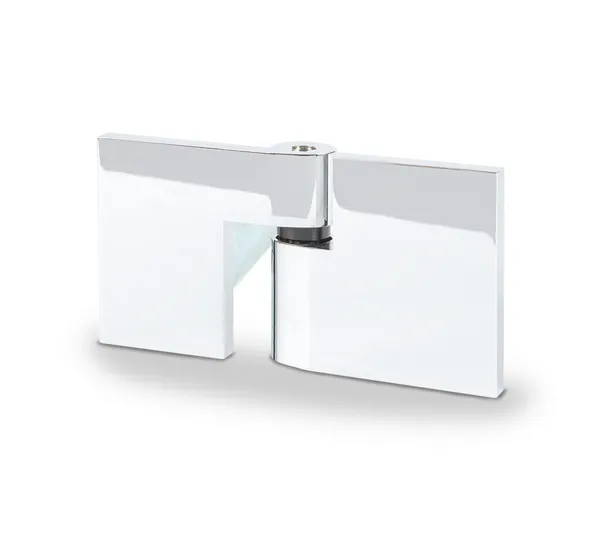

The Plan Artist FM swing shower door hinge has a load capacity of 38 kg. Doors up to max. 0.9 x 2.10 m can be realised. The hinge for 180° glass-glass installation has been developed for modern, large glass showers. The side panel only requires simple glass drill holes.
The flush-mounted design allows easy cleaning of the glass panes. The hinge has a self-closing function up to an opening angle of approx. +/- 60°. The lift-and-lower function is particularly convenient, with which the shower door fittings close easily and silently as if by themselves. Due to the lowering of the door when closing, a better seal is achieved due to an increased sealing pressure. For all those who appreciate something special.
About the product series Plan Artist FM:
The Plan Artist FM series is characterised by its linear, angular design. The shower door hinges are flush-mounted on the inside and have a raise/lower mechanism. The perfect solution for accessibility or sophisticated showering pleasure in a small space.
*FM = flush-mounted
Application note:

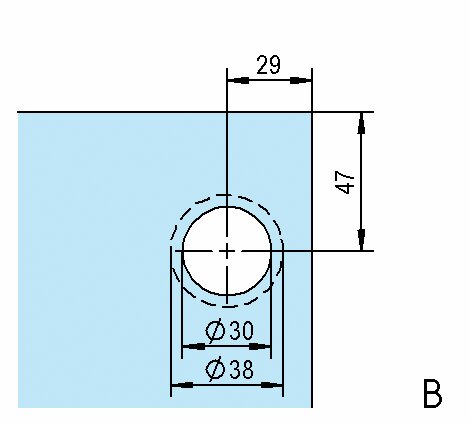

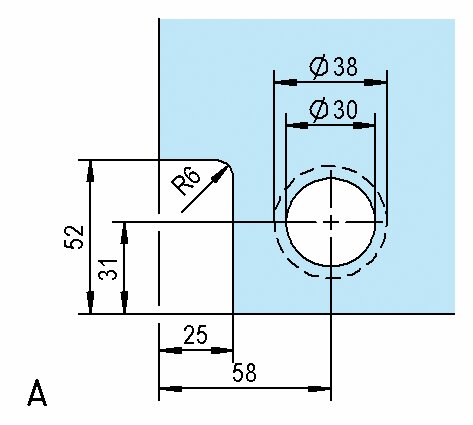

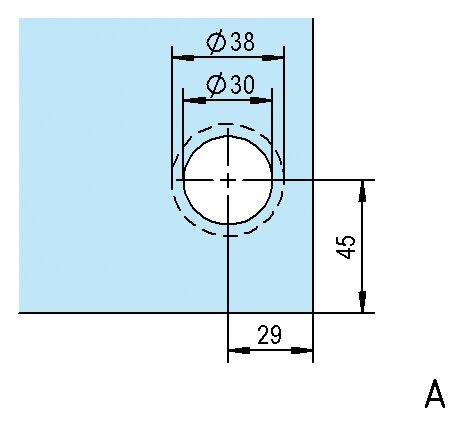

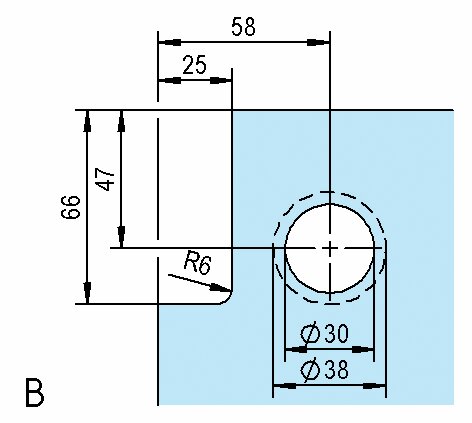

For a flush finish with the fitting a 16 mm deduction is included in the glass cut-out.
To insert the seal BO 5213494, the glass cut-out must be adapted.
