Reinforcement bar set Square 12, glass-wall

Product number: BO5420262B

Description

The Square 12 reinforcement bar set is used to connect a fixed glass side panel to a wall. The glass connector is clamped onto the upper glass edge and, like the wall connector, is freely adjustable in angle.



Your Advantages

  • No glass processing required
  • Small inconspicuous design
  • Reinforcement bar can be cut to desired length
  • Wall connector angle adjustable
  • Glass connector angle adjustable

Technical details

Adjustable
Yes
Colour
Black
Degree of gloss
Matt
Glass thickness TSG
8 - 10 mm
Height
12 mm
Length
1,210 mm
Material
Brass
Mounting type
Glass-Wall
Package contents
1 Set
Product series
Square 12
Shape
Square
Surface
Cathodic coated (KTL)
Width
12 mm
Show all Show less

Scope of supply

1 Piece
Reinforcement bar
1 Piece
Adjustable glass connector
1 Piece
Adjustable wall connector

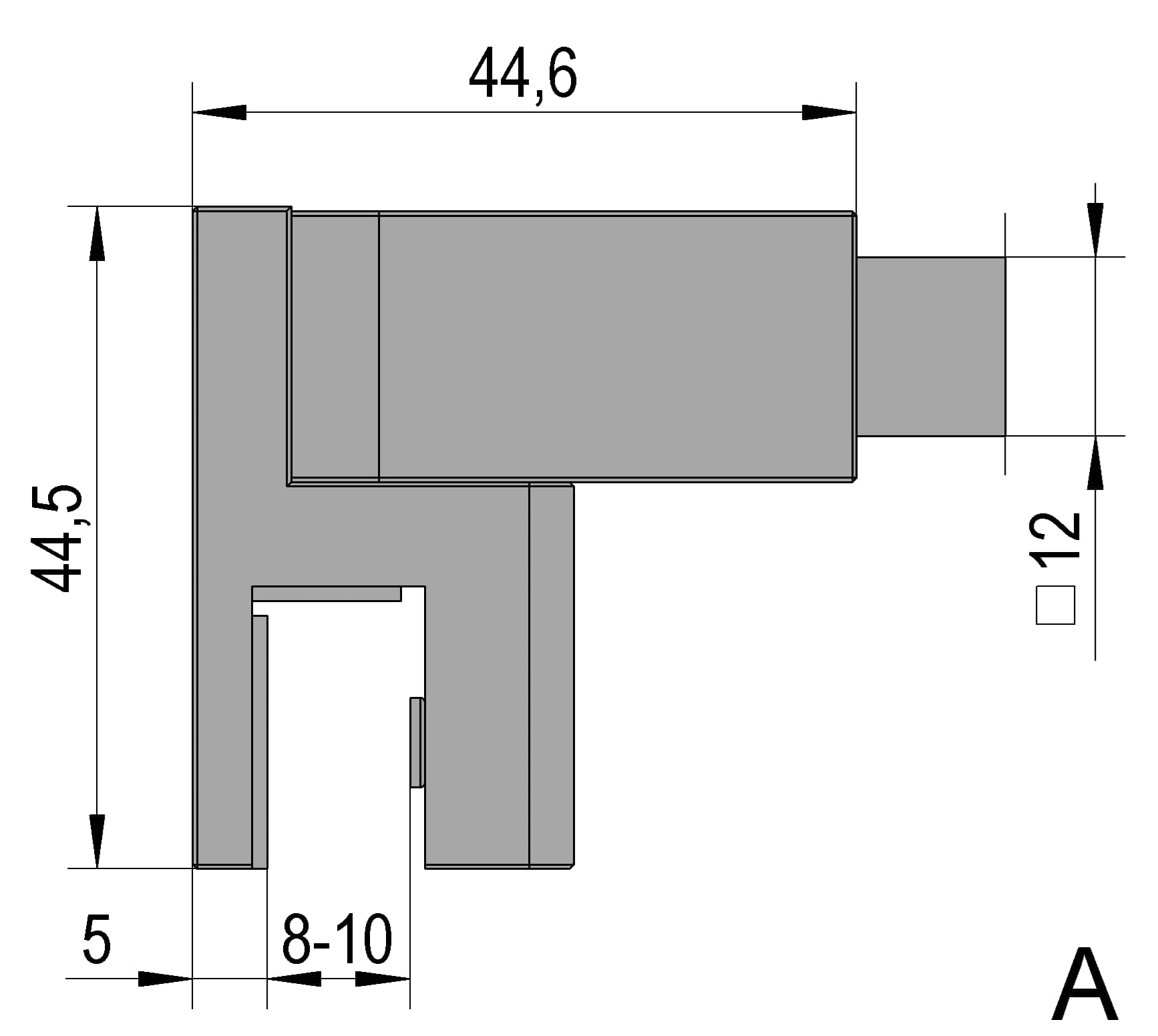

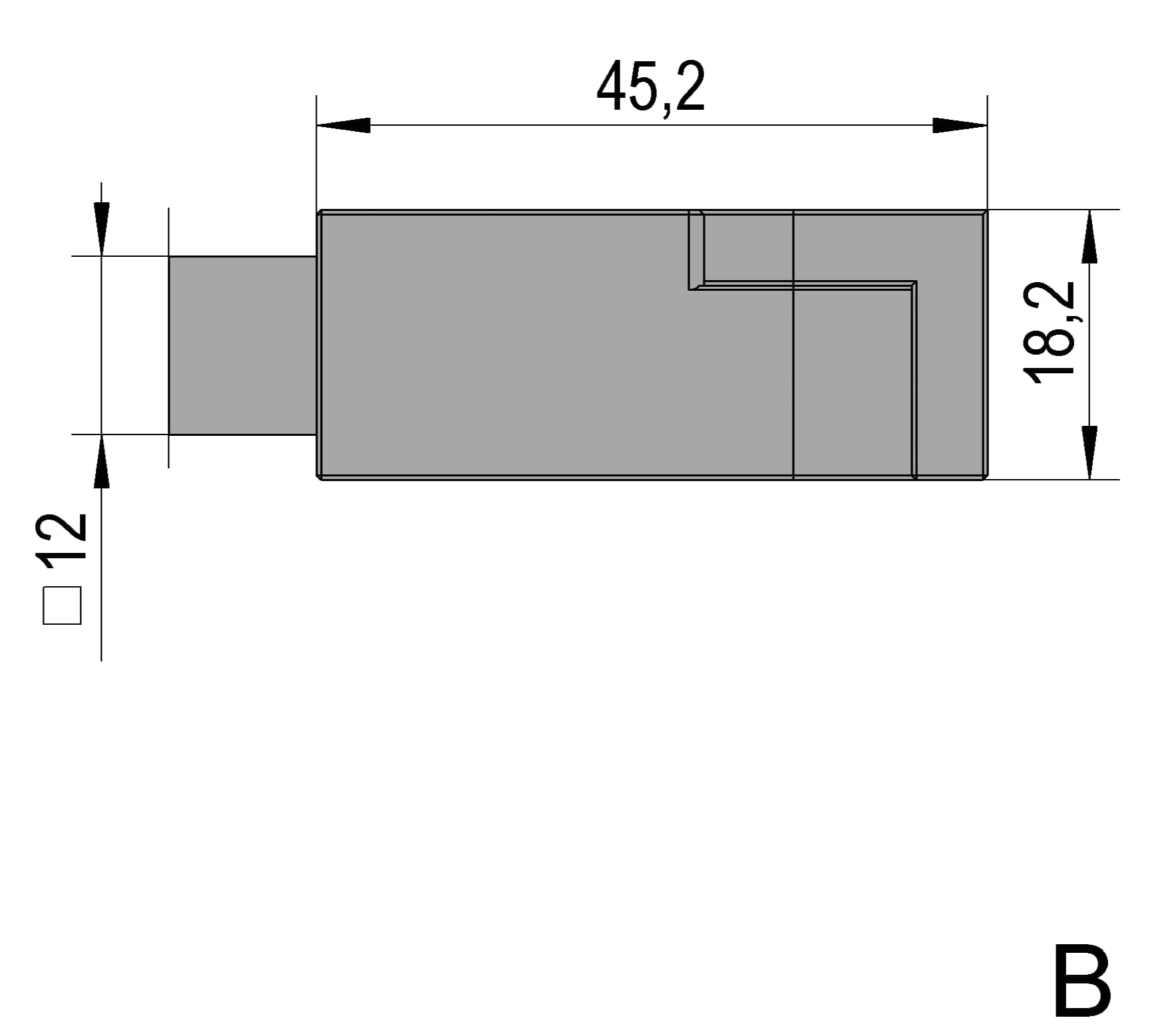

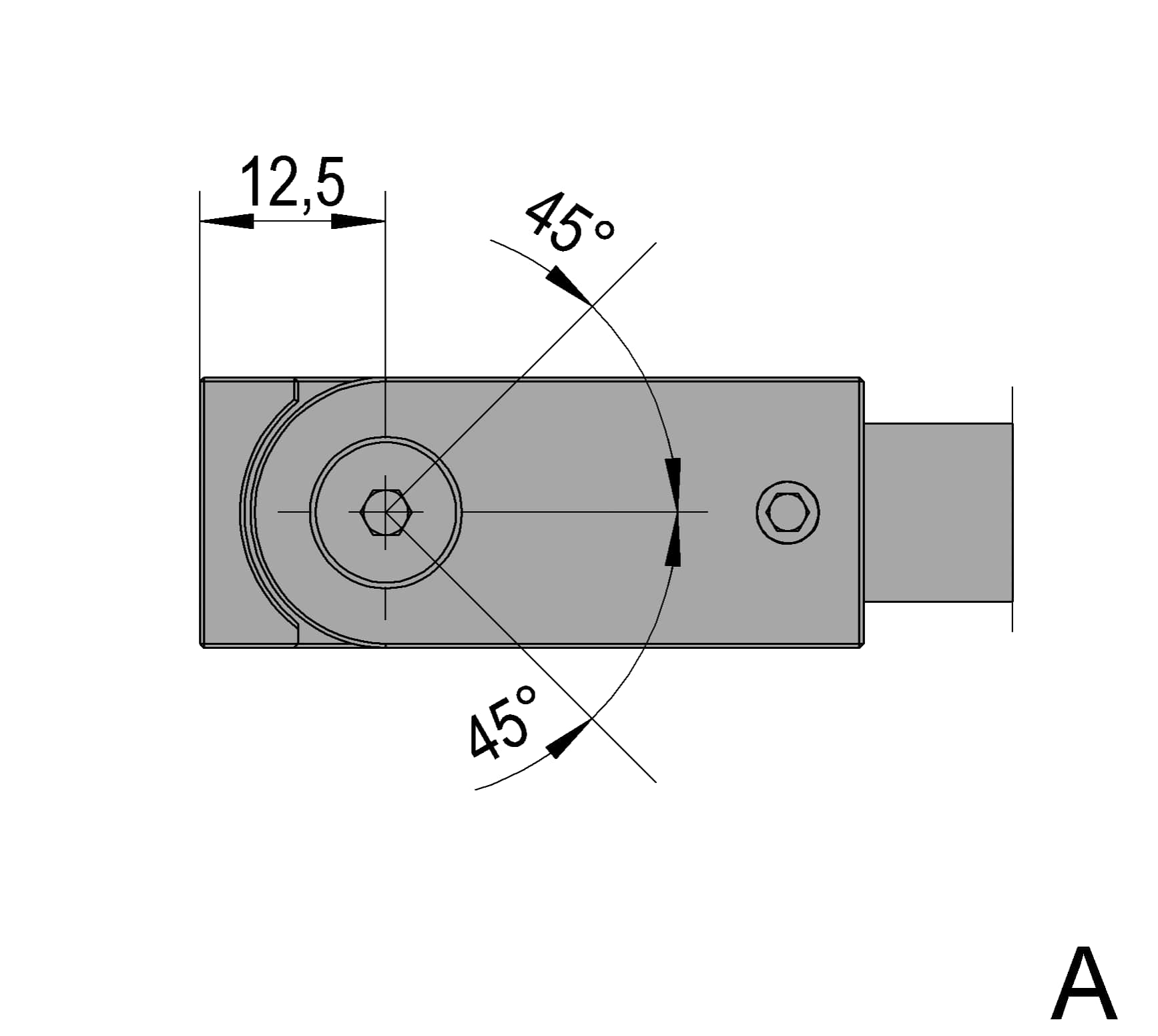

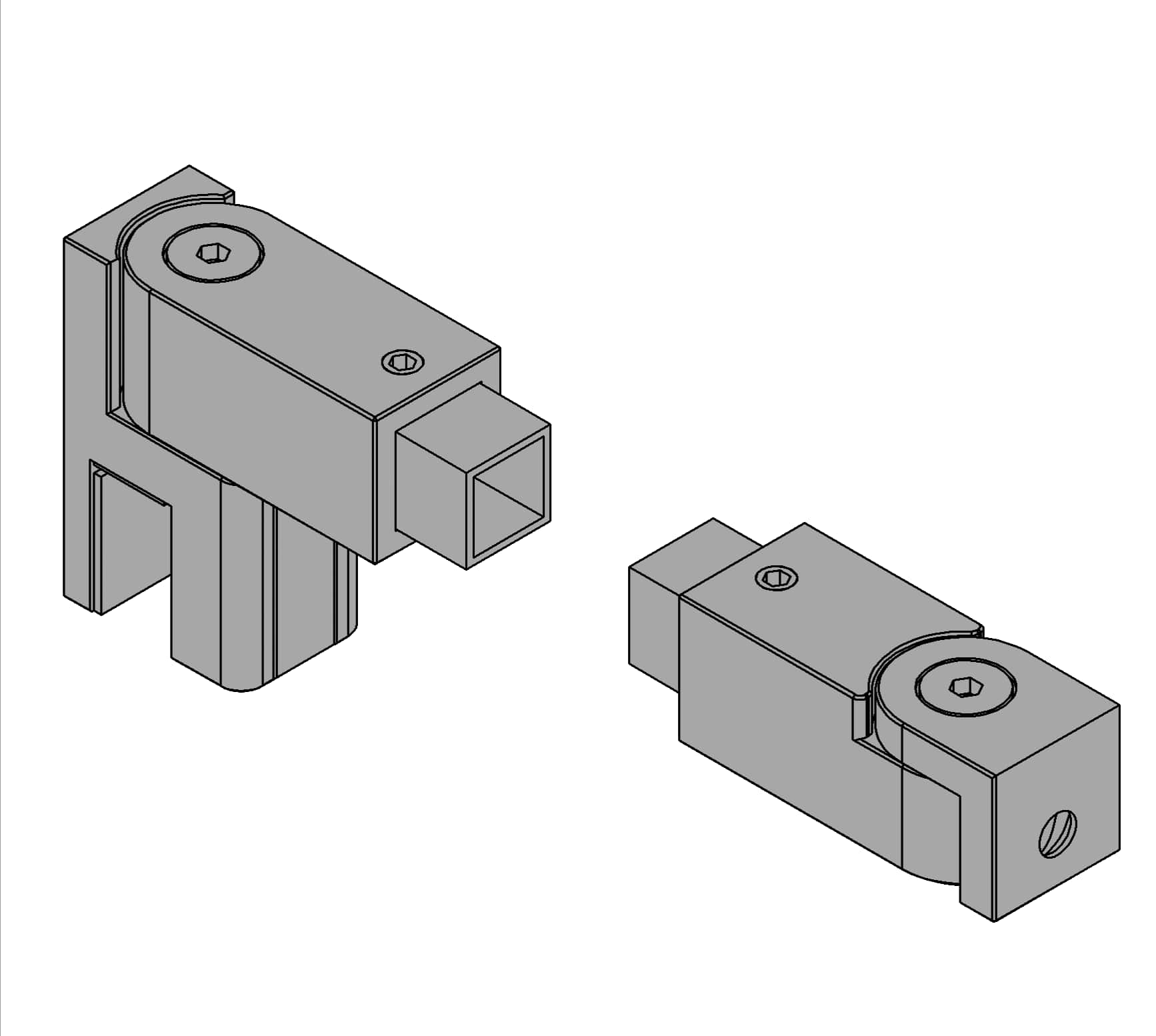

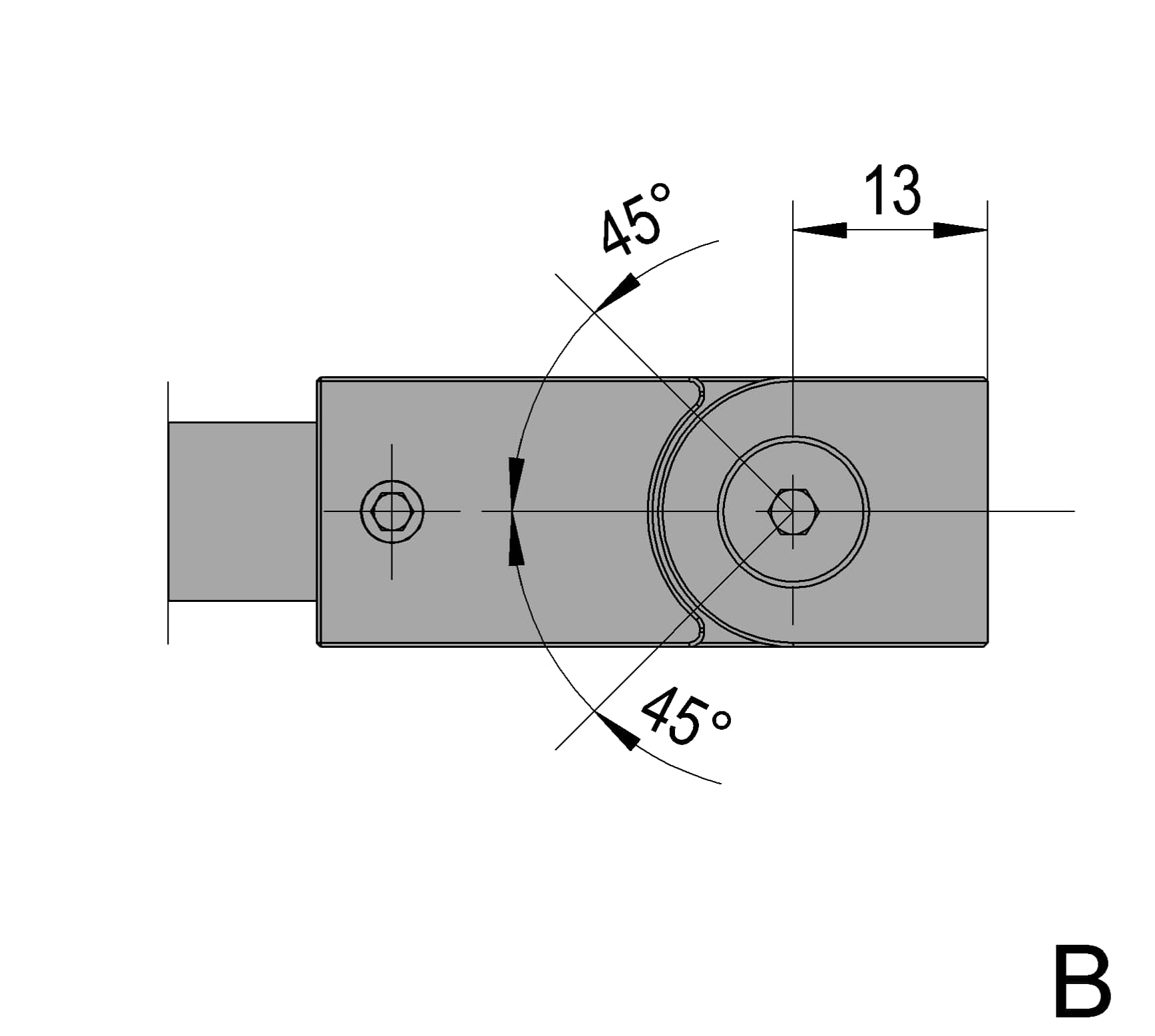

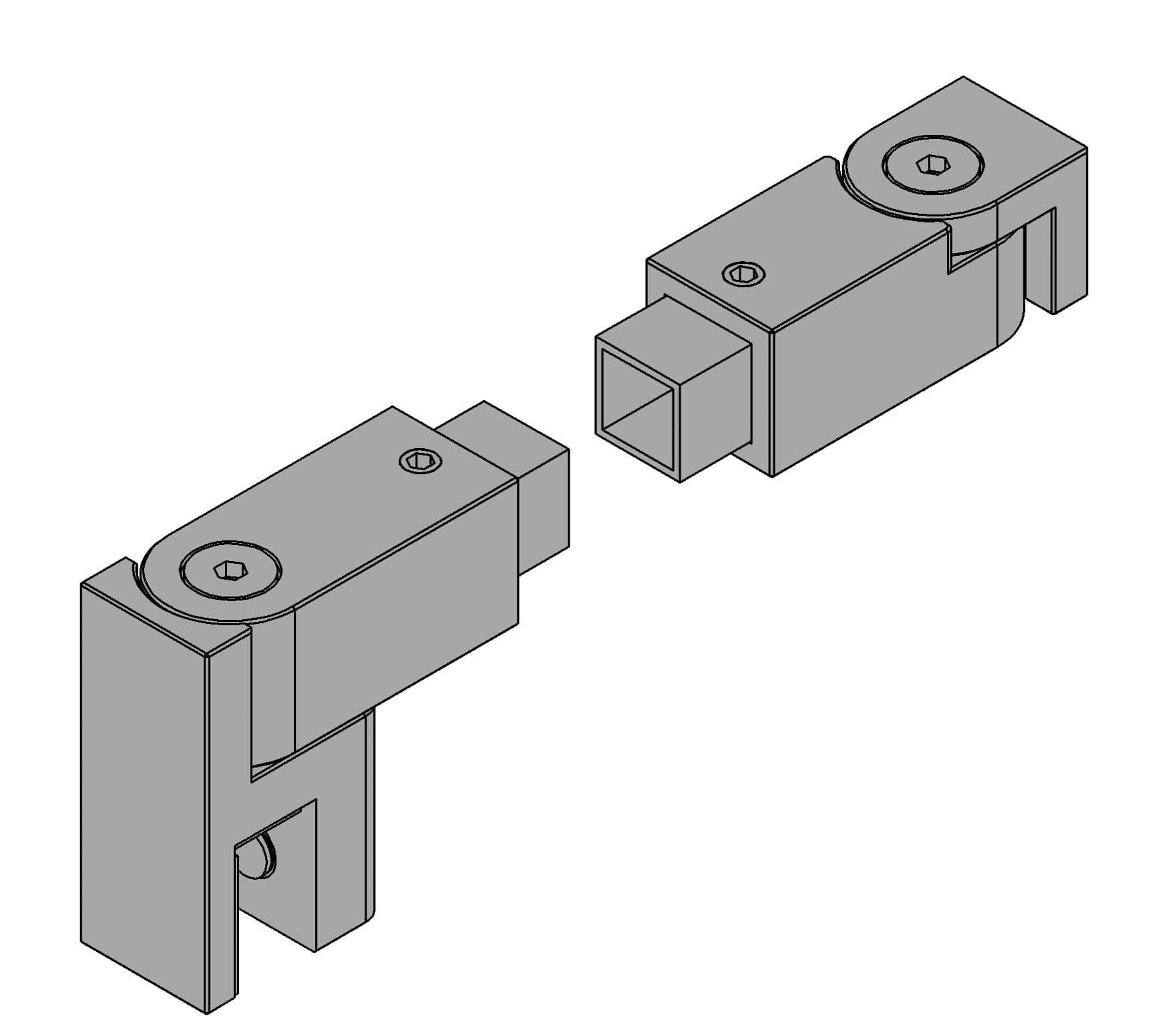

Drawings

jpg
jpg
jpg
