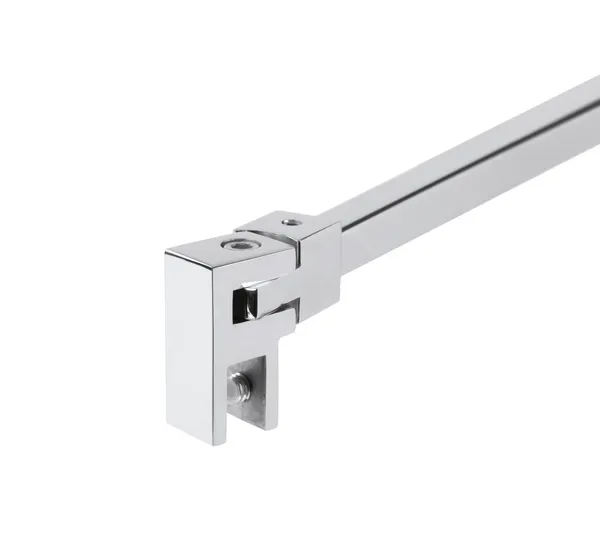

Reinforcement bar set Square 15 is used to connect a fixed glass side panel to a wall. The glass connector is clamped onto the upper glass edge and is freely adjustable in angle. The 45° wall connector is rigid.
Reinforcement bar set Square 15, glass-wall, 45°
Please to see prices.
Description
Your Advantages
- No glass processing required
- Small inconspicuous design
- Glass connector angle adjustable
- Reinforcement bar can be cut to desired length
Technical details
Adjustable
Yes
Colour
Stainless steel colour
Degree of gloss
Shiny
Glass thickness TSG
6 - 10 mm
Height
15 mm
Length
500 mm
Material
Stainless steel
Mounting bracket
45°
Mounting type
Glass-Wall
Package contents
1 Set
Product series
Square 15
Shape
Square
Surface treatment
Polished
Width
15 mm
Scope of supply
1 Piece
Reinforcement bar
1 Piece
Glass connector / end piece
1 Piece
Wall connection 45°
