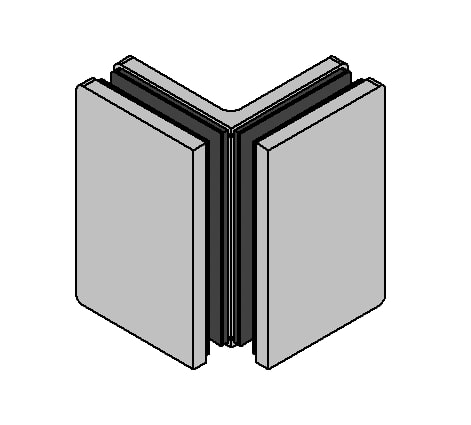

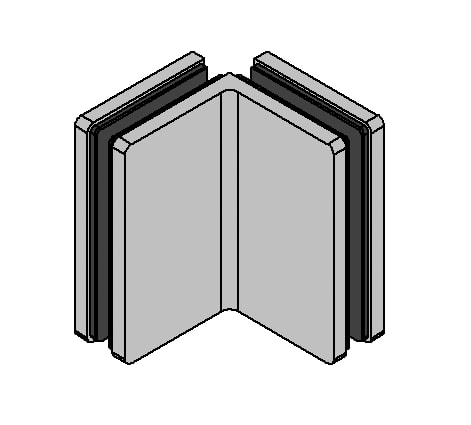

Santos angle connector, glass-glass 90°

Product number: BO5218432

Description

The 90° glass-glass Santos angle connectors make it possible to create a 90° glass corner connection, for example for a glass shower in a U-shape. Simple production of the glass as only glass drill holes are required.



About the product series Santos:
If you value elegant looks at a good price-performance ratio, the Santos shower door hinge range is just right for you. Santos combines durable materials and first-class design in a high-quality processed shower door hinge series. It includes three types of shower door hinges and two types of angle connectors. All are available in shiny chrome and black finishes.

Show all Show less

Your Advantages

  • Concealed screws
  • Many possible finishes
  • Efficient assembly with only one tool
  • Cover caps with clip technology

Technical details

Angle
90°
Degree of gloss
Shiny
Flush
No
Glass thickness TSG
8 - 10 mm
Material
Brass
Mounting type
Glass-Glass
Package contents
1 Pair
Product series
Santos
Rise/fall function
No
Screws on the belt concealed
Yes
Surface
Chrome-plated
Show all Show less

Scope of supply

1 Pair

Downloads

pdf
Instructions
Maintenance and Care Instructions
pdf
Instructions
BO52184xx - Santos - L-Bracket 90 - Instruction-Manual

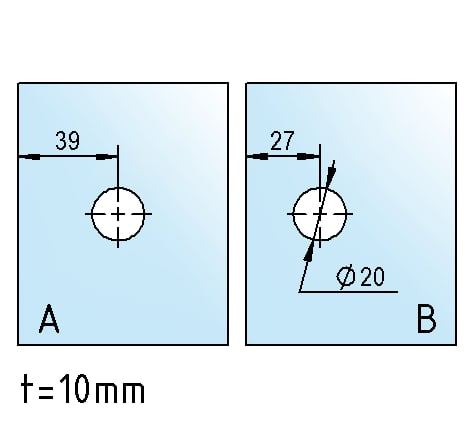

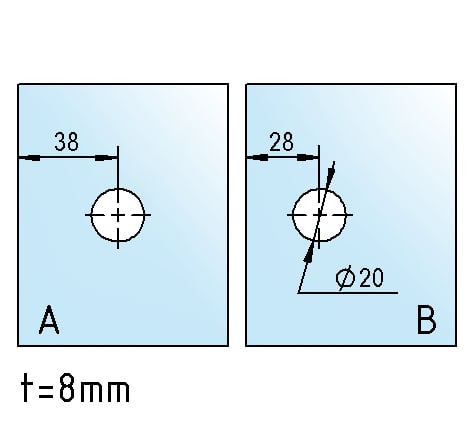

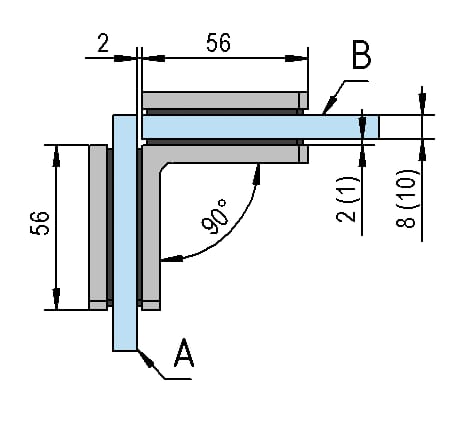

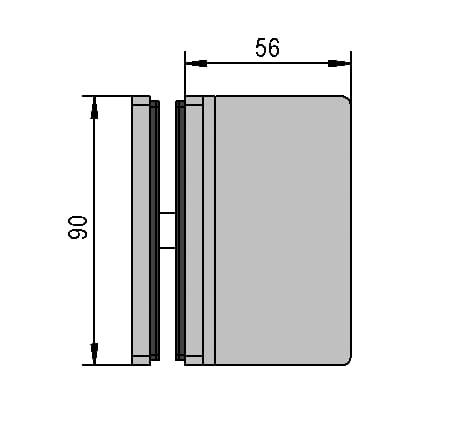

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
For more drawings please log in:
