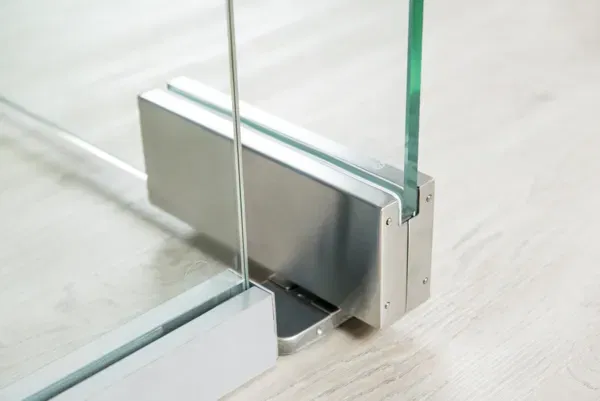

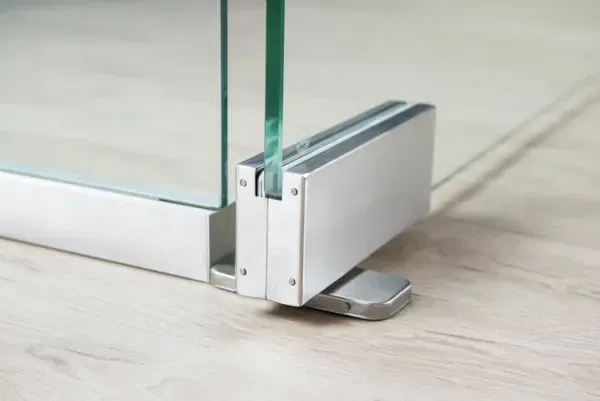

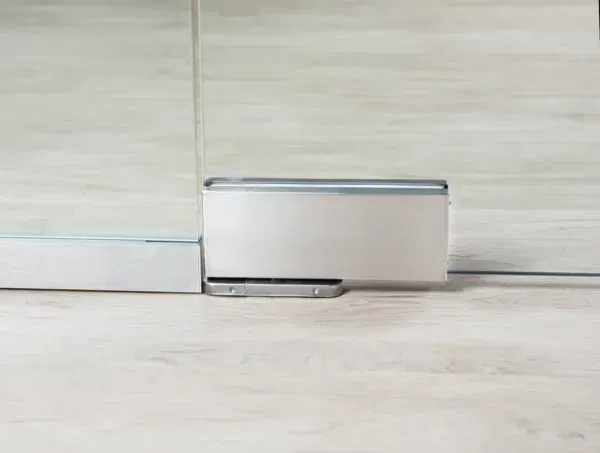

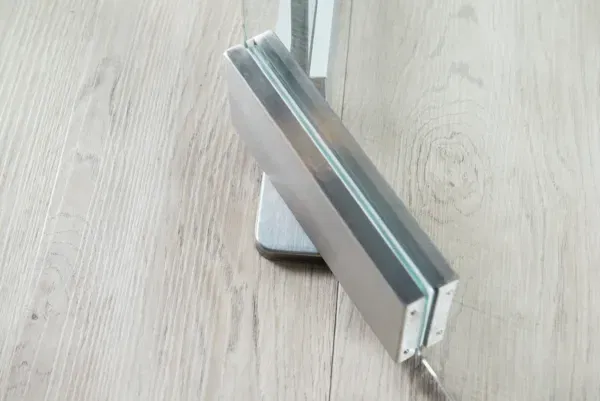

Self-closing corner fitting EN3 without hold-open

Product number: BO5214233

Description

The entire technology of the self-closing corner fitting is housed in the discreetly designed fitting itself.

In contrast to conventional floor springs, a floor recess is therefore not required. Installation is carried out by simply screwing the floor plate onto the existing substrate. The self-closing corner fitting from Bohle is tested in accordance with DIN EN 1154 to European standards for a long service life and outstanding functionality.

Application note:
Not to be used with laminated safety glass.

Your Advantages

  • Tested with 500,000 cycles according to DIN EN 1154
  • Use up to moderately busy buildings
  • Variable closing speed
  • Can be used with stop
  • Suitable for indoor and outdoor use
  • Not suitable for laminated safety glass
Show all Show less

Technical details

Colour
Stainless steel colour
Door height max.
2,500 mm
Door width
750 - 1,000 mm
Glass thickness TSG
8 - 12 mm
Material
Stainless steel V2A (AISI 304)
Package contents
1 Piece
Surface
Brushed

Downloads

pdf
Plannings Aids
Patch - Overview

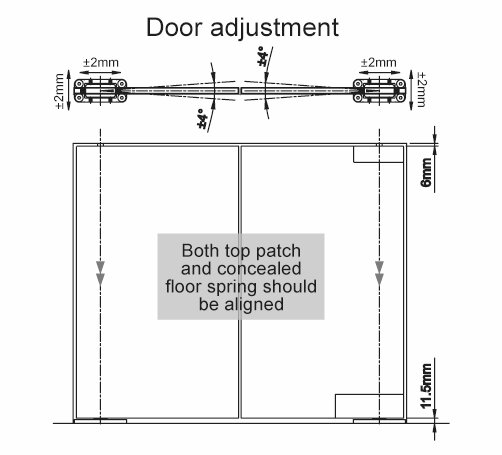

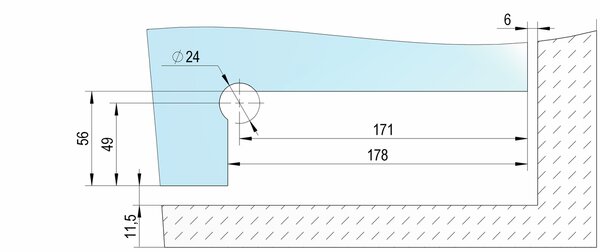

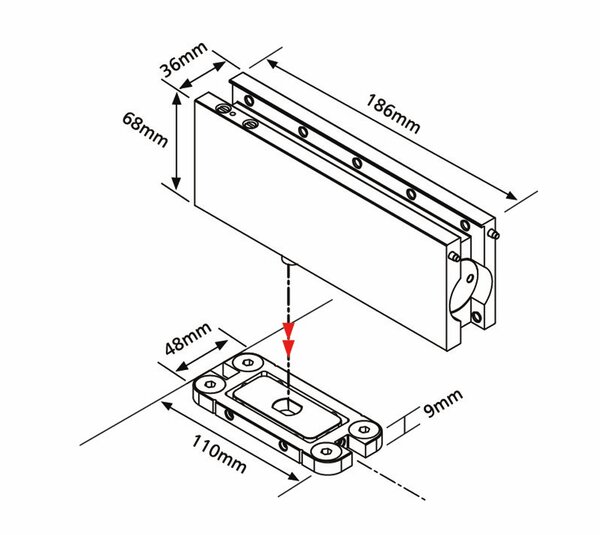

Drawings

jpg
jpg
jpg

Discover more

This might also interest you

+ 8 Variations

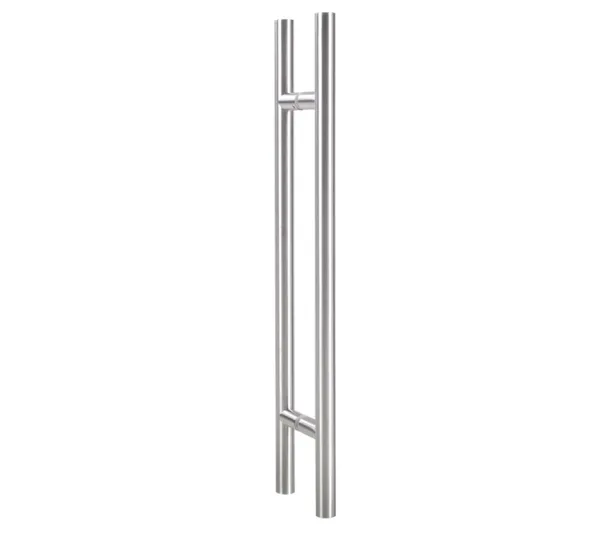

Bar handle, Ø 25 mm
