UV hand lamp 100 W

Product number: BO5500310

Description

Metal parts are efficiently bonded in furniture construction and shop fitting due to high performance. The special filter screen ensures safe working without dangerous UV-B and UV-C radiation. Suitable for all Bohle UV adhesives.

The radiator reaches full power after a few minutes of warm-up. If it is switched off, it cannot be switched on again until it has cooled down. It is therefore advisable to leave the lamp switched on until the planned bonding has been carried out.

The service life of the lamp is approx. 1000 hours.

Application note:
Observe the operating instructions and the relevant technical guidelines and standards. The hand-held lamp becomes very hot during operation. Adhere to optimum curing times to avoid damage to the bond

Your Advantages

  • Suitable for serial glass-metal bonding
  • Short curing times due to high performance
  • Suitable for all Bohle UV adhesives
  • Safe working due to special filter screen

Technical details

Colour
Silver colour
Electr. power
100 W
Electr. voltage
230 V

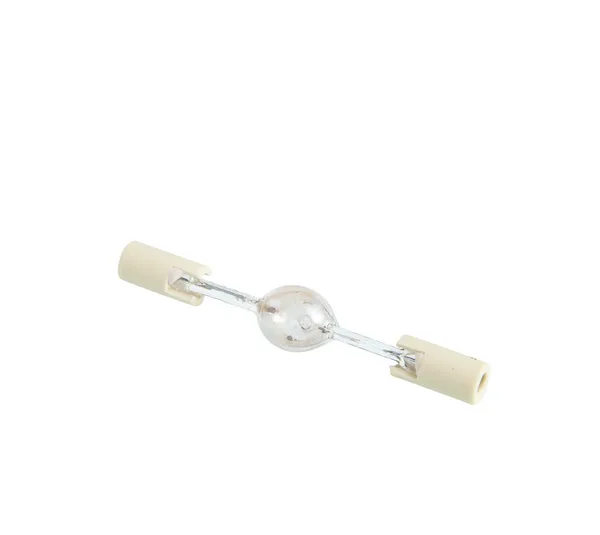

Lamp type
Halogen
Package contents
1 Piece
Radiation intensity
100 mW/cm²
Service life of fluorescent tube
1,000 Hours
Wavelength
365 - 395 nm

Downloads

pdf
Technical data sheets
Richtwerte Intensität Leuchtmittel - Values Intensity UV-lights
