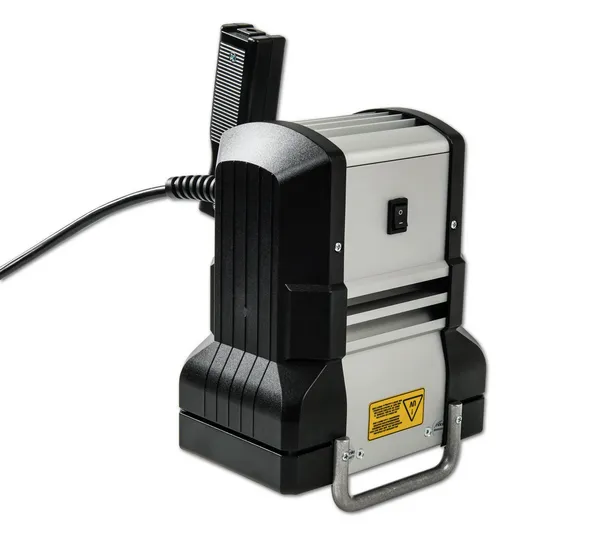

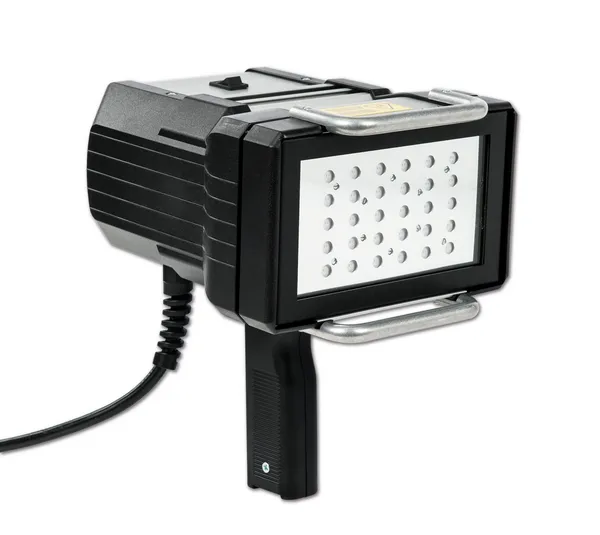

UVA LED hand-held lamp 365 nm

Product number: BO5500358

Description

Metal parts are efficiently bonded in furniture construction and shop fitting thanks to high performance. LED technology saves energy and spare parts costs. The hand-held lamp does not dazzle or get hot. Comfortable working is guaranteed. It can be connected to all common power grids worldwide.

In terms of housing, the lamp corresponds to the classic UVA HAND 250 halogen lamp. The light source is now a high-quality LED panel. This means that the lamp now offers all the advantages of LED technology. On/off operation, long lamp life and significant energy savings. The bulky ballast is no longer necessary. This makes the rather heavy lamp more pleasant to handle. Due to its radiation field, the hand-held lamp is also suitable for curing edge bonding up to 40 cm in length. If the lamp is positioned at an appropriate distance, uniform curing is guaranteed.

Show all Show less
Not suitable for laminated safety glass or UV-impermeable glass. The service life of the lamp is approx. 20,000 hours.

Application note:
Observe the operating instructions and the relevant technical guidelines and standards

Your Advantages

  • ON/OFF operation without warm-up and cool-down phase
  • No damage to the bond due to overheating
  • Power-saving
  • ON/ OFF and continuous operation possible
  • Easier handling without ballast
  • Short curing times due to high performance
  • Suitable for bonding metal with float glass and toughened glass
Show all Show less

Technical details

Cable length
2.8 m
Electr. power
70 W
Electr. voltage
110 - 230 V
Lamp type
LED
Length
180 mm
Length radiation field
250 mm
Package contents
1 Piece
Radiation intensity
130 mW/cm²
Range radiation field
250 mm
Service life of fluorescent tube
20,000 Hours
Wavelength
365 nm
Weight
1.9 kg
Width
112 mm
Show all Show less

Downloads

pdf
Instructions
BO5500358 - UVA-LED-hand lamp - Instruction Manual
pdf
Technical data sheets
Richtwerte Intensität Leuchtmittel - Values Intensity UV-lights

Discover more

Similar products

+ 5 Variations
UVA hand-held lamp UVAHAND 250 White light
Art. no.: BO5209404
  • Lamp type: Halogen
  • Radiation intensity: 200 mW/cm²
  • Wavelength: 365 - 395 nm
+ 5 Variations

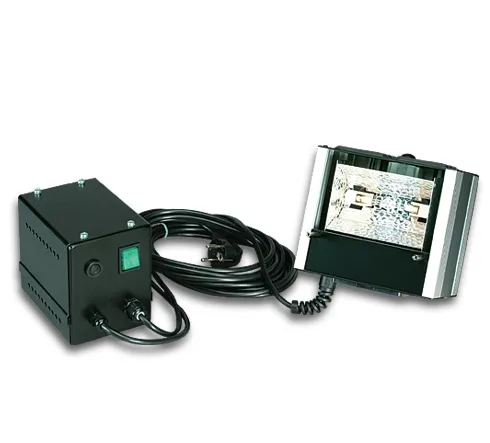

UV hand lamp 100 W
