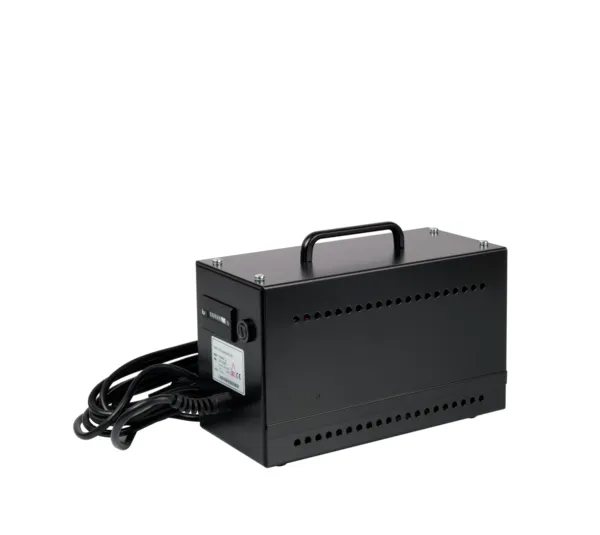

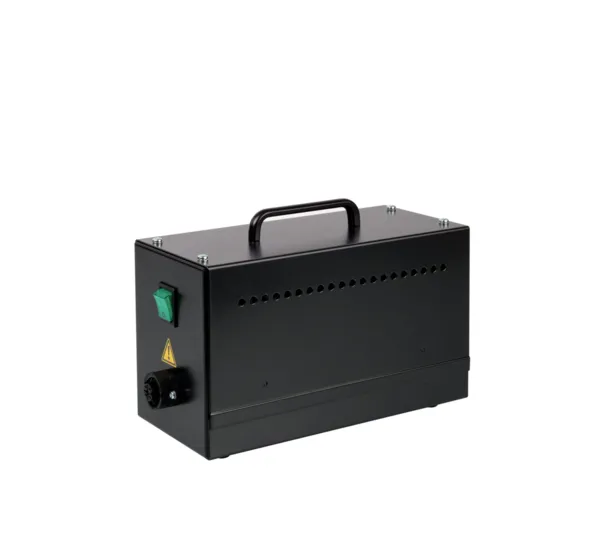

UVA hand-held lamp UVAHAND 250 White light

Product number: BO5209404

Description

Due to the high performance of the UVA hand lamp, metal parts can be efficiently bonded in furniture construction and shop fitting. The special filter screen ensures safe working without dangerous UV-B and UV-C radiation. Suitable for all Bohle UV adhesives

The integrated operating hours counter helps to check the life expectancy of the lamp, as the loss of UV power is not visually detectable. The lamp reaches full output after a few minutes of warm-up. If it is switched off, it cannot be switched on again until it has cooled down. It is therefore advisable to leave the lamp switched on until the planned bonding has been carried out. Due to its radiation field, the hand-held lamp is also suitable for curing edge bonding up to 40 cm in length. If the lamp is positioned at an appropriate distance, uniform curing is guaranteed.

Show all Show less
The service life of the lamp is approx. 1000 hours.

Application note:
Observe the operating instructions and the relevant technical guidelines and standards. The hand-held lamp becomes very hot during operation. Adhere to optimum curing times to avoid damage to the bond

Your Advantages

  • Suitable for serial glass-metal bonding
  • Short curing times due to high performance
  • Suitable for all Bohle UV adhesives
  • Safe working due to special filter screen

Technical details

Cable length
2.4 m
Electr. power
250 W
Electr. voltage
230 V
Lamp type
Halogen
Length radiation field
250 mm
Package contents
1 Piece
Radiation intensity
200 mW/cm²
Range radiation field
250 mm
Service life of fluorescent tube
1,000 Hours
Wavelength
365 - 395 nm

Downloads

pdf
Instructions
BO5209404 UVAHAND 250 - Instruction Manual
pdf
Technical data sheets
Richtwerte Intensität Leuchtmittel - Values Intensity UV-lights
