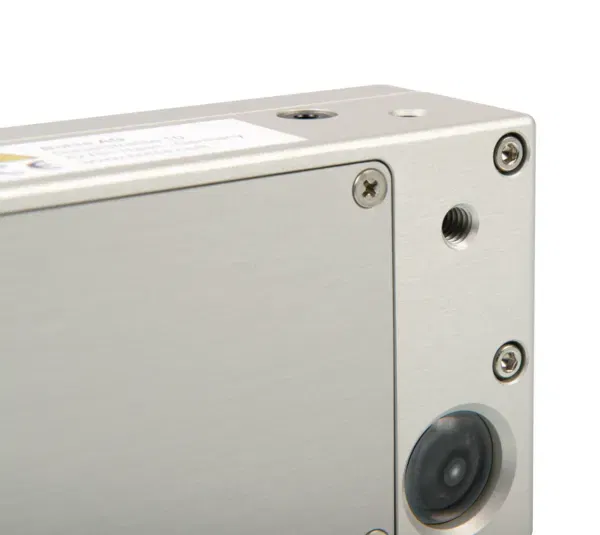

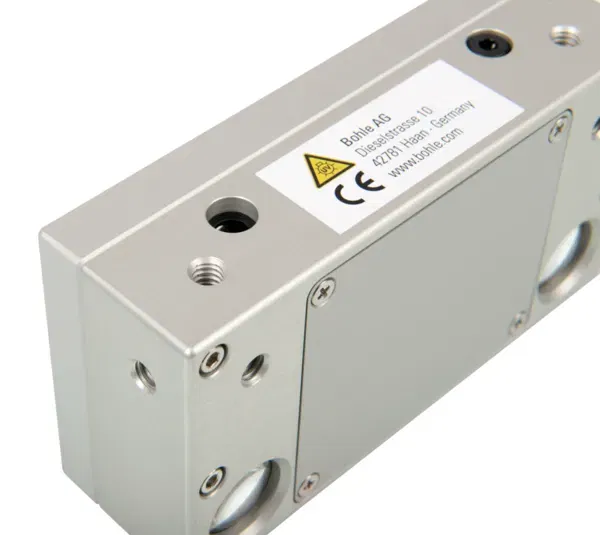

Verifix® TwinLED

Product number: BO5500355

Description

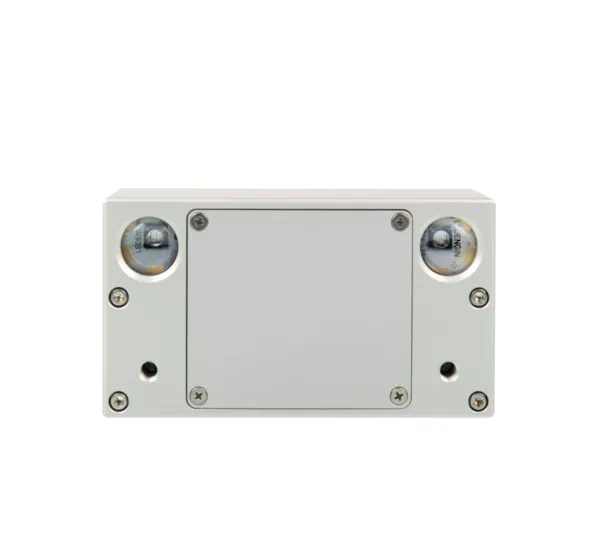

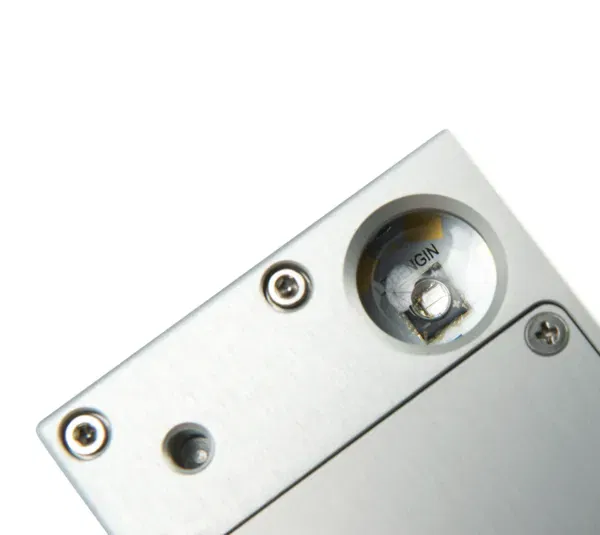

Compact dimensions with high performance ensure fast bonding. The long-lasting battery allows flexible working. No need to change lamps thanks to two high-performance LED spots for UV light and visible light.

Hinges and fittings in showcase or furniture construction can be conveniently bonded by the TwinLED even in hard-to-reach places.
The TwinLED is only switched on when it is used because it provides full power immediately. Warm-up and cool-down phases are not necessary. The integrated timer makes it easier to adhere to curing times. The lamp can be mounted on suitable camera tripods for easy positioning. In this way, the light cone is perfectly aligned.

The battery lasts for two hours of LED burning time.

Application note:
Observe the operating instructions and the relevant technical guidelines and standards.

Your Advantages

  • Battery-operated, therefore not tied to a fixed workplace
  • Short curing times due to high performance
  • Suitable for all Bohle UV adhesives
  • Process reliability through programmable curing times
  • Very good price-performance ratio
  • Suitable for bonds with a diameter of up to 100 mm
  • ON/OFF operation without warm-up and cool-down phase
Show all Show less

Technical details

Diameter radiation field
120 mm
Lamp type
LED
Length
125 mm
Material
Aluminium
Package contents
1 Piece
Radiation intensity
200 mW/cm²
Service life of fluorescent tube
20,000 Hours
Wavelength
365 - 395 nm
Weight
600 g
Width
70 mm

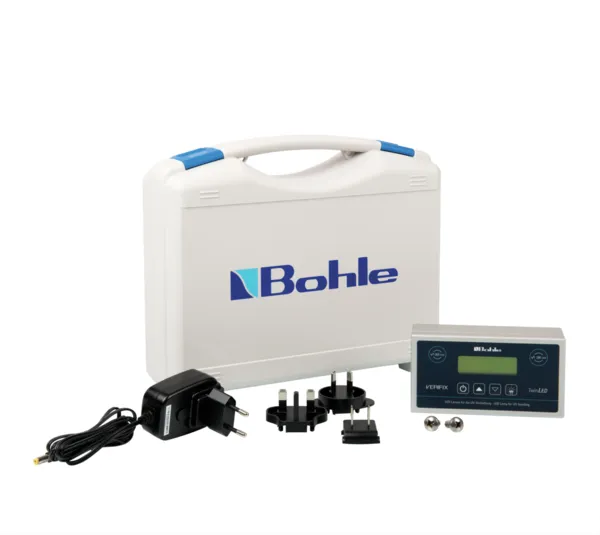

Scope of supply

1 Piece
Battery pack (inserted)
1 Piece
Plug-in power supply unit
1 Piece

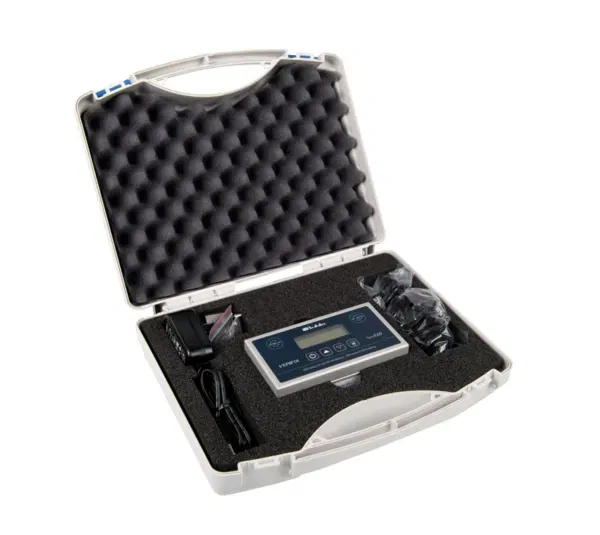

UV lamp in case with foam inlay

Downloads

pdf
Instructions
BO5500355 - Verifix® TwinLED - Instruction Manual
pdf
Technical data sheets
Richtwerte Intensität Leuchtmittel - Values Intensity UV-lights
