Vitreasy 009 furniture corner hinges require no glass processing and are therefore perfect for retrofitting. They are equipped with a tumbler for greater ease of use.
Hettich
Vitreasy 009 Furniture corner hinge, glass-wood
Please to see prices.
Description
Your Advantages
- No glass processing required
- With integrated guard locking

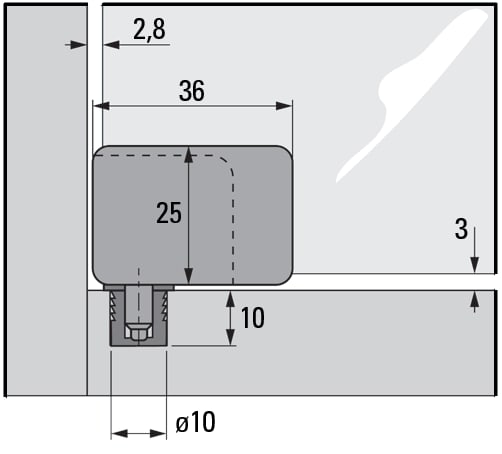

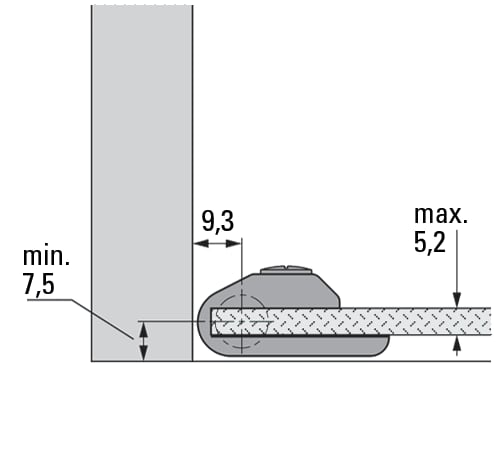

Technical details
3D adjustability
No
Colour
Stainless steel colour
Degree of gloss
Matt
Door height
1,000 mm
Door type
Stop door
Door width
500 mm
Fastening type
Clamped
Flush
No
Glass processing required
No
Glass thickness
4 - 5 mm
Height
25 mm
Material
Zinc die casting
Max. door weight per pair
6 kg
Mounting type
Glass-wood
Opening angle
105°
Opening direction
DIN right and DIN left
Package contents
1 Pair
Product series
Vitreasy 009
Shape
Square
Width
36 mm
