safemax® 08 mirror mounting set

Product number: BO5208228

Description

safemax® supplies mirror plates and fixing accessories ready-packed in a set. Mirrors can be fixed invisibly and can be unhooked at any time. The Xtramount® adhesive tape used is high quality and durable. Special tools are not required for mounting

Without visible and therefore distracting fastening, mirrors are shown to best advantage
The height of the mirror can be adjusted using the eccentric discs. Magnets prevent the mirror from unintentional movement.
Universal dowels and screws are included in the set. Depending on the surface, these may need to be replaced with special fixing accessories

Not suitable for use on splinter protection films or adhesive tapes. These must be removed in the area of the plates

Application note:
Observe the processing instructions and the relevant technical guidelines and standards. Not suitable for outdoor use. Use only one set per mirror.

Your Advantages

  • Highest product standards thanks to Bohle as a certified specialist bonding company
  • Quick and easy assembly
  • Suitable for a mirror size of up to 0.8 m² with a total weight of 12 kg
  • Mounting accessories included
  • Suitable for mirrors manufactured according to DIN EN 1036
  • Mirror removable
  • Suitable for mounting in the bathroom
  • Invisible fastening
Show all Show less

Technical details

Durability
See label
Load capacity
12 kg
Mirror removable
Yes
Mirror size
0.8 m²
Mirror thickness
5 - 6 mm
Package contents
1 Set
Self-adhesive
Yes
Storage information
Protect from high temperatures, Protect from sunlight, Store dry
Suitable for
Mirrors according to DIN EN 1036
Suitable for damp locations
Yes
Un-hinge protection
Magnet
Wall distance
14 mm
Show all Show less

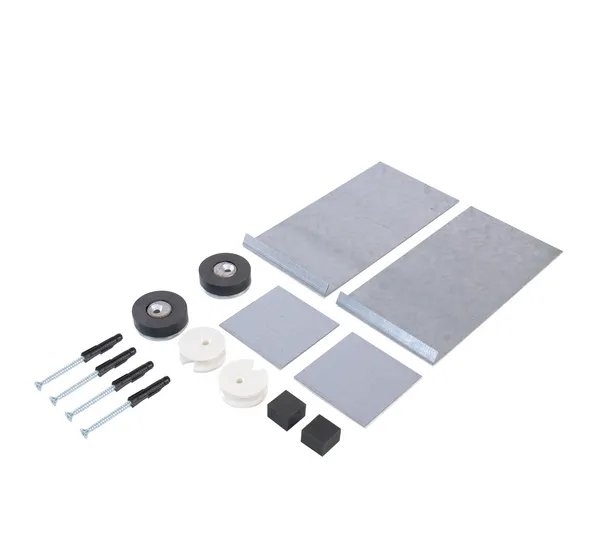

Scope of supply

2 Pieces
Mirror plates 100 x 100 mm with Xtramount® adhesive tape
2 Pieces
Adhesive sheets 70 x 70 mm with Xtramount® adhesive tape
2 Pieces
Eccentric discs
2 Pieces
Holding magnets ø 45 mm
2 Pieces
Spacer
4 Pieces
Screws ø 4 x 50 mm
4 Pieces
Multi-purpose plug ø 6 x 36 mm
1 Piece
Assembly instructions

Downloads

pdf
Instructions
BO5208228-BO5208230 - safemax® 08 - safemax® 16 - Instruction Manual
pdf
Technical data sheets
Notes on the durability of Bohle mirror sheets
